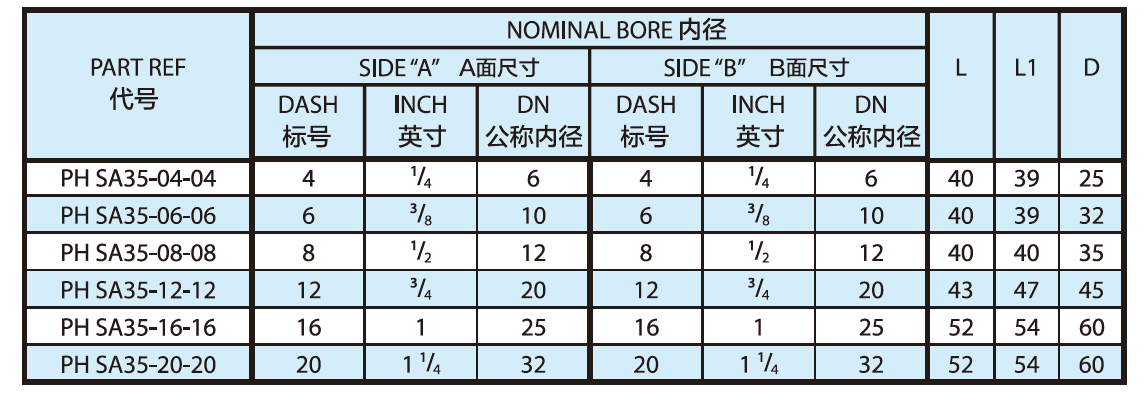

PART REF
代号NOMINAL BORE内径 L L1 D SIDE “A” A面尺寸 SIDE “B” B面尺寸 DASH
标号INCH
英寸DN
公称内径DASH
标号INCH
英寸DN
公称内径PH SA35-04-04 4 1/₄ 6 4 /₄ 6 40 39 25 PH SA35-06-06 6 3/₈ 10 6 3/8 10 40 39 32 PH SA35-08-08 8 1/₂ 12 8 1/₂ 12 40 40 35 PH SA35-12-12 12 3/4 20 12 3/4 20 43 47 45 PH SA35-16-16 16 1 25 16 1 25 52 54 60 PH SA35-20-20 20 1'/₄ 32 20 11/₄ 32 52 54 60

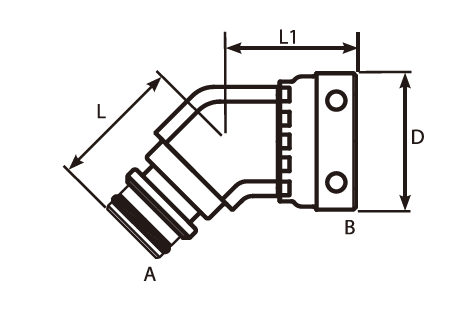

PEHEL / SA35 / Hydraulic 135° Staple Male- Swivel Female Adaptor
PEHEL Hydraulic Model: Series SA35
QTY:
Hydraulic Durable 135° Staple lock Male- Swivel Female Adaptor
Material: Carbon steel
Surface Treatment: White Zinc Plating
Brand: PEHEL, OEM
Type: 135°
About the item:
1. Staple lock design enables quick, tool-free connection and disconnection in confined spaces.
2. Superior corrosion-resistant surface treatment ensures reliable performance in harsh mining environments.
3. Precision-engineered staple profile enhances impulse life and connection safety significantly.
4. Available in stainless and carbon steel from DN6 to DN76 for versatile system compatibility.
5. Meets DIN 20043 and ISO 9001 standards for guaranteed quality and hydraulic circuit reliability.
