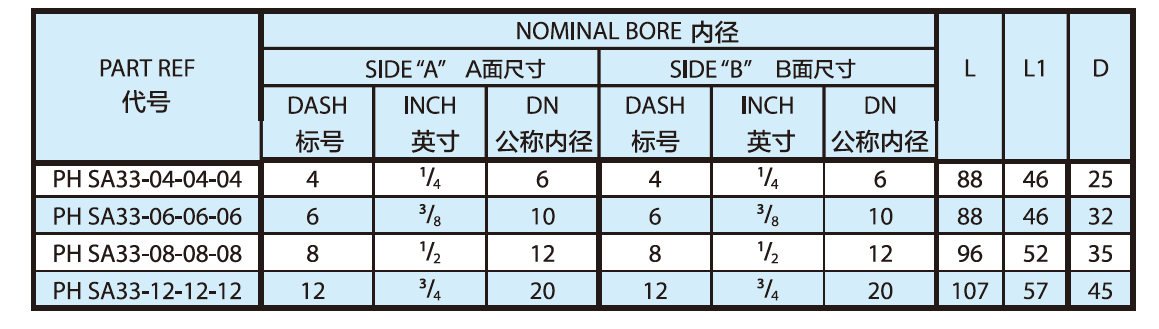

PART REF 代号
NOMINAL BORE 内径
L
L1
D
SIDE "A" A 面尺寸
SIDE "B" B 面尺寸
DASH 标号
INCH 英寸
DN 公称内径
DASH 标号
INCH 英寸
DN 公称内径
PH SA33-04-04-04
4
1/4
6
4
1/4
6
88
46
25
PH SA33-06-06-06
6
3/8
10
6
3/8
10
88
46
32
PH SA33-08-08-08
8
1/2
12
8
1/2
12
96
52
35
PH SA33-12-12-12
12
3/4
20
12
3/4
20
107
57
45

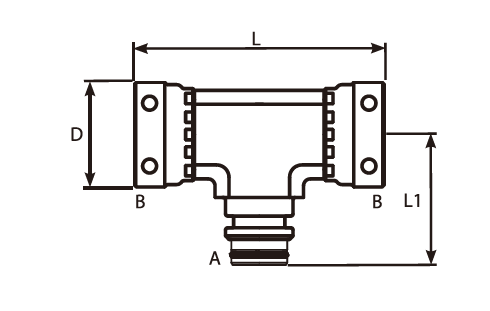

High Pressure Staple Male T-Shape Swivel Female Hydraulic Joint
PEHEL Hydraulic Model: Series SA33
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
- 1.This Staple Male T Swivel Female Adaptor adopts T three-way design, convenient for shunting mining hydraulic pipeline fluid.
- 2.Made of carbon steel or stainless steel with silver zinc plating, this staple hydraulic fitting delivers outstanding anti-corrosion performance.
- 3.Rotatable swivel female end of staple T adapter avoids hose twisting, greatly simplify hydraulic equipment installation work.
- 4.Strictly follow staple connection industry standard, this high pressure staple joint supports stable sealing under mine heavy load.
- 5.Support Pehel brand supply and full OEM customization, complete thread sizes of staple male T swivel female adaptor in stock.
