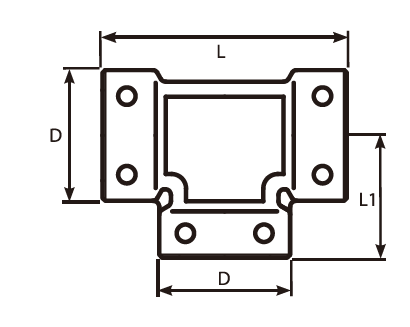

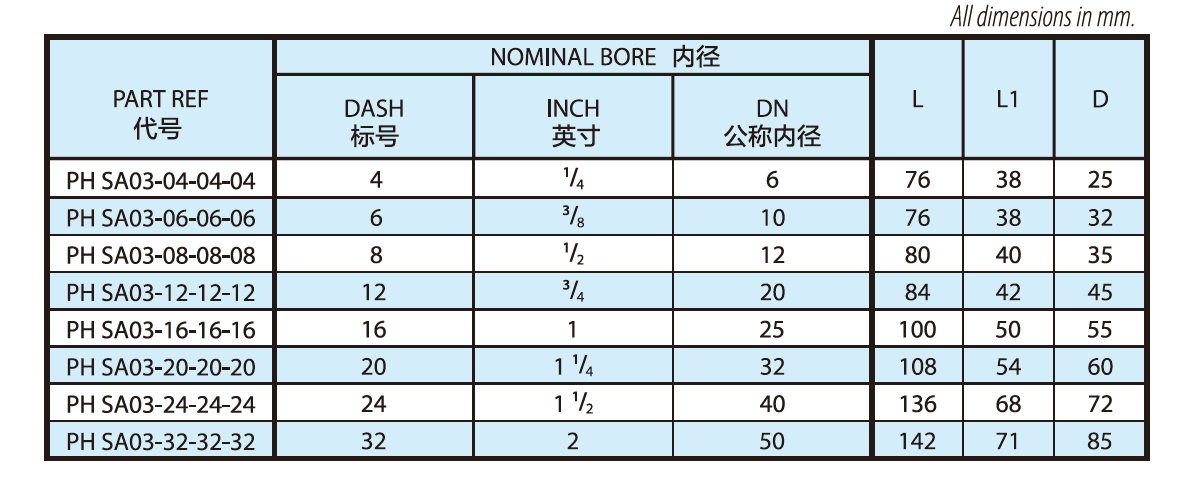

PART REF 代号 DASH 标号 INCH 英寸 DN 公称内径 L L1 D PH SA03-04-04-04 4 1/4 6 76 38 25 PH SA03-06-06-06 6 3/8 10 76 38 32 PH SA03-08-08-08 8 1/2 12 80 40 35 PH SA03-12-12-12 12 3/4 20 84 42 45 PH SA03-16-16-16 16 1 25 100 50 55 PH SA03-20-20-20 20 1 1/4 32 108 54 60 PH SA03-24-24-24 24 1 1/2 40 136 68 72 PH SA03-32-32-32 32 2 50 142 71 85
PEHEL | T Piece Staple Female Adaptor| Custom Service Supported
PEHEL Hydraulic Model: Series SA03
QTY:
1. All threads inspected by go/no-go gauges, smooth assembly without thread slipping
2. DIN/SAE/BSP Multi-standard threads (DIN/SAE/BSP), compatible with all types of mining high-pressure hoses
3. Various elbows, tees & special shapes for flexible piping in narrow mine tunnels
