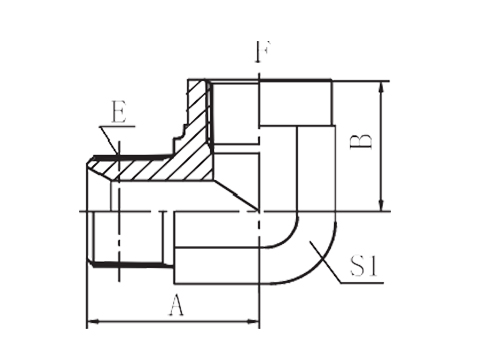

THREAD DIMENSIONS PART NO. E F A B S1 5N9-02 Z1/8"X27 Z1/8"X27 24.5 17.8 16 5N9-04-02 Z1/4"X18 Z1/8"X27 26.5 16.8 16 5N9-04 Z1/4"X18 Z1/4"X18 28 22.4 19 5N9-04-06 Z1/4"X18 Z3/8"X18 31 25 24 5N9-06-04 Z3/8"X18 Z1/4"X18 31 22.4 19 5N9-06 Z3/8"X18 Z3/8"X18 33.5 25 24 5N9-08 Z1/2"X14 Z1/2"X14 41.2 31.2 30 5N9-12-08 Z3/4"X14 Z1/2"X14 45 31.2 30 5N9-12 Z3/4"X14 Z3/4"X14 45.2 34.5 33 5N9-16 Z1"X11.5 Z1"X11.5 54.5 41.1 41 5N9-20 Z1.1/4"X11.5 Z1.1/4"X11.5 63 43.2 48 5N9-24 Z1.1/2"X11.5 Z1.1/2"X11.5 71.5 52.8 63 5N9-32 Z2"X11.5 Z2"X11.5 73.5 62 65

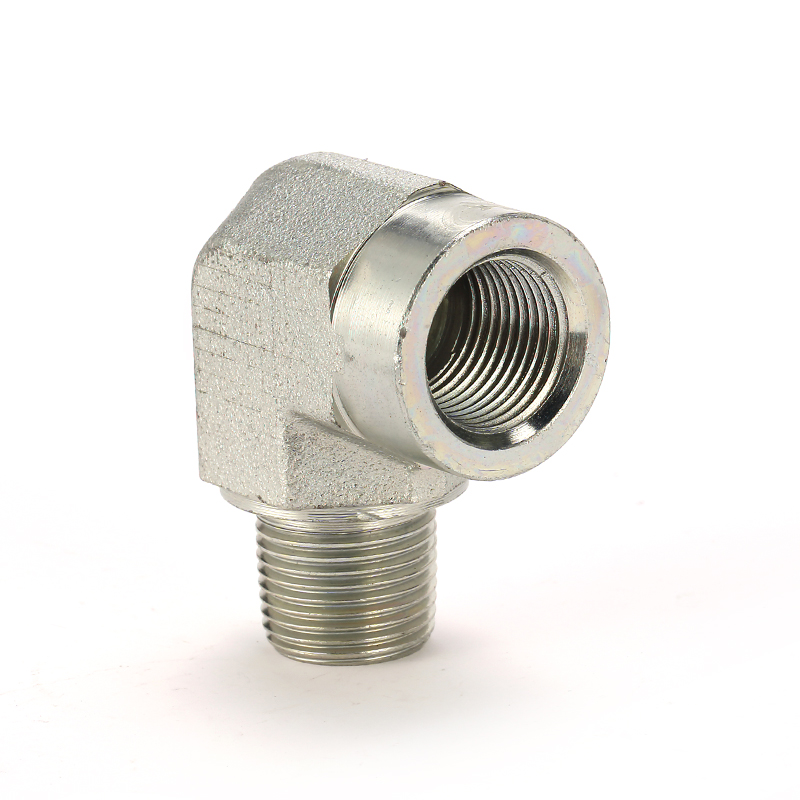

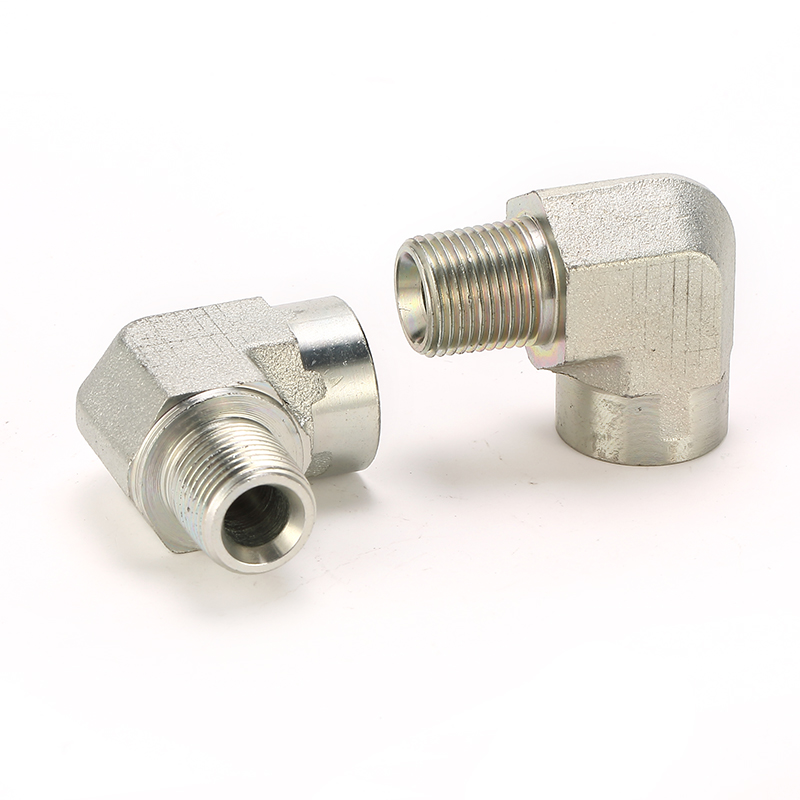

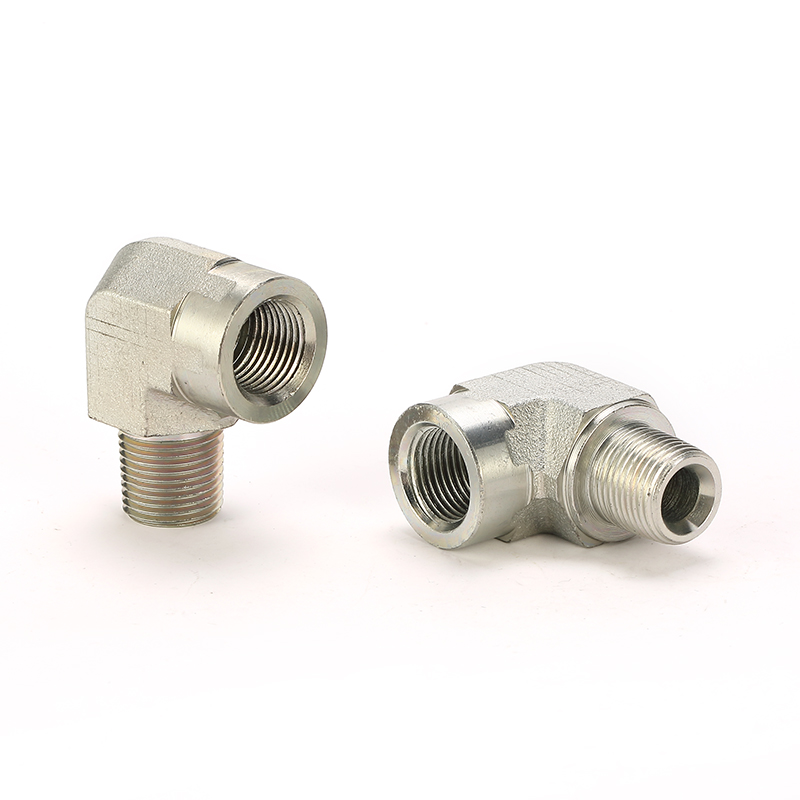

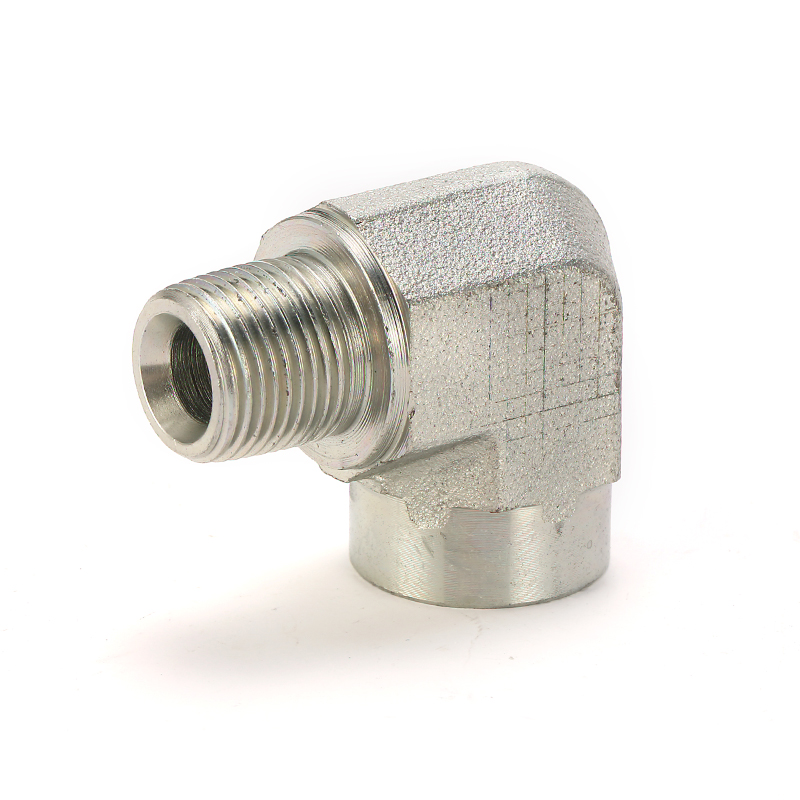

90°ELBOW NPT MALE / NPT FEMALE
PEHEL Hydraulic Model: P5N9
QTY:
