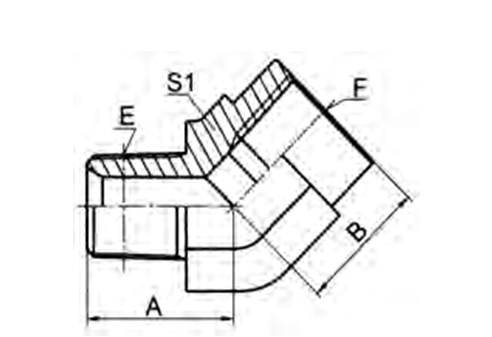

THREAD DIMENSIONS PART NO. E F A B S1 5N4-02 Z1/8"X27 Z1/8"X27 19 17 16 5N4-04 Z1/4"X18 Z1/4"X18 22 20 19 5N4-06 Z3/8"X18 Z3/8"X18 27 19 24 5N4-08 Z1/2"X14 Z1/2"X14 31.7 28 30 5N4-12 Z3/4"X14 Z3/4"X14 36.5 30 33 5N4-16 Z1"X11.5 Z1"X11.5 42.5 37.5 41 5N4-20 Z1.1/4"X11.5 Z1.1/4"X11.5 44 30 48 5N4-24 Z1.1/2"X11.5 Z1.1/2"X11.5 51 36 63
PEHEL | 45° NPT Male to Female Elbow Pipe Fitting | Fast Shipment In Stock
PEHEL Hydraulic Model: P5N4
QTY:
About the item:
1.Forged Construction: Ensures durability and strength for heavy-duty applications
2.High Pressure Rating: Designed to withstand high-pressure hydraulic systems.
3. Zinc Plated Finish: Provides rust resistance and enhances longevity.
4. Strict tolerance crimp stem enables stable hose crimping, avoids hose pull-off & oil seepage.
5. Customizable Options: Available in various sizes and configurations for tailored solutions.
