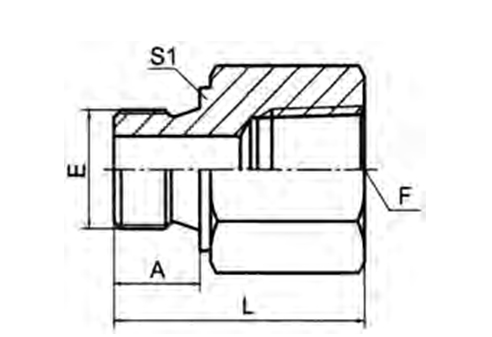

THREAD SEAL DIMENSIONS PART NO. E F E A L S1 5LN-10-02 M10X1 Z1/8"X27 ZHD-10 8 23 17 5LN-12-02 M12X1.5 Z1/8"X27 ZHD-12 12 34.8 19 5LN-14-04 M14X1.5 Z1/4"X18 ZHD-14 12 34.8 19 5LN-16-06 M16X1.5 Z3/8"X18 ZHD-16 12 35 22 5LN-18-06 M18X1.5 Z3/8"X18 ZHD-18 12 35 24 5LN-22-06 M22X1.5 Z3/8"X18 ZHD-22 14 28 27 5LN-22-08 M22X1.5 Z1/2"X14 ZHD-22 14 39 30 5LN-27-08 M27X2 Z1/2"X14 ZHD-27 16 40 34 5LN-27-12 M27X2 Z3/4"X14 ZHD-27 16 41 36 5LN-33-16 M33X2 Z1"X11.5 ZHD-33 18 54.5 41
PEHEL/ METRIC MALE WITH BONDED SEAL ADAPTER
PEHEL Hydraulic Model: P5LN
QTY:
METRIC MALE WITH BONDED SEAL ADAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: ADAPTER
Thread Type: METRIC MALE
About the item:
1. Hybrid adapter combining metric male thread with NPT female port.
2. Bonded seal (ZHD) on the metric end ensures a reliable, leak-tight seal.
3. NPT female (Z) end allows direct connection to American standard taper thread ports.
4. Available from M10x1 to M33x2 with Z1/8" to Z1" NPT, including reducing sizes.
5. Ideal for hydraulic, pneumatic, oil and gas systems needing metric-to-NPT conversion.
