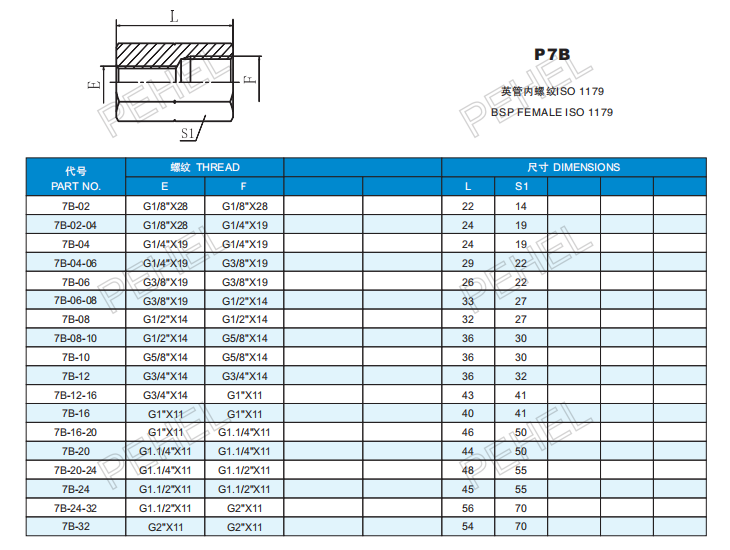

PART NO.
THREAD DIMENSIONS E F S L P7B-02 G1/8"X28 G1/8"X28 14 22 P7B-02-04 G1/8"X28 G1/4"X19 19 24 P7B-02-06 G1/8"X28 G3/8"19 22 26 P7B-04 G1/4"X19 G1/4"X19 19 24 P7B-04-06 G1/4"X19 G3/8"19 22 29 P7B-04-08 G1/4"X19 G1/2"X14 27 31 P7B-06 G3/8"X19 G3/8"X19 22 26 P7B-06-08 G3/8"X19 G1/2"X14 27 33 P7B-06-12 G3/8"X19 G3/4"X14 32 34 P7B-08 G1/2"X14 G1/2"X14 27 32 P7B-08-10 G1/2"X14 G5/8"X14 30 36 P7B-08-12 G1/2"X14 G3/4"X14 32 36 P7B-10 G5/8"X14 G5/8"X14 30 36 P7B-12 G3/4"X14 G3/4"X14 32 36 P7B-12-16 G3/4"X14 G1"X11 41 43 P7B-16 G1"X11 G1"X11 41 40 P7B-16-20 G1"X11 G1.1/4"X11 50 46 P7B-20 G1.1/4"X11 G1.1/4"X11 50 44 P7B-20-24 G1.1/4"X11 G1.1/2"X11 55 48 P7B-24 G1.1/2"X11 G1.1/2"X11 55 45 P7B-24-32 G1.1/2"X11 G2"X11 70 56 P7B-32 G2"X11 G2"X11 70 54
PEHEL / 7B / Hydraulic Adapter BSP Female 90° Elbow /In Stock
PEHEL Hydraulic Model: P7B
QTY:
BSP Fixed Female x BSP Female 90° Elbow Adaptors
Material: Carbon steel
Surface Treatment: White Zinc Plating
Brand: PEHEL, OEM
Color: Silver
Connector Type: elbow
Thread: BSP
About the item:
1. Standard BSP Female Thread – Precision-engineered BSP female threads with 60° cone sealing, ensuring secure and leak-free hydraulic connections.
2. Durable Carbon Steel Construction – Manufactured from high-grade carbon steel with corrosion-resistant zinc plating for extended service life.
3. High-Pressure Performance – Designed to withstand high operating pressures, delivering reliable fluid flow redirection in industrial and mobile systems.
4. Compact 90° Elbow Design – Space-saving angle configuration enables flexible installation in tight spaces and complex routing.
5. Ready to Ship – Available for immediate dispatch with quick turnaround, minimizing downtime and keeping your projects on schedule.
