PART NO.
THREAD
TUBE O.D.
O-RING

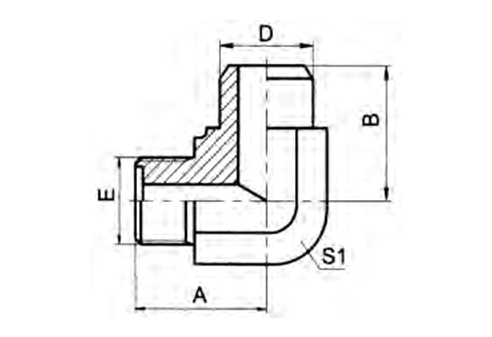

DIMENSIONS
E
E
A
B
D
S1
1EW9-12-06
M12X1.25
6
8X1.9
20.5
16.5
6
12
1EW9-14-08
M14X1.5
8
10X2
22.5
17.5
8
14
1EW9-16-10
M16X1.5
10
11X1.9
24
19.5
10
17
1EW9-18-12
M18X1.5
12
13X2
26
25
12
19
1EW9-22-14
M22X1.5
14
16.1X2.4
29
27
14
22
1EW9-27-18
M27X1.5
18
20.1X2.4
32.5
29.5
18
27
1EW9-30-22
M30X1.5
22
24.1X2.4
35.5
33.5
22
30
1EW9-36-28
M36X2
28
30X3.1
42
39
28
36
1EW9-39-30
M39X2
30
32X3.1
47.5
43
30
41
1EW9-42-34
M42X2
34
35X3.1
49.5
43
34
41
1EW9-45-38
M45X2
38
38X3.1
52.5
47.5
38
46
1EW9-52-42
M52X2
42
40X3.1
57
50
42
50
90° Elbow Metric Male O-ring
PEHEL Hydraulic Model: P1EW9
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: Metric
Surface Treatment: CR3+ White Zinc Plated
About the item:
1. Space-Saving 90° Routing – The 90 degree elbow hydraulic fitting turns the line in a tight radius, cutting hose length and bending stress in crowded manifolds and cylinder ports.
2. Leak-Proof Metric O-Ring Seal – Metric male O-ring stud end with O-ring (and backup ring where required) seats firmly on the port face, holding a leak-proof seal under pressure spikes and vibration.
3. Permanent Welded Connection – Weld-on end is butt- or socket-welded to the tube, creating a permanent, joint-free connection that removes a potential leak path versus threaded assemblies.
4. Material Matched to Service – Carbon steel for cost-effective general hydraulics; stainless steel for marine, chemical, food-processing and washdown environments.
5. Corrosion-Resistant Zinc Plating – Silver zinc-plated surface resists rust, salt spray and handling wear from warehouse to job site, keeping weld areas and threads serviceable.
