PEHEL Hydraulic Model: PNL
QTY:

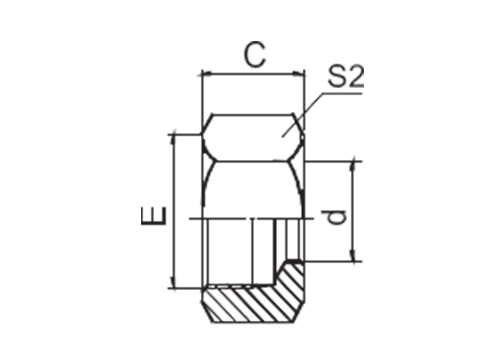

| THREAD | TUBE O.D. | DIMENSIONS | ||||||||
| PART NO. | MPa | |||||||||
| E | C | d | S2 | |||||||
| NL-12 | M12×1.5 | 6 | 14.5 | 6.1 | 14 | L | ||||
| NL-14 | M14×1.5 | 8 | 14.5 | 8.1 | 17 | |||||
| NL-16 | M16X1.5 | 10 | 15.5 | 10.1 | 19 | |||||
| NL-18 | M18X1.5 | 12 | 15.5 | 12.1 | 22 | |||||
| NL-22 | M22×1.5 | 15 | 17 | 15.1 | 27 | |||||
| NL-26 | M26×1.5 | 18 | 18 | 18.1 | 32 | |||||
| NL-30 | M30X2 | 22 | 20 | 22.1 | 36 | |||||
| NL-36 | M36×2 | 28 | 21 | 28.1 | 41 | |||||
| NL-45 | M45X2 | 35 | 24 | 35.2 | 50 | |||||
| NL-52 | M52×2 | 42 | 24 | 42.2 | 60 | |||||
Our high levels product quality,quick response 24/7 service will satisfy all of our clients.
PEHEL hydraulics is a manufacturer of hose fittings, hydraulic adapters, hose assembly, manifold block, hydraulic machine, flange fittings.
Our hydraulic products have a wide range applications, they include petrochemical, engineering machinery, injection molding machinery, mining equipment, agricultural machinery, ships, cars, machine manufacturing and custom hydraulic systems etc...
