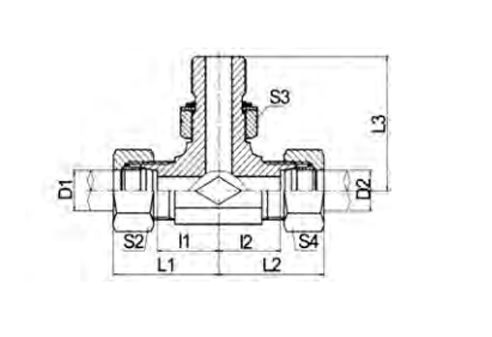

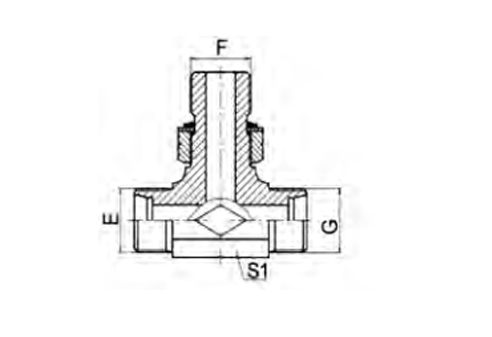

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E，G F D1，D2 I 1,I2 L1,L2 L3 S1 S2,S3 S4 ACGC-12-02-12OG M12X1.5 G1/8"X28 6 13 28 26.2 11 14 14 31.5 L ACGC-14-04-14OG M14X1.5 G1/4"X19 8 15.5 30.5 31.3 14 17 19 ACGC-16-04-16OG M16X1.5 G1/4"X19 10 17.5 32.5 32.5 16 19 19 ACGC-18-06-18OG M18X1.5 G3/8"X19 12 19 34 37 19 22 22 ACGC-22-08-22OG M22X1.5 G1/2"X14 15 22 37 43.2 22 27 27 ACGC-26-08-26OG M26X1.5 G1/2"X14 18 25.5 42 46.5 27 32 27 ACGC-30-12-30OG M30X2 G3/4"X14 22 29.3 45.8 52 30 36 32 16 L ACGC-36-16-36OG M36X2 G1"X11 28 33 49.8 56 36 41 41 ACGC-45-20-45OG M45X2 G1.1/4"X11 35 39.2 60.7 63 48 50 50 ADGD-14-04-14OG M14X1.5 G1/4"X19 6 17.5 32.5 31.3 14 17 19 63 S ADGD-16-04-16OG M16X1.5 G1/4"X19 8 18.5 33.7 32.5 16 19 19 ADGD-18-06-18OG M18X1.5 G3/8"X19 10 19.5 36 36.8 19 22 22 ADGD-20-06-20OG M20X1.5 G3/8"X19 12 19.5 36 36.8 19 24 22 ADGD-22-08-22OG M22X1.5 G1/2"X14 14 23 41 43.2 22 27 27 ADGD-24-08-24OG M24X1.5 G1/2"X14 16 24 42.5 44 24 30 27 40 S ADGD-30-12-30OG M30X2 G3/4"X14 20 28.3 49.8 52 30 36 32 ADGD-36-16-36OG M36X2 G1"X11 25 32.8 56.8 56 36 46 41 ADGD-42-20-42OG M42X2 G1.1/4"X11 30 36.2 62.7 58 41 50 50
PEHEL/BSP Thread Adjustable Stud Ends with O-ring Sealing Branch Tee
PEHEL Hydraulic Model: PACGC-OG PADGD-OG/PACGC-OG/RN PADGD-OG/RN
QTY:
BSP Thread Adjustable Stud Ends with O-ring Sealing Branch Tee
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: TEE
Thread Type 1: METRIC MALE
Thread Type 2: BSPP FLAT O-RING
Thread Type 1: METRIC MALE
ABOUT THE ITEM
1. This PEHEL branch tee adopts DIN 2353 metric bite-type connection plus BSP male stud with built-in O-ring for zero-leak high-pressure hydraulic tube branching.
- 2. It supplies two series PACGC-OG & PADGD-OG, covering metric tubes OD6–35mm and BSP threads G1/8" to G1-1/4" for diverse pipeline layout demands.
- 3. The adjustable swivel stud end allows free angle rotation during assembly, solving space limitation issues and avoiding tube torsion in compact equipment cabins.
- 4. Precisely CNC-forged carbon steel body with zinc anti-corrosion plating delivers stable bite sealing, adapting to construction, automation and marine hydraulic systems.
- 5, Standardized dimensional parameters (L1, L2, S1–S4) ensure interchangeability with global brand bite-type ferrules and nuts for easy stock matching.
