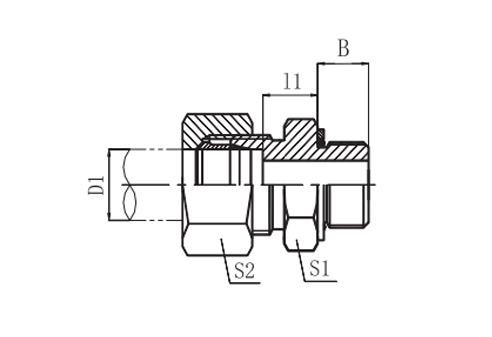

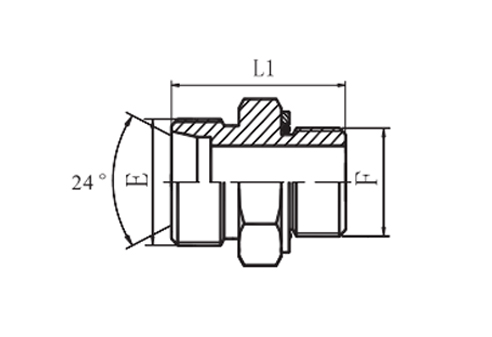

THREAD O DIMENSIONS PART NO. O-RING MPa E F TUBE O.D. B I1 L1 S1 S2 1CH-12-10 M12×1.5 M10×1 6 O08.1x1.6 8.5 9.5 25 14 14 31.5L 1CH-14 M14×1.5 M14×1.5 8 011.3×2.4 11 10 28 19 17 1CH-14-12 M14X1.5 M12×1.5 8 o09.3X2.4 11 10 28 17 17 1CH-16-14 16X1.5 M14×1.5 10 o11.3X2.4 11 11 29 19 19 1CH-18-14 M18X1.5 M14X1.5 12 o11.3×2.4 11 11 29 19 22 1CH-14-18 M14X1.5 M18×1.5 8 015.3X24 12.5 11.5 31 24 17 1CH-16 M16X1.5 M16×1.5 10 013.3X24 11.5 12.5 31 22 19 1CH-16-18 M16X1.5 M18×1.5 10 015.3X2.4 12.5 12.5 32 24 19 1CH-18-16 M18×1.5 M16×1.5 12 O13.3X2.4 11.5 12.5 31 22 22 1CH-22-16 M22x1.5 M16×1.5 15 013.3X2.4 11.5 13.5 32 24 27 1CH-22-18 M22×1.5 M18×1.5 15 015.3x24 12.5 13.5 33 24 27 1CH-16-22 M16×1.5 M22×1.5 10 o19.3x2.4 13 14 34 27 19 1CH-22-20 M22×1.5 M20×1.5 15 o17,3×2.4 12 15 34 27 27 1CH-22 M22×1.5 M22×1.5 15 o19.3×2,4 13 15 35 27 27 1CH-26-22 M26×1.5 M22×1.5 18 o19.3x2.4 13 14.5 35 27 32 1CH-26 M26×1.5 M26×1.5 18 023.5x3.0 13.5 14.5 35.5 32 32 1CH-26-27 M26×1.5 M27x2 18 O23.5x3.0 16 14.5 38 32 32 1CH-26-33 M26×1.5 M33x2 18 O29.5x3.0 16 15.5 39 41 32 1CH-30-22 M30×2 M22×1.5 22 o19.3x24 13 16.5 37 32 36 16L 1CH-30-27 M30×2 M27x2 22 023.5x3.0 16 16.5 40 32 36 1CH-30 M30×2 M30×2 22 O26.5X3.0 16 17.5 41 36 36 1CH-36-27 M36x2 M27X2 28 023.5x3.0 16 17 40.5 41 41 1CH-36-33 M36×2 M33x2 28 O29.5x3.0 16 17.5 41 41 41 1CH-36-42 M36x2 M42X2 28 038.5X3.0 16 18.5 42 50 41 1CH-45-33 M45x2 M33x2 35 o29.5x3.0 16 17.5 44 46 50 1CH-45-42 M45×2 M42x2 35 038.5x3.0 16 17.5 44 50 50 1CH-52-48 M52x2 M48x2 42 044.5x3.0 17.5 19 47.5 55 60 1DH-14 M14×1.5 M14×1.5 6 011.3x2,4 11 15 33 19 17 63S 1DH-14-12 M14×1.5 M12×1.5 6 o09.3x2,4 11 13 31 17 17 1DH-16-14 M16×1.5 M14×1.5 8 o11.3x2,4 11 15 33 19 19 1DH-18-16 M18×1.5 M16×1.5 10 013.3x24 11.5 15 34 22 22 1DH-20-14 M20×1.5 M14×1.5 12 011.3x2,4 11 15 33.5 22 24 1DH-20-16 M20×1.5 M16×1.5 12 013.3x2.4 11.5 15 34 22 24 1DH-20-18 M20×1.5 M18×1.5 12 015.3x24 12.5 17 37 24 24 1DH-20-22 M20×1.5 M22×1.5 12 o19.3X2.4 13 17.5 38 27 24 1DH-24-22 M24×1.5 M22×1.5 16 o19.3x2.4 13 18.5 40 27 30 40 S 1DH-30 M30x2 M30x2 20 O26.5X3.0 16 20.5 47 36 36 1DH-30-27 M30×2 M27x2 20 023.5x3.0 16 20.5 47 32 36 1DH-30-33 M30x2 M33×2 20 O29.5x3.0 16 22.5 49 41 36 1DH-36-27 M36x2 M27x2 25 O23.5X3.0 16 23 51 41 46 1DH-36-33 M36x2 M33×2 25 O29.5x3.0 16 23 51 41 46 1DH-42 M42x2 M42×2 30 038.5x3.0 16 23.5 53 50 50 1DH-42-48 M42x2 M48x2 30 044.5x3.0 17.5 26.5 57.5 55 50
PEHEL Hydraulic | Metric Thread Stud Ends ISO 6149 + P1CH P1DH/P1CH-RN P1DH-RN | Fast Shipment Stable Connection

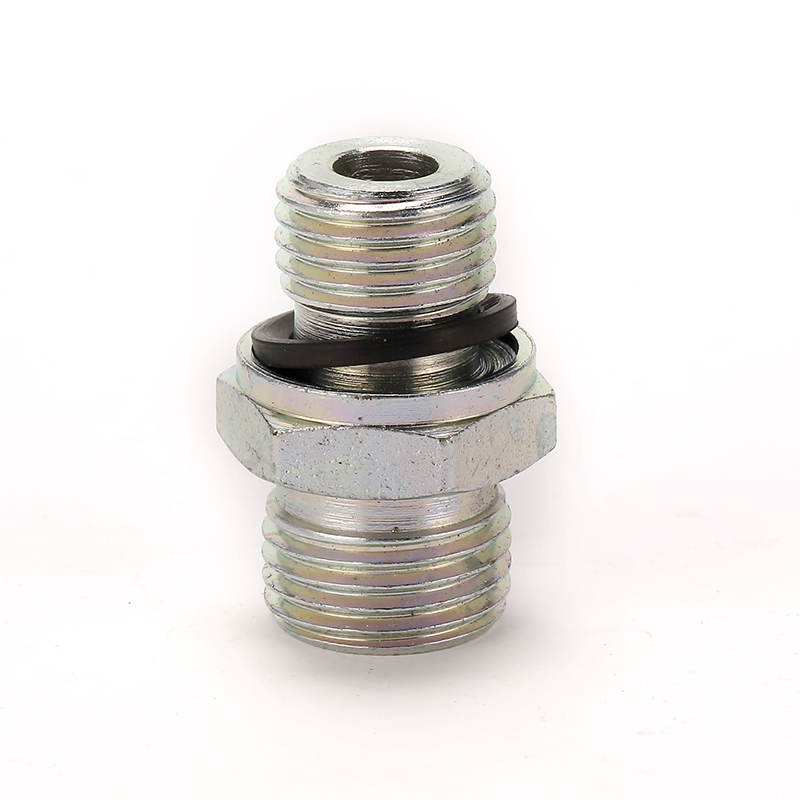

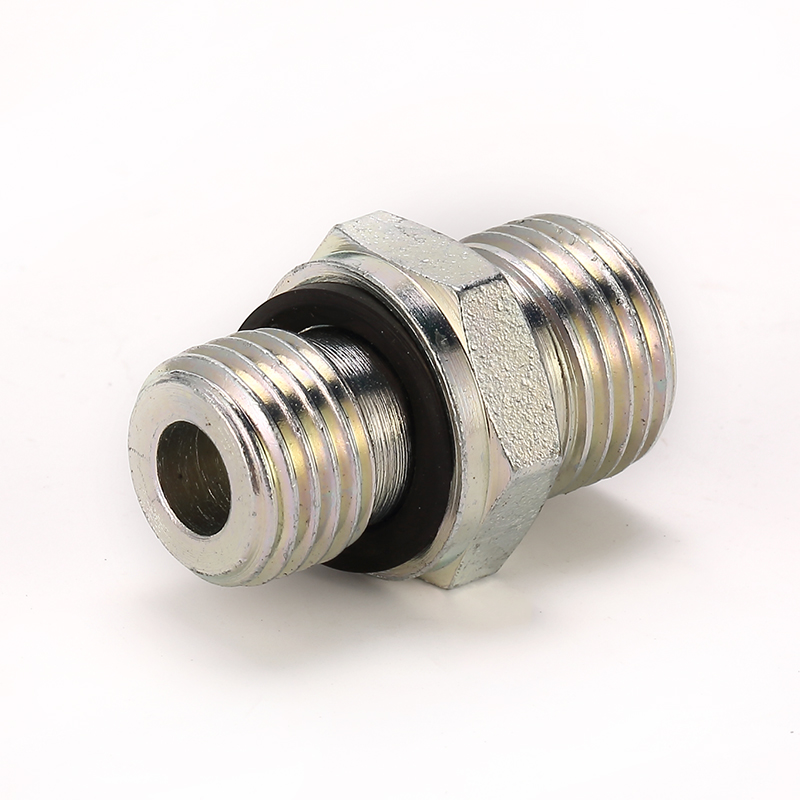

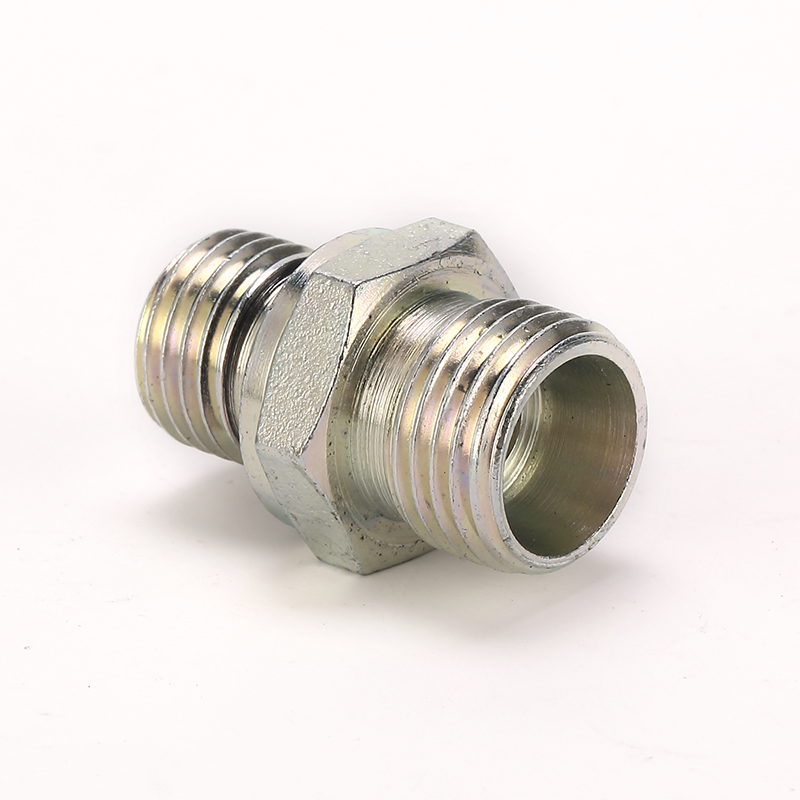

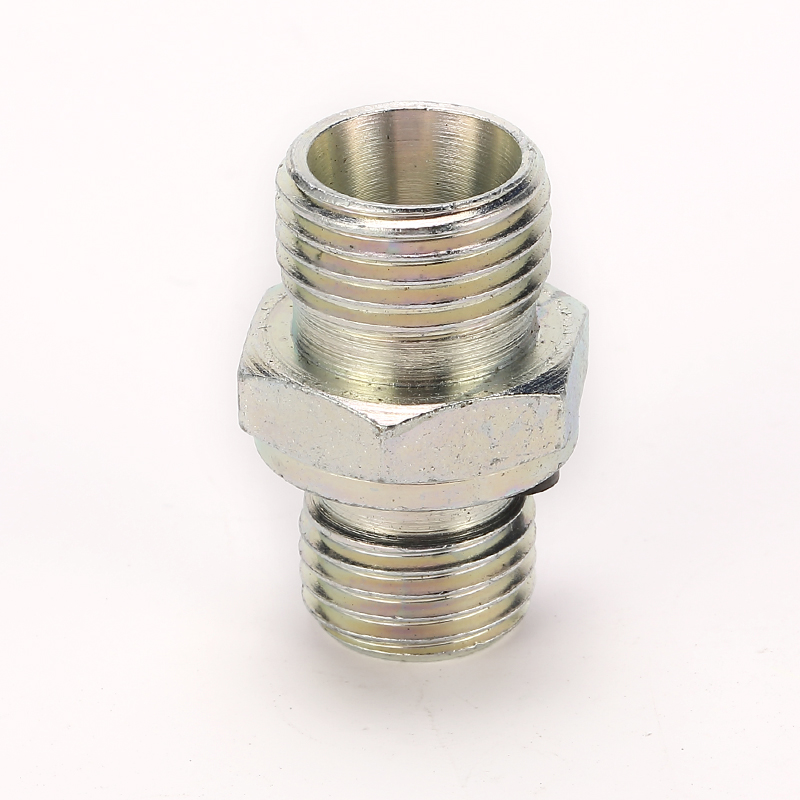

PEHEL Hydraulic Model: PEHEL Hydraulic Model: P1CH P1DH/P1CH-RN P1DH-RN
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type: Thread transition fitting
Thread Type: Metric
About the item:
Metric thread stud end layout optimizes connection in hydraulic systems, saves installation space.
PEHEL P1CH P1DH series meets ISO standards, fits heavy-duty hydraulic systems reliably. Fast shipment in stock.
Precision machined metric thread stud end ensures zero leakage under high pressure.
Strict tolerance ISO 6149 stud end enables stable connection, avoids thread mismatch & oil seepage.
Durable construction with anti-rust treatment for long service life in harsh environments.
