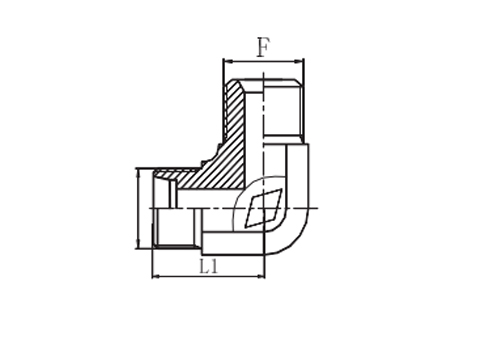

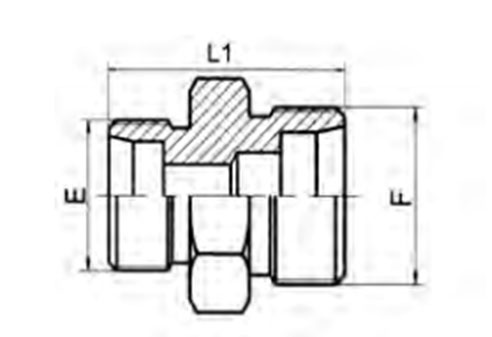

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 I1 L1 L2 S1 S2 1CB9-12-04 M12X1.5 G1/4"X19 6 15.5 22.5 24.5 14 14 31.5 L 1CB9-14-04 M14X1.5 G1/4"X19 8 15.5 22.5 24.5 14 17 1CB9-14-06 M14X1.5 G3/8"X19 8 16.5 23.5 27.5 16 17 1CB9-16-04 M16X1.5 G1/4"X19 10 17.5 24.5 26 16 19 1CB9-16-06 M16X1.5 G3/8"X19 10 17.5 24.5 27.5 16 19 1CB9-16-08 M16X1.5 G1/2"X14 10 21 28 34.5 22 19 1CB9-18-04 M18X1.5 G1/4"X19 12 19 26 27.5 19 22 1CB9-18-06 M18X1.5 G3/8"X19 12 19 26 28.5 19 22 1CB9-18-08 M18X1.5 G1/2"X14 12 21 28 34.5 22 22 1CB9-22-06 M22X1.5 G3/8"X19 15 22 29 31 22 27 1CB9-22-08 M22X1.5 G1/2"X14 15 22 29 34.5 22 27 1CB9-26-08 M26X1.5 G1/2"X14 18 25.5 33 37 27 32 1CB9-30-12 M30X2 G3/4"X14 22 29.5 37 41 30 36 16 L 1CB9-36-16 M36X2 G1"X11 28 33.3 43.3 47.5 36 41 1CB9-45-20 M45X2 G1.1/4"Xl1 35 39 49.5 54.5 48 50 1CB9-52-24 M52X2 G1.1/2"Xl1 42 40 51 58.5 50 60 1DB9-14-04 M14X1.5 G1/4"X19 6 17.5 24.5 24.5 14 17 63 S 1DB9-16-04 M16X1.5 G1/4"X19 8 18.7 25.7 26.5 16 19 1DB9-16-06 M16X1.5 G3/8"X19 8 18.7 25.7 27.5 16 19 1DB9-18-04 M18X1.5 G1/4"X19 10 19.5 27 27.5 19 22 1DB9-18-06 M18X1.5 G3/8"X19 10 19.5 27 28.5 19 22 1DB9-18-08 M18X1.5 G1/2"X14 10 21.5 29 34.5 22 22 1DB9-20-04 M20X1.5 G1/4"X19 12 19.5 27 27.5 19 24 1DB9-20-06 M20X1.5 G3/8"X19 12 19.5 27 28.5 19 24 1DB9-20-08 M20X1.5 G1/2"X14 12 21.5 29 34.5 22 24 1DB9-22-08 M22X1.5 G1/2"X14 14 23 31 34.5 22 27 1DB9-24-06 M24X1.5 G3/8"X19 16 24 32.5 32 24 30 40 S 1DB9-24-08 M24X1.5 G1/2"X14 16 24 32.5 35 24 30 1DB9-24-12 M24X1.5 G3/4"X14 16 26 34.5 40 27 30 1DB9-30-12 M30X2 G3/4"X14 20 28 38.5 41 30 36 1DB9-36-08 M36X2 G1/2"X14 25 32.5 44.5 42.5 36 46 1DB9-36-12 M36X2 G3/4"X14 25 32.5 44.5 43.5 36 46 1DB9-36-16 M36X2 G1"X11 25 32.5 44.5 47.5 36 46 1DB9-42-20 M42X2 G1.1/4"X11 30 36.5 50 50.5 41 50 1DB9-52-24 M52X2 G1.1/2"X11 38 46 62 63 55 60 31.5 S

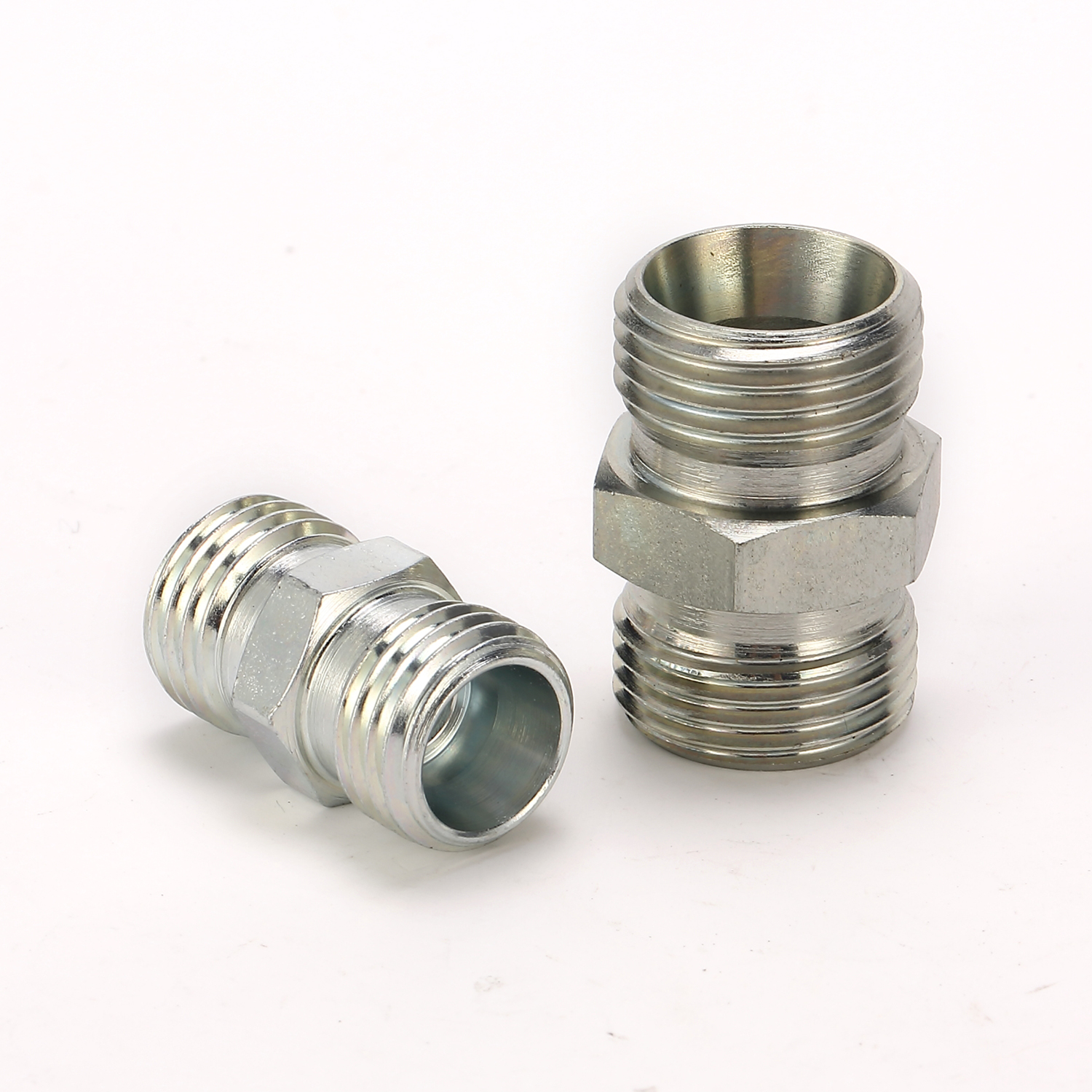

Pehel | 90° Elbow SP Thread 60° Cone Sealing Hydraulic Adapter
PEHEL Hydraulic Model: P1CB9 P1DB9/P1CB9-RN P1DB9-RN
QTY:
Connector Type: 90° Elbow, 60° Cone Sealing
Thread Type: SP Thread
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
About the item:
- 1.This 90° SP thread elbow adapter adopts reliable 60° cone sealing for leak‑free hydraulic connection.
- 2.Available in carbon steel and stainless steel material to fit diverse hydraulic working conditions.
- 3.Silver zinc‑plated surface on this hydraulic adapter delivers excellent corrosion resistance.
- 4.Precision‑machined SP thread ensures tight, stable assembly for hydraulic system pipelines.
- 5.Pehel & OEM service supported for custom‑spec 60° cone sealing hydraulic elbow adapters.
- 6.Compact 90‑degree elbow structure saves installation space for industrial hydraulic fittings.
