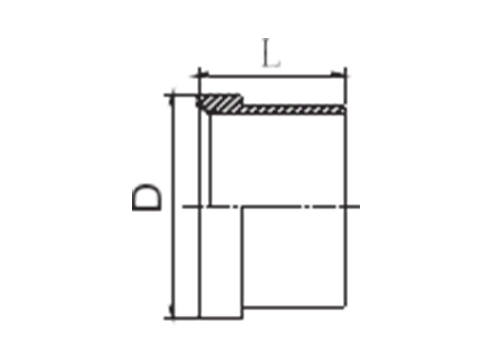

PART NO. THREAD TUBEO.D. DIMENSIONS E mm D L NB500-06 7/16"X20 6 9.7 10.4 NB500-08 1/2"X20 8 11.3 11.2 NB500-10 9/16"X18 10 12.7 12.7 NB500-12 3/4"X16 12 17.3 14.2 NB500-14 7/8"X14 14 20.2 16.8 NB500-15 7/8"X14 15 20.2 16.8 NB500-16 7/8"X14 16 20.2 16.8 NB500-18 1.1/16"X12 18 24.69 17.3 NB500-20 1.3/16"X12 20 27.7 19.3 NB500-22 1.3/16"X12 22 27.7 19.3 NB500-25 1.5/16"X12 25 30.8 19.8 NB500-28 1.5/8"X12 28 38.96 23.1 NB500-30 1.5/8"X12 30 38.96 23.1 NB500-32 1.5/8"X12 32 38.96 23.1 NB500-35 1.7/8"X12 35 45.25 28.4 NB500-38 1.7/8"X12 38 45.25 28.4 NB500-50 2.1/2"X12 50 61.2 30.2

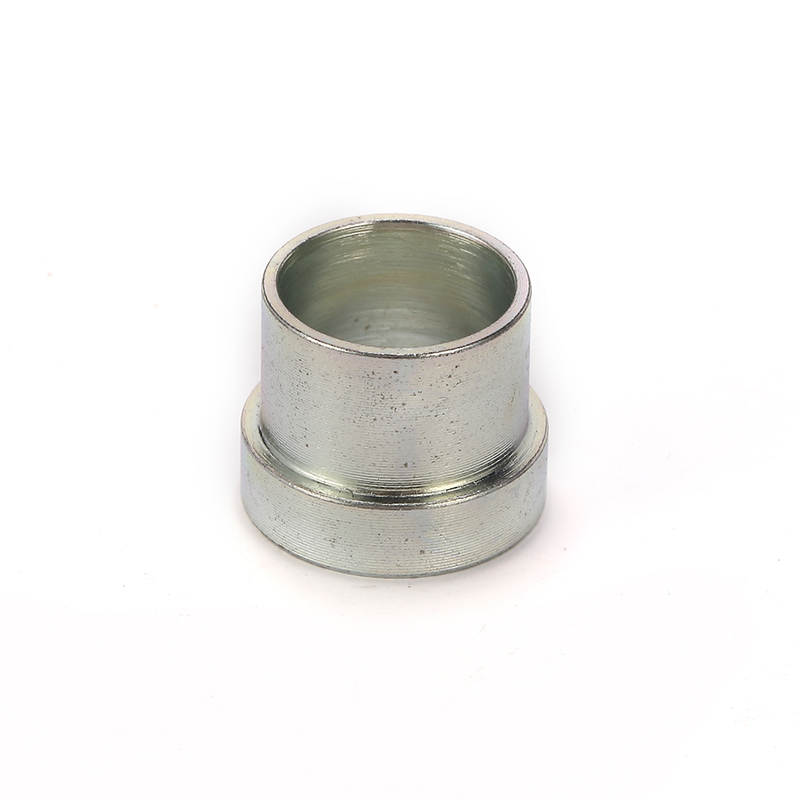

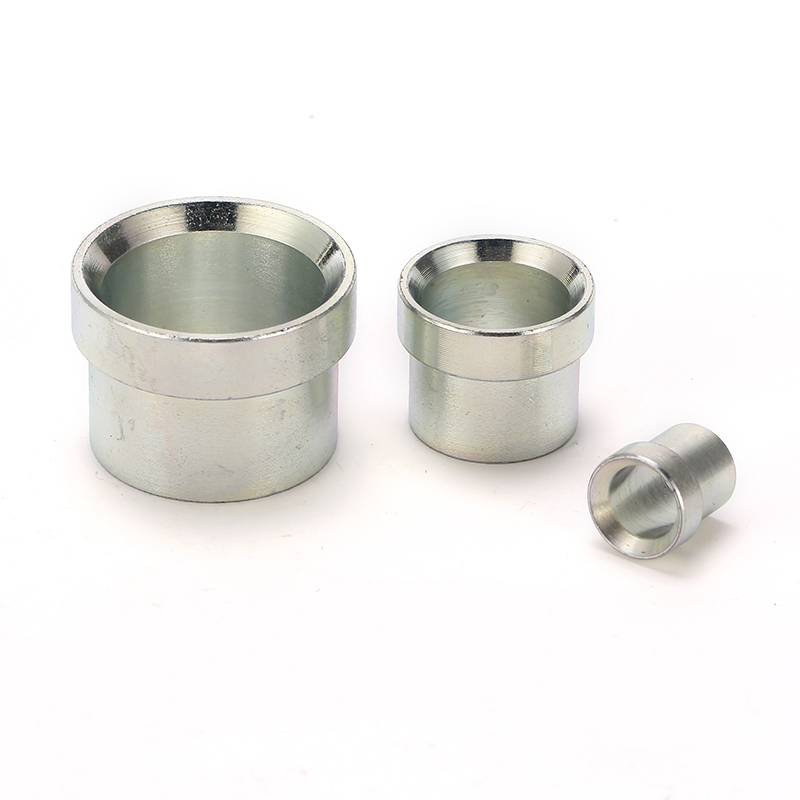

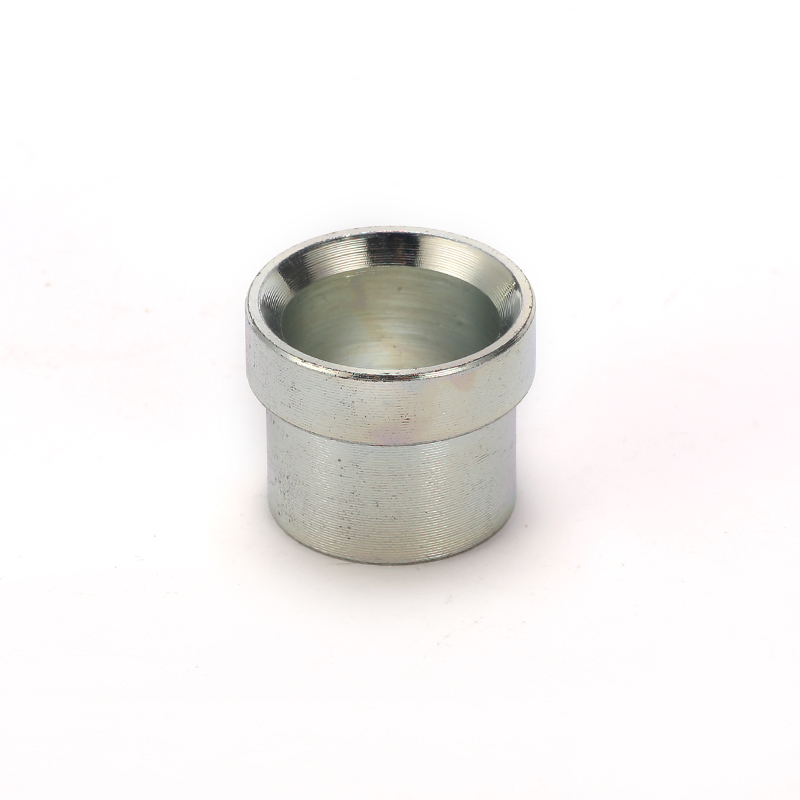

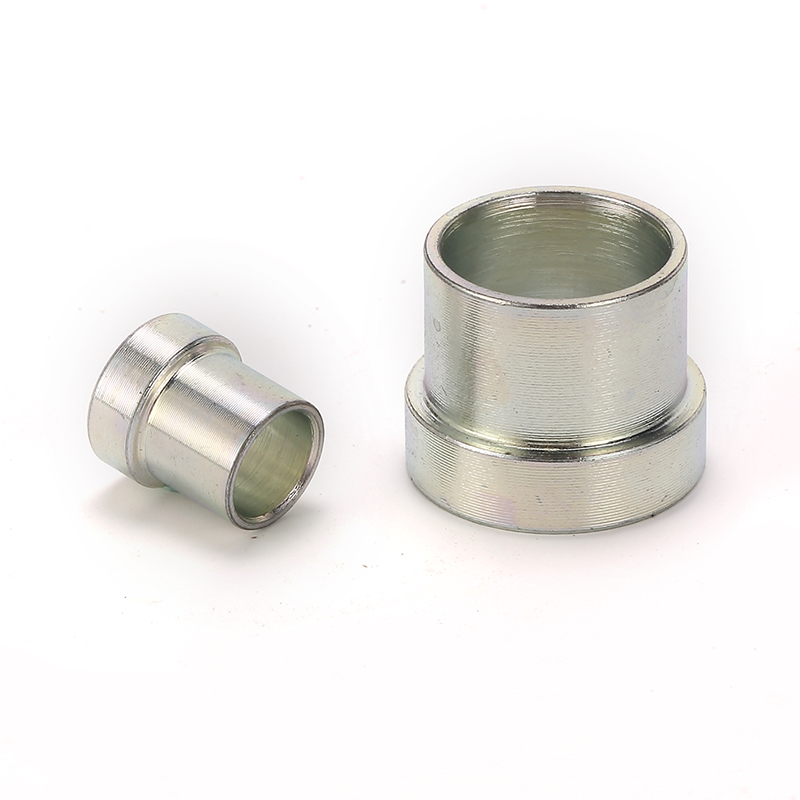

JIC METRIC SLEEVE
PEHEL Hydraulic Model: PNB500
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type: Hose crimp sleeve type
Thread Type:
About the item:
1. This JIC metric sleeve adopts standard metric size design for accurate matching with JIC hydraulic pipe assemblies.2. High-quality carbon and stainless steel material makes the hydraulic hose sleeve sturdy and high pressure resistant.3. Silver zinc plated surface improves corrosion resistance, greatly prolonging the service life of the steel pipe sleeve.4. Fine machining ensures tight crimping performance, making thiszinc plated sleeve free of hydraulic oil leakage.
