PART NO. THREAD TUBEO.D. DIMENSIONS E in D L NB300-04 7/16"X20 1 /4" 9.7 10.4 NB300-05 1/2"X20 5/16" 11.3 11.2 NB300-06 9/16"X18 3/8" 12.75 12.7 NB300-08 3/4"X16 1 /2" 17.32 14.2 NB300-10 7/8"X14 5/8" 20.24 16.8 NB300-12 1.1/16"X12 3 /4" 24.69 17.3 NB300-14 1.3/16"X12 7/8" 27.7 19.3 NB300-16 1.5/16"X12 1" 30.8 19.8 NB300-20 1.5/8"X12 1.1/4" 38.96 23.1 NB300-24 1.7/8"X12 1.1/2" 45.25 28.4 NB300-32 2.1/2"X12 2" 61.19 30.2

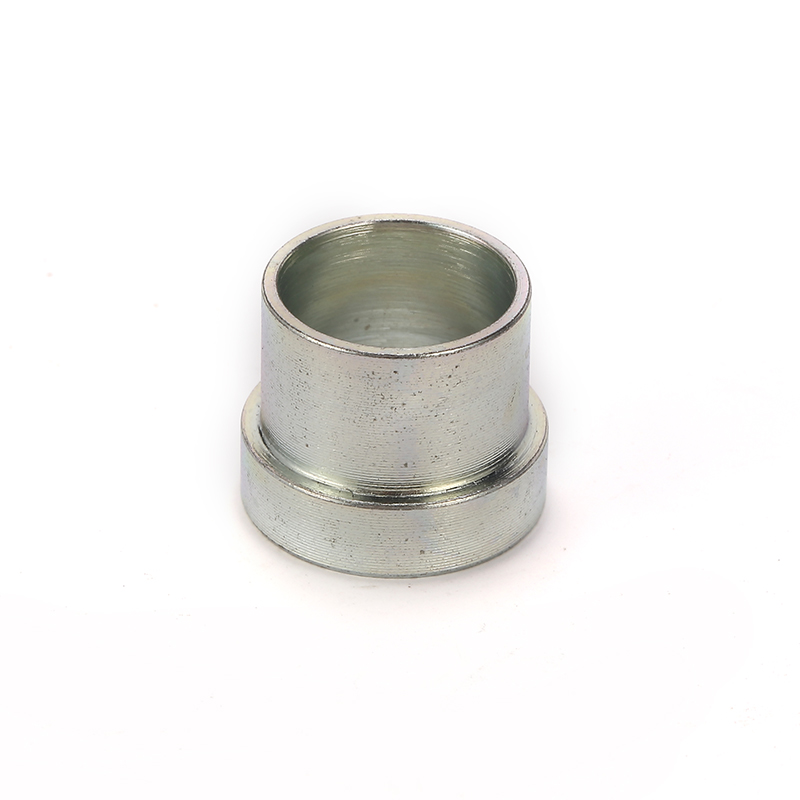

PEHEL/JIC INCH SLEEVE
PEHEL Hydraulic Model: PNB300
QTY:
JIC INCH SLEEVE
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: sleeve
About the item:
1. Replacement sleeve for JIC 74° cone flared tube fittings, model PNB300.
2. Precision-machined to SAE J514 (JIC) standard for accurate fit and reliable sealing.
3. Works with standard JIC nuts and flared tubes to form leak-tight connections.
4. Zinc-plated carbon steel construction resists corrosion for long service life.
5. Ideal for hydraulic, pneumatic, oil and gas tube systems requiring dependable inch-size joints.
