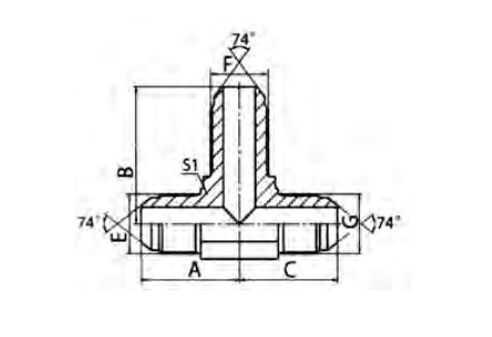

THREAD DIMENSIONS PART NO. E F G A B C S1 S2 AJ6JJ-04 7/16"X20 7/16"X20 7/16"X20 24.5 40.4 24.5 11 17 AJ6JJ-05 1/2"X20 1/2"X20 1/2"X20 26.6 43.7 26.6 14 19 AJ6JJ-06 9/16"X18 9/16"X18 9/16"X18 26.9 46 26.9 14 22 AJ6JJ-08 3/4"X16 3/4"X16 3/4"X16 32 53.5 32 19 24 AJ6JJ-10 7/8"X14 7/8"X14 7/8"X14 37.8 60.7 37.8 22 30 AJ6JJ-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 44.2 67.8 44.2 27 36 AJ6JJ-14 1.3/16"X12 1.3/16"X12 1.3/16"X12 48.5 71 48.5 33 38 AJ6JJ-16 1.5/16"X12 1.5/16"X12 1.5/16"X12 49 71 49 33 41

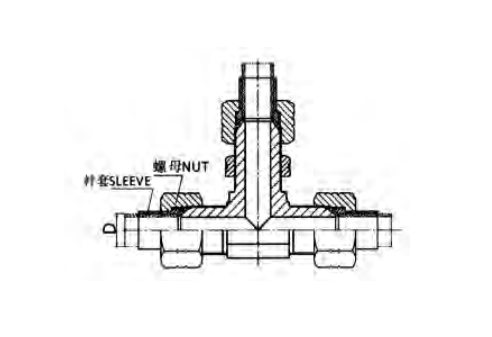

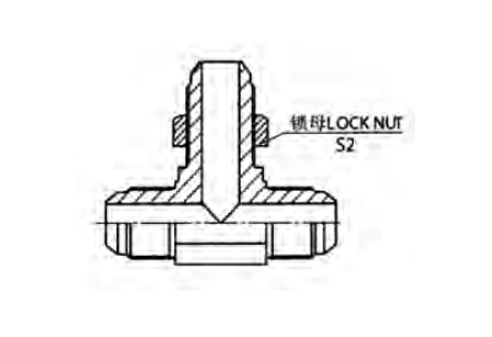

JIC 74° Cone Bulkhead Tee – Male Branch Fitting for Hydraulic Systems
PEHEL Hydraulic Model: PAJ6JJ/PAJ6JJ-LN
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type:TEE
Thread Type: JIC
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Leak-Free 74° Cone Seal: Precision JIC 74° cone seating ensures a metal-to-metal seal that withstands high pressure and thermal cycling without leaking.
2.Space-Saving Branch Design: This male branch tee combines a bulkhead mount with a side branch outlet, reducing the need for additional adapters in tight installations.
3.Durable Construction: Available in carbon steel and stainless steel, these JIC fittings feature silver zinc plating for excellent corrosion protection in harsh environments.
4.Standard JIC Thread Compatibility: The male JIC threads conform to SAE J514 standards, ensuring direct interchangeability with existing JIC components worldwide.
5.High-Pressure Capability: Engineered for hydraulic bulkhead applications, this tee handles working pressures up to 3000 PSI depending on size and material selection.
