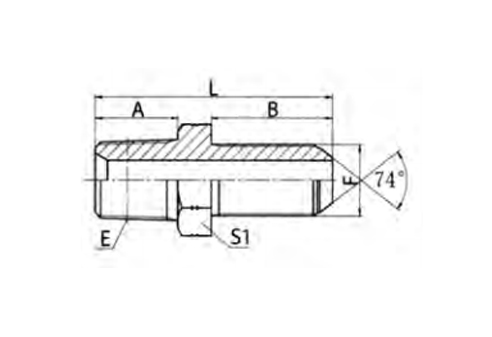

PART NO. THREAD DIMENSIONS E F A B L S1 S2 6NJ-02-04 Z1/8"X27 7/16"X20 10.5 32.5 49 17 17 6NJ-04 Z1/4"X18 7/16"X20 15 32.5 53.5 17 17 6NJ-04-06 Z1/4"X18 9/16"X18 15 32.5 55.5 22 22 6NJ-06 Z3/8"X18 9/16"X18 16 32.5 56.5 22 22 6NJ-08 Z1/2"X14 3/4"X16 19.5 36.5 64 24 24 6NJ-08-10 Z1/2"X14 7/8"X14 19.5 40 69.5 30 30 6NJ-12 Z3/4"X14 1.1/16"X12 19.5 44.5 75 36 36 6NJ-16 Z1"X11.5 1.5/16"X12 25.5 44.5 83 41 41 6NJ-20 Z1.1/4"X11.5 1.5/8"X12 26.5 45.7 87 50 50 6NJ-24 Z1.1/2"X11.5 1.7/8"X12 27.5 46 88.5 55 55
PEHEL / NPT MALE / JIC MALE 74° CONE BULKHEAD ADAPTER
PEHEL Hydraulic Model: P6NJ/P6NJ-LN
QTY:
NPT MALE / JIC MALE 74° CONE BULKHEAD ADAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: ADAPTER
Thread Type 1: NPT MALE
Thread Type 2: JIC 74 CONE MALE
About the item:
1. P6NJ / P6NJ‑LN bulkhead adapter features NPT male tapered thread and JIC male 74° cone end for cross‑standard panel‑mount connection.
2. 74‑degree metal‑to‑metal cone sealing complies with SAE J514, delivering stable leak‑proof performance for high‑pressure hydraulic circuits.
3. LN variant supplies extended thread length for thick‑panel installation; full size range covers Z1/8"‑Z1‑1/2" NPT and matching JIC threads.

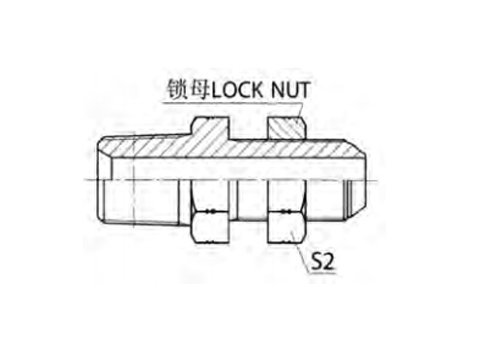

4. Precisely CNC‑machined carbon‑steel body with zinc‑plated finish, complete with lock nut for firm bulkhead fastening.
5. Through‑wall transition fitting widely used for mobile machinery and heavy‑duty industrial hydraulic pipeline assembly.
