THREAD D O-RING DIMENSIONS PART NO. E F TUBE O.D. F A B L S1 S2 1QH-14-12 M14X1.5 M12X1.5 8 O09.3X2.4 17 11 35 17 17 1QH-16-14 M16X1.5 M14X1.5 10 O11.3X2.4 18 11 37.5 19 22 1QH-18-16 M18x1.5 M16x1.5 12 O13.3X2.4 18 11.5 38 22 24 1QH-22-18 M22x1.5 M18x1.5 14 O15.3X2.4 19.5 12.5 40.5 24 27 1QH-27-22 M27x1.5 M22x1.5 18 O19.3X2.4 20 13 45.5 30 32 1QH-30-27 M30x1.5 M27x2 20 O23.5X3.0 23 16 50 32 36 1QH-33-27 M33x2 M27x2 22 O23.5X3.0 26 16 53 34 38 1QH-36-33 M36x2 M33x2 25 O29.5X3.0 26 16 55 41 41 1QH-39-33 M39x2 M33x2 28 O29.5X3.0 26 16 55 41 46 1QH-45-42 M45x2 M42x2 34 O38.5X3.0 28.5 16 59.5 50 55

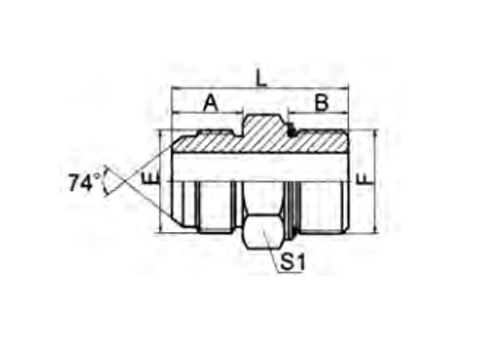

METRIC 74° CONE
PEHEL Hydraulic Model: P1QH/P1QH-RN
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
- About the item:
- 1.Precision 74° cone metal-to-metal sealing, zero leakage under high hydraulic pressure
- 2.Silver zinc plating surface, anti-rust & long service life for harsh working environments
- 3.Carbon steel & stainless steel dual material options, support Pehel brand & OEM customization
- 4.Standard metric thread design, widely compatible with global hydraulic hose assemblies
- 5.Factory direct supply, multiple sizes & styles available for industrial machinery systems
