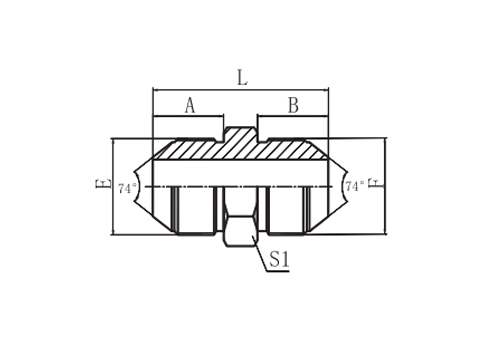

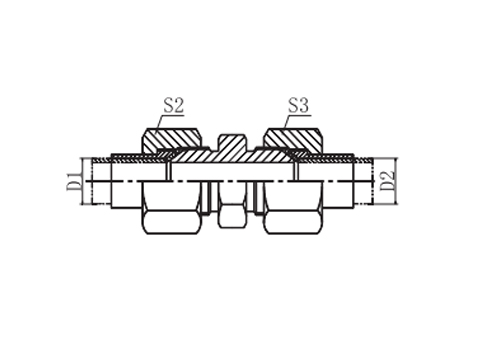

THREAD TUBE O.D. DIMENSIONS PART NO. E F D1,D2 A B L S1 S2,S3 1Q-10 M10X1 M10X1 5 12 12 30 12 14 1Q-12 M12X1.5 M12X1.5 6 15.7 15.7 37.5 14 14 1Q-14 M14X1.5 M14X1.5 8 17 17 40 17 17 1Q-16 M16X1.5 M16X1.5 10 18 18 42 17 22 1Q-18 M18X1.5 M18X1.5 12 18 18 42 19 24 1Q-22 M22X1.5 M22X1.5 14 19.5 19.5 47 24 27 1Q-24 M24X1.5 M24X1.5 16 20 20 50 27 30 1Q-27 M27X1.5 M27X1.5 18 20 20 50 30 32 1Q-30 M30X1.5 M30X1.5 20 23 23 57 32 36 1Q-30E M30X2 M30X2 20 26 26 63 32 36 1Q-33 M33X2 M33X2 22 26 26 63 36 38 1Q-36 M36X2 M36X2 25 26 26 63 38 41 1Q-39 M39X2 M39X2 28 26 26 65 41 46 1Q-42 M42X2 M42X2 32 28.5 28.5 70 46 50 1Q-45 M45X2 M45X2 34 28.5 28.5 70 46 55
PEHEL/METRIC MALE 74° CONE
PEHEL Hydraulic Model: P1Q/P1Q-RN
QTY:
METRIC MALE 74° CONE ADAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: ADAPTER
Thread Type: METRIC MALE 74° CONE
ABOUT THE ITEM:
1. P1Q / P1Q‑RN is straight union adapter with dual metric male 74° cone ends, available in equal‑size and reducer versions.
2. 74‑degree metal‑to‑metal cone sealing provides stable leak‑proof performance for high‑pressure metric flared tube hydraulic circuits.
3. Broad metric thread range from M10×1 up to M45×2, matches various tube outer‑diameter specifications for pipeline connection.
4. Precisely CNC‑machined carbon‑steel body with zinc‑plated finish, offering good interchangeability and corrosion resistance.
5. Compact straight‑through connector widely used for metric flared‑tube assemblies on mobile and industrial hydraulic machinery.
