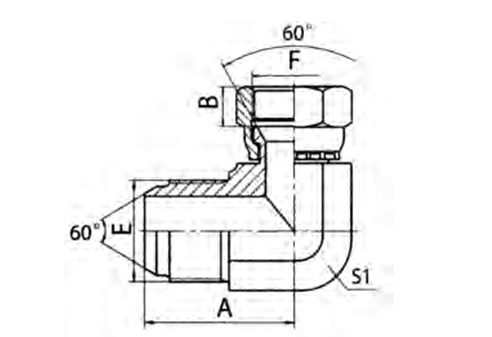

THREAD DIMENSIONS PART NO. E F A B S1 S2 2K9-14 M14X1.5 M14X1.5 29 11 14 19 2K9-16 M16X1.5 M16X1.5 31.5 10.5 16 22 2K9-18 M18X1.5 M18X1.5 33.8 11 19 24 2K9-22 M22X1.5 M22X1.5 38 14 22 27 2K9-24 M24X1.5 M24X1.5 41.2 14.5 24 32 2K9-30-24 M30X1.5 M24X1.5 48 14.5 30 32 2K9-30 M30X1.5 M30X1.5 48 17 30 36 2K9-33 M33X1.5 M33X1.5 55 17.5 33 41
PEHEL | 90°Elbow JIS Metric Thread 60°Cone | Hydraulic Hose Adapter
PEHEL Hydraulic Model: P2K9
QTY:
Material: Carbon steel, Stainless Steel, Aluminium, Brass
Brand: Pehel, OEM
Color: Silver
Connector Type: 90 Elbow
Thread Type: Hydraulic Hose Adapter
1. High-strength 45# carbon steel with quenching & tempering heat treatment, high tensile and compressive resistance, resistant to deformation and cracking under high pressure.
2. Precise crimping tooth profile firmly locks the hose, preventing hose pull-out and bulging under high-pressure impact.
3. CNC one-piece precision machining with tiny dimensional tolerances, perfectly matched with DIN / SAE standard hydraulic sleeves and fittings.
4. Multiple thread specifications available: metric, British, American threads, one-stop fit for all types of hydraulic pipelines.
5. Rust & oxidation resistant, Long service life
