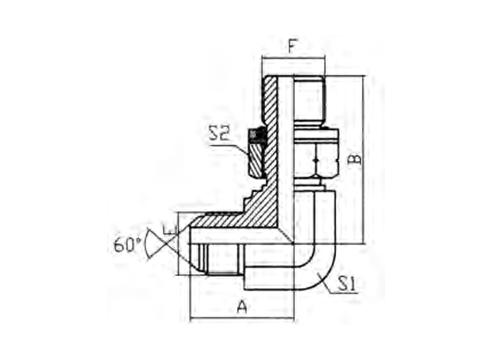

THREAD OO-RING DIMENSIONS PART NO. E F F A B L S1 1SG9-02OG G1/8"X28 G1/8"X28 O011 21.8 26.2 11 14 1SG9-04OG G1/4"X19 G1/4"X19 O111 28 31.3 14 19 1SG9-06OG G3/8"X19 G3/8"X19 O113 29 35.8 16 22 1SG9-08OG G1/2"X14 G1/2"X14 O115 38 43.2 22 27 1SG9-12OG G3/4”X14 G3/4"X14 O119 43 49.3 27 32 1SG9-16OG G1"X11 G1"X11 O217 48.5 53 33 41 1SG9-20OG G1.1/4"X11 G1.1/4"X11 O222 57 59 41 50 1SG9-24OG G1.1/2"X11 G1.1/2"X11 O224 61 65 48 55
Silver Zinc Plated 90° Elbow | JIS Gas Male BSP 60° Cone
PEHEL Hydraulic Model: P1SG9-OG
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: JIS BSP
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Precision JIS Standard: This 90° elbow meets exact JIS specifications, ensuring perfect fit and reliable sealing in gas systems with BSP male thread connections.
2.Leak-Proof 60° Cone Seal: The machined 60° cone seat creates a metal-to-metal seal, eliminating leaks in high-pressure gas applications without requiring additional seals.
3.Corrosion-Resistant Finish: The silver zinc plating protects against rust and chemical exposure, extending service life of this gas fitting in demanding environments.
4.Dual Material Availability: Choose carbon steel for strength or stainless steel for enhanced corrosion resistance, both precision-machined for consistent thread quality.
5.OEM Direct Replacement: Manufactured as an OEM connector, this elbow guarantees dimensional accuracy and compatibility with existing JIS gas port configurations.
