3000 PSI High Pressure SAE Flange/Socket Weld Connection

3000 PSI High Pressure SAE Flange/Socket Weld Connection

PEHEL Hydraulic Model: 5FLW-S/IN

QTY:

OEM SAE Flange 3000PSI Hydraulic Hose Fittings Carbon Steel Adapter

  • Material:Carbon steel

    Brand:Pehel, OEM

    Color: Silver

    Connector Type: Flange

    Thread Type: No thread

    Surface Treatment: CR3+ White Zinc Plated

  • About the item:

  • 1.Rated for 3000 PSI: Manufactured from high-quality carbon steel or stainless steel, this SAE flange ensures reliable performance in demanding high-pressure hydraulic systems.

  • 2.Precision Socket Weld Design: The socket weld connection for inch tubes provides a strong, leak-proof joint, ideal for applications subject to vibration and mechanical stress.

  • 3.Corrosion-Resistant Silver Zinc Plating: The silver color zinc coating offers excellent rust protection, extending the service life of the flange even in harsh environments.

  • 4.Flexible Branding Options: Available as standard Pehel products or custom OEM solutions, allowing you to match specific dimensional and material requirements for your project.

  • 5.Wide Compatibility: Designed to SAE standards, this flange easily integrates with common hydraulic pumps, valves, and piping components for quick installation and replacement.

  • Specification
  • You May Also Like
  • PART NO.
    FLANGE SIZE
    O-RING
    WELDTUBE OD
    DIMENSIONS - D
    DIMENSIONS - D
    DIMENSIONS - A
    DIMENSIONS - D1
    DIMENSIONS - D2
    DIMENSIONS - L
    5FLW-08S/IN
    1/2"
    18.64x3.53
    1/2"
    7
    30.2
    23.9
    13
    5FLW-12-08S/IN
    3/4"
    24.99x3.53
    1/2"
    7
    38.1
    31.7
    15
    5FLW-12S/IN
    3/4"
    24.99x3.53
    3/4"
    7
    38.1
    31.7
    15
    5FLW-16-12S/IN
    1"
    32.92x3.53
    3/4"
    8.2
    44.4
    38
    15
    5FLW-16S/IN
    1"
    32.92x3.53
    1"
    8.2
    44.4
    38
    15
    5FLW-20-16S/IN
    1.1/4"
    37.69x3.53
    1"
    8.2
    50.8
    43.2
    15
    5FLW-20S/IN
    1.1/4"
    37.69x3.53
    1.1/4"
    8.2
    50.8
    43.2
    15
    5FLW-24-16S/IN
    1.1/2"
    47.22x3.53
    1"
    8.2
    60.3
    50.3
    20
    5FLW-24-20S/IN
    1.1/2"
    47.22x3.53
    1.1/4"
    8.2
    60.3
    50.3
    20
    5FLW-24S/IN
    1.1/2"
    47.22x3.53
    1.1/2"
    8.2
    60.3
    50.3
    20
    5FLW-32-20S/IN
    2"
    56.74x3.53
    1.1/4"
    9.8
    71.4
    62.2
    20
    5FLW-32-24S/IN
    2"
    56.74x3.53
    1.1/2"
    9.8
    71.4
    62.2
    20
    5FLW-32S/IN
    2"
    56.74x3.53
    2"
    9.8
    71.4
    62.2
    20

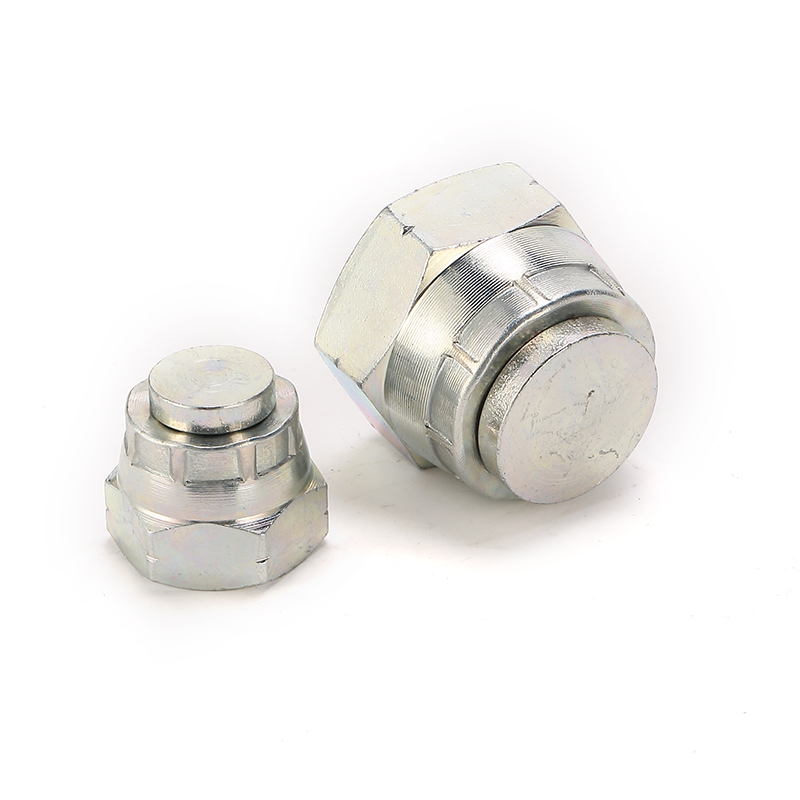

  • BSP Female Multiseal Plug | Hex Socket Pipe Cap for Hydraulic Testing & Protection
    Details

    Pehel/BSP Male x Male x Female Tee Adapter

    Details

    Pehel/ P26711/JIC Female 60° Cone Seal

    Details

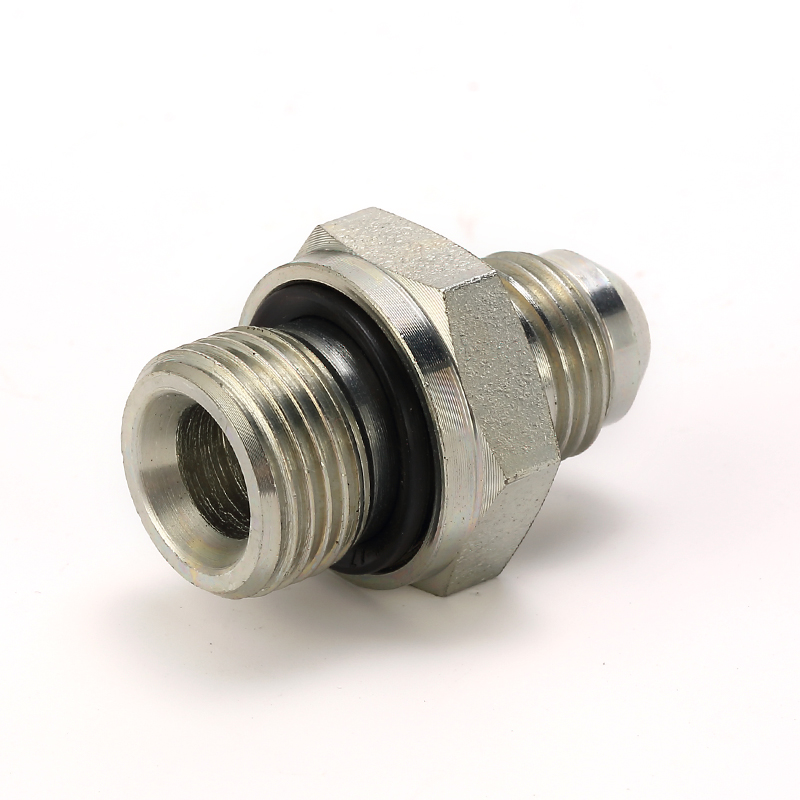

    BSP Male Captive Seal Fitting | JIC 74° Cone Male Adapter | Carbon Steel & SS
