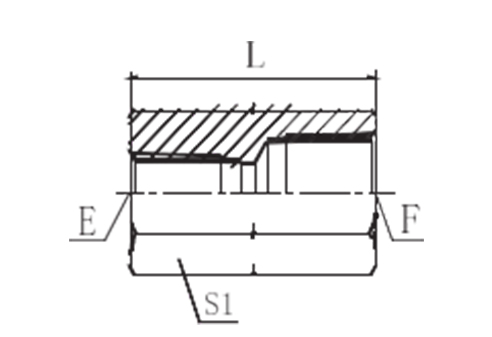

THREAD DIMENSIONS PART NO. E F L S1 7T-02 R1/8"X28 R1/8"X28 20 14 7T-02-04 R1/8"X28 R1/4"X19 30 19 7T-04 R1/4"X19 R1/4"X19 30 19 7T-04-06 R1/4"X19 R3/8"X19 30 22 7T-04-08 R1/4"X19 R1/2"X14 40 27 7T-06 R3/8"X19 R3/8"X19 30 22 7T-06-08 R3/8"X19 R1/2"X14 40 27 7T-06-12 R3/8"X19 R3/4"X14 37 36 7T-08 R1/2"X14 R1/2"X14 40 27 7T-08-12 R1/2"X14 R3/4"X14 42 36 7T-12 R3/4"X14 R3/4"X14 42 36 7T-12-16 R3/4"X14 R1"X11 50 41 7T-16 R1"X11 R1"X11 50 41 7T-16-20 R1"X11 R1.1/4"X11 52 50 7T-20 R1.1/4"X11 R1.1/4"X11 55 50 7T-24 R1.1/2"X11 R1.1/2"X11 55 55 7T-32 R2"X11 R2"X11 65 70
PEHEL/BSPT FEMALE
PEHEL Hydraulic Model: P7T
QTY:
FEMALE NPT ADAPTER
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: ADAPTER
Thread Type: NPT FEMALE
ABOUT THE ITEM:
1. P7T is straight BSPT female‑to‑female adapter (Rc internal tapered thread), including equal and reducer specifications complying with ISO 7‑1 standard.
2. Tapered thread‑on‑thread engagement delivers reliable sealing when matched with BSPT male threaded connections.
3. Broad size coverage ranges from Rc1/8" up to Rc2", supporting same‑size joint and different‑size pipeline reduction conversion.
4. Precisely CNC‑machined carbon‑steel body with zinc‑plated finish, ensuring good interchangeability and corrosion resistance.
5. Compact straight coupler widely used for industrial manifolds, valves and mobile hydraulic equipment piping assembly.
