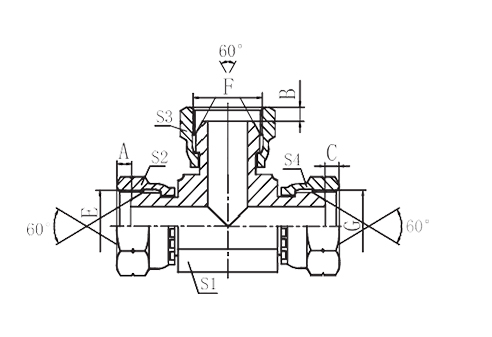

THREAD DIMENSIONS PART NO. E F G A,C B S1 S2,S4 S3 DB-02 G1/8"X28 G1/8"X28 G1/8"X28 6 6 11 14 14 DB-04 G1/4"X19 G1/4"X19 G1/4"X19 5 5 11 19 19 DB-06 G3/8"X19 G3/8"X19 G3/8"X19 6.5 6.5 14 22 22 DB-08 G1/2"X14 G1/2"X14 G1/2"X14 7.8 7.8 19 27 27 DB-10 G5/8"X14 G5/8"X14 G5/8"X14 9 9 22 30 30 DB-12 G3/4"X14 G3/4"X14 G3/4"X14 10.5 10.5 24 32 32 DB-12-08-12 G3/4"X14 G1/2"X14 G3/4"X14 10.5 7.8 24 32 27 DB-16 G1"X11 G1"X11 G1"X11 11 11 30 41 41 DB-16-12-16 G1"X11 G3/4"X14 G1"X11 11 10.5 30 41 32 DB-20 G1.1/4"X11 G1.1/4"X11 G1.1/4"X11 11.5 11.5 36 50 50 DB-24 G1.1/2"X11 G1.1/2"X11 G1.1/2"X11 12.5 12.5 48 55 55 DB-32 G2"X11 G2"X11 G2"X11 17 17 55 70 70
Pehel Custom Fitting | BSP Female 60°Cone Tee Hydraulic Branch Connector
PEHEL Hydraulic Model: PDB
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type: BSP female 60 degree cone tee hydraulic fitting
Thread Type: BSP female thread, 60° cone seat
About the item:
- 1.This BSP female 60°Cone tee provides stable three-way split pipeline connection for various hydraulic equipment.
- 2.Precision 60 degree cone seat and standard BSP female thread ensure tight sealing without leakage under high working pressure.
- 3.Made of carbon steel & stainless steel with silver zinc plating, this hydraulic tee connector has excellent anti-corrosion performance.
- 4.Compact 3-way tee design simplifies pipeline branching layout, saving installation space and cutting assembly time.
