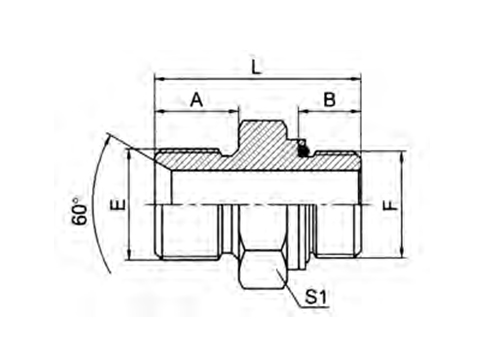

THREAD O-RING DIMENSIONS PART NO. E F F A B S1 L 1BH-02-10 G1/8"X28 M10X1 O08.1X1.6 10 8.5 14 25 1BH-02-12 G1/8"X28 M12X1.5 O09.3X2.4 10 11 17 28 1BH-04-12 G1/4"X19 M12X1.5 O09.3X2.4 12 11 19 30 1BH-04-14 G1/4"X19 M14X1.5 O11.3X2.4 12 11 19 31.5 1BH-04-16 G1/4"X19 M16X1.5 O13.3X2.4 12 11.5 22 31.5 1BH-06-14 G3/8"X19 M14X1.5 O11.3X2.4 13.5 11 22 35 1BH-06-16 G3/8"X19 M16X1.5 O13.3X2.4 13.5 11.5 22 33 1BH-06-18 G3/8"X19 M18X1.5 O15.3X2.4 13.5 12.5 24 36.5 1BH-08-18 G1/2"X14 M18X1.5 O15.3X2.4 16 12.5 27 41 1BH-08-22 G1/2"X14 M22X1.5 O19.3X2.4 16 13 27 41.5 1BH-10-22 G5/8"X14 M22X1.5 O19.3X2.4 17.5 13 30 43 1BH-12-16 G3/4"X14 M16X1.5 O13.3X2.4 18.5 11.5 32 43.5 1BH-12-22 G3/4"X14 M22X1.5 O19.3X2.4 18.5 13 32 45 1BH-12-27 G3/4"X14 M27X2 O23.5X3.0 18.5 16 32 45.5 1BH-16-27 G1"X11 M27X2 O23.5X3.0 20.5 16 41 49 1BH-16-33 G1"X11 M33X2 O29.5X3.0 20.5 16 41 49.5 1BH-20-42 G1.1/4"X11 M42X2 O38.5X3.0 20.5 16 50 51.5 1BH-24-48 G1.1/2"X11 M48X2 O44.5X3.0 23 17.5 55 55.5
PEHEL / 1BH / Hydraulic Adapter BSP Male Double Use for 60° Cone Seat
PEHEL Hydraulic Model: P1BH
QTY:
Hydraulic Adaptor BSP Male With Bonded Seal Carbon Steel Threaded Fitting
Material: Carbon steel
Surface Treatment: White Zinc Plating
Brand: PEHEL, OEM
Color: Silver
Connector Type: Straight
Thread: BSP
1.PEHEL BSP male adapter works with both 60° cone seats and bonded seal washers for flexible installation.
2.Zinc-plated carbon steel body provides excellent corrosion resistance and reliable performance in oil‑laden environments.
3.Precision BSP parallel threads ensure leak‑tight joints when paired with standard female ports or adapters.
4.Eliminates the need for different fittings, reducing inventory costs and simplifying spare parts management.
5.Ready for immediate dispatch, making it ideal for urgent hydraulic system repairs and field maintenance tasks.
