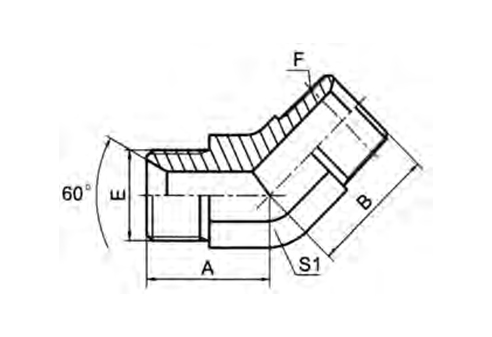

THREAD O-RING DIMENSIONS PART NO. E F F A B S1 S2 1BG4-04OG G1/4"X19 G1/4"X19 O111 22 28 14 19 1BG4-04-06OG G1/4"X19 G3/8"X19 O113 21 30 16 22 1BG4-04-08OG G1/4"X19 G1/2"X14 O115 22.5 36 22 27 1BG4-06OG G3/8"X19 G3/8"X19 O113 21 30 16 22 1BG4-06-08OG G3/8"X19 G1/2"X14 O115 23.5 36 22 27 1BG4-08OG G1/2"X14 G1/2"X14 O115 27 36 22 27 1BG4-12OG G3/4"X14 G3/4"X14 O119 32 42 27 32 1BG4-12-16OG G3/4"X14 G1"X11 O217 32.5 44 33 41 1BG4-16OG G1"X11 G1"X11 O217 34 44 33 41 1BG4-20OG G1.1/4"X11 G1.1/4"X11 O222 38.5 47.5 41 50 1BG4-24OG G1.1/2"X11 G1.1/2"X11 O224 44 51.5 48 55
45° Elbow BSP Male Hydraulic Fitting for 60° Seat Connection | Carbon Steel & Stainless Steel Adapter
PEHEL Hydraulic Model: P1BG4-OG
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: BSP
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Space-saving angle – 45° elbow design allows smooth directional change in compact hydraulic layouts.
2.Dual material choice – Available in carbon steel for strength or stainless steel for corrosion resistance.
3.Secure sealing – Precision-machined BSP male threads with 60° seat ensure leak-free performance.
4.Surface protection – Silver zinc plating extends service life in humid or corrosive environments.
5.Wide compatibility – Matches standard BSP hydraulic assemblies across industrial and agricultural equipment.
6.Custom branding – OEM service under Pehel or your private label for market flexibility.
