90º BSPP MALE/BSPT FEMALE

90º BSPP MALE/BSPT FEMALE

PEHEL Hydraulic Model: P5BT9

QTY:

  • Material: Carbon steel

    Brand: Pehel

    Color: Silver

    Connector Type: Elbow

    Thread Type: BSPP/BSPT


  • About the item:

    1. 1.Converts metric threads to BSPP adapter configurations.

    2. 2.Acts as a compact reducer for port size stepping.

    3. 3.Functions as a versatile hose adapter for flexible lines.

    4. 4.Combines reducer and BSPP adapter roles in one fitting.

    5. 5. One-piece hose adapter design eliminates leak points.


  • Specification
  • You May Also Like

  • PART NO.

    		THREAD DIMENSIONS
    E F A B S1
    P5BT9-04-02 G1/4"X19 Rc1/8"X28 25.5 20 16
    P5BT9-04 G1/4"X19 Rc1/4"X19 27.5 25 19
    P5BT9-04-06 G1/4"X19 Rc3/8"X19 30.5 27 24
    P5BT9-06-04 G3/8"X19 Rc1/4"X19 28.5 25 19
    P5BT9-06 G3/8"X19 Rc3/8"X19 32 27 24
    P5BT9-06-08 G3/8"X19 Rc1/2"X14 35.5 31.5 30
    P5BT9-08-06 G1/2"X14 Rc3/8"X19 35.5 27 24
    P5BT9-08 G1/2"X14 Rc1/2"X14 38.5 31.5 30
    P5BT9-08-12 G1/2"X14 Rc3/4"X14 41 37 33
    P5BT9-12-08 G3/4"X14 Rc1/2"X14 41.5 31.5 30

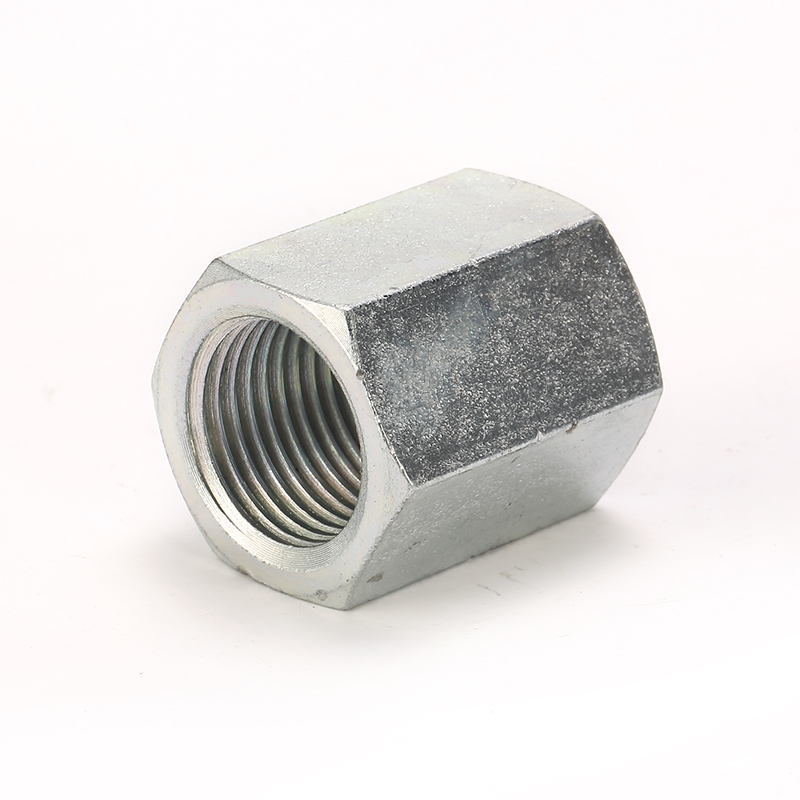

  • Pehel/P7B/BSPP Fixed Female Adapter
    Details

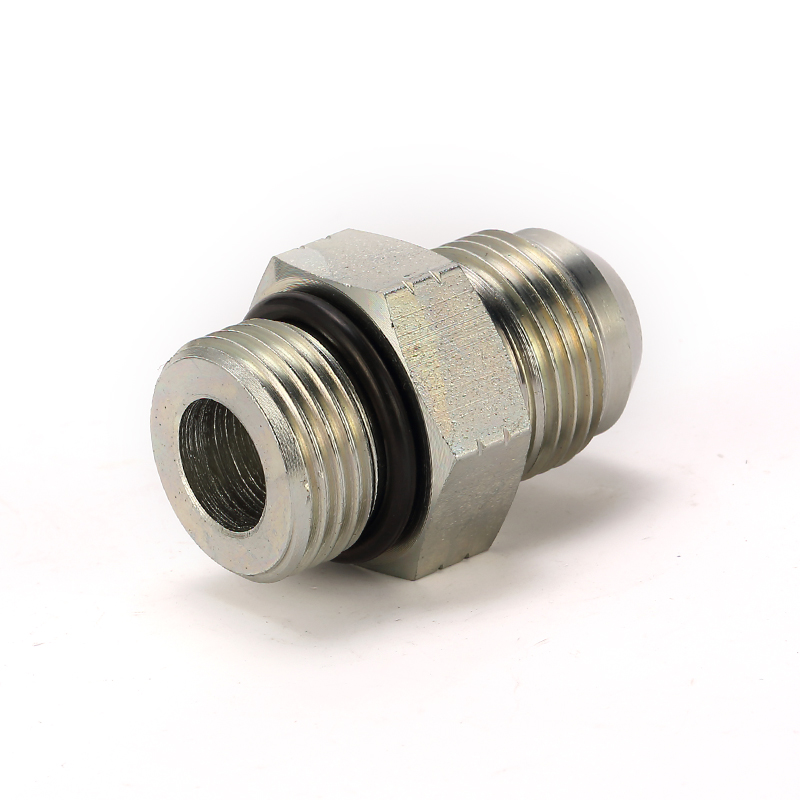

    Pehel/P1JO/JIC to SAE O-ring Male Adapter

    Details

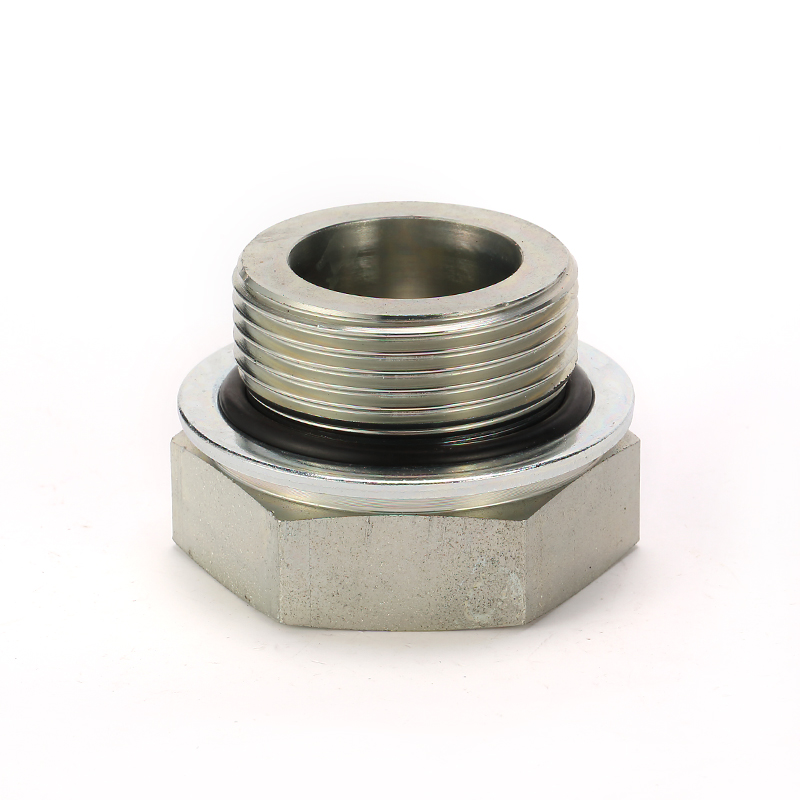

    Pehel/P4G/BSPP Male Flat Face Plug

    Details

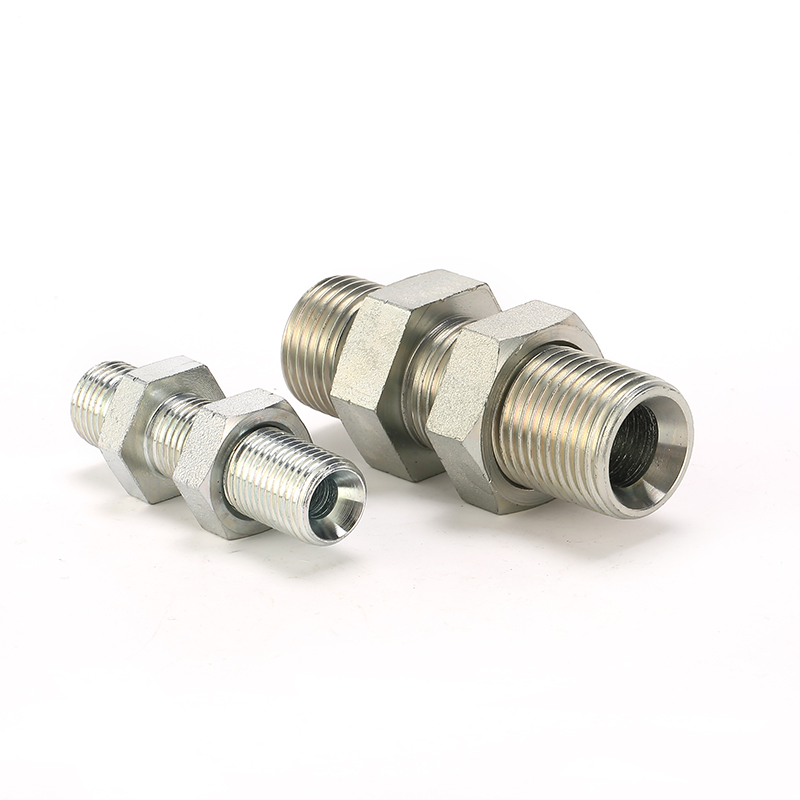

    Pehel/P6B/BSPP Bulkhead Adapter with Lock Nut
