Pehel/6B-WD/Male BSP 60deg Cone Straight Bulkhead Adapter With Captive Seal

Pehel/6B-WD/Male BSP 60deg Cone Straight Bulkhead Adapter With Captive Seal

PEHEL Hydraulic Model: P6B-WD

QTY:

  • Material: Carbon steel

    Brand: Pehel, OEM

    Color: Silver Zinc plating

    Connector Type: Straight

    Thread Type: BSP 60° Cone


    About the item:

    1.Easy Installation – Bulkhead design allows one-side access mounting, simplifying assembly in confined spaces.

    2.Chamfered tube entry guides tubing for error-free assembly, reducing installation misalignment that leads to premature seal wear.

    3.Wide operating temperature range from -40℃ to +120℃, stable performance in extreme cold northern mines and high-temperature metallurgy workshops.

  • Specification
  • You May Also Like

  • PART NO.

    		THREAD DIMENSIONS
    E F A B S1 L
    P6B-04-WD G1/4"X19 G1/4"X19 35 12 19 55
    P6B-06-WD G3/8"X19 G3/8"X19 35 12 22 57.5
    P6B-08-WD G1/2"X14 G1/2"X14 39 14 27 66
    P6B-12-WD G3/4"X14 G3/4"X14 42 16 32 72
    P6B-16-WD G1"X11 G1"X11 50 18 41 84
    P6B-20-WD G1.1/4"X11 G1.1/4"X11 52 20 50 90
    P6B-24-WD G1.1/2"X11 G1.1/2"X11 56 22 55 96

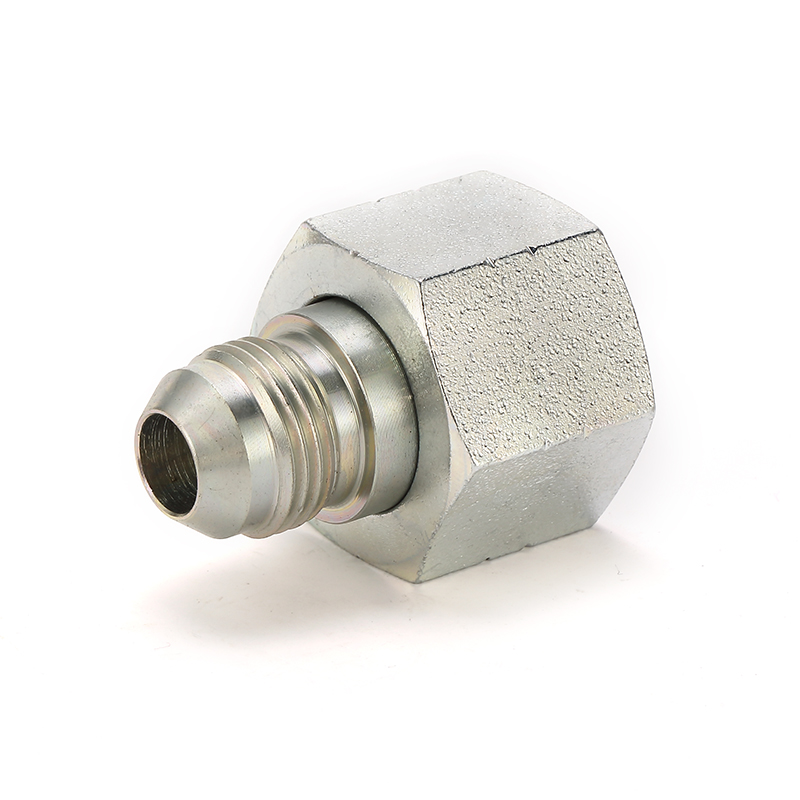

  • Male jic 74deg cone-female jic straight adapter
    Details

    Carbon steel straight female bsp 60deg cone adapter

    Details

    45deg elbow female metric 24deg cone H.T. hose fitting

    Details

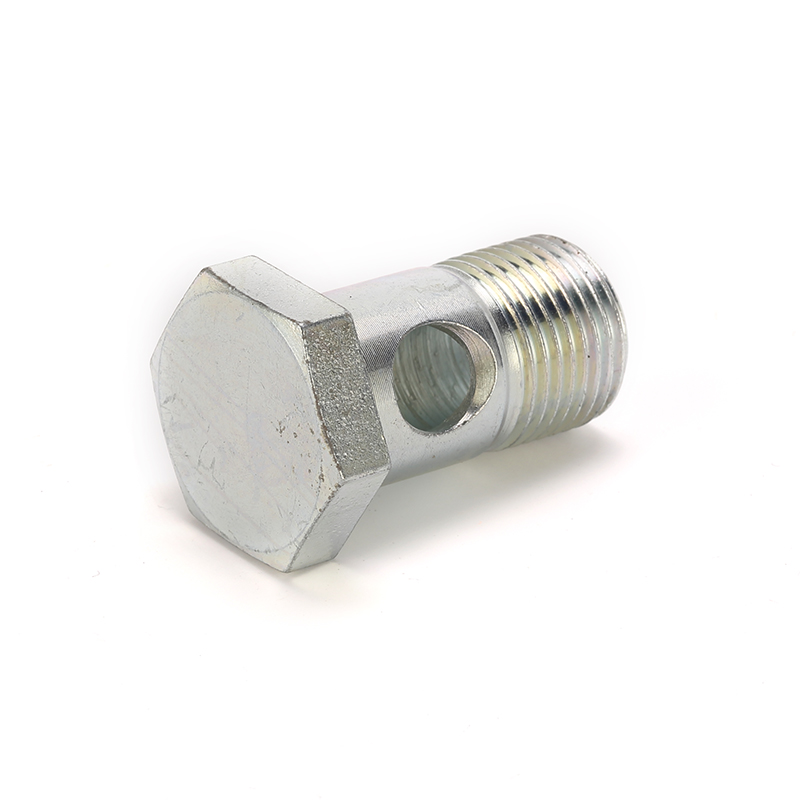

    High quality carbon steel metric banjo bolt
