PEHEL |45º BSPT MALE/BSP FEMALE HOSE ADAPTER |QUICK DELIVERY

PEHEL |45º BSPT MALE/BSP FEMALE HOSE ADAPTER |QUICK DELIVERY

PEHEL Hydraulic Model: P2TB4

QTY:

  • Material: Carbon steel, Stainless Steel, Aluminium, Brass

    Brand: Pehel, OEM

    Color: Silver

    Connector Type: 45°

    Thread Type: Hydraulic Hose Fitting

  • 1. WHITE ZINC PLATING SURFACE TREATMENT

    2. MATERIA HIGH STRENGTH CARBON STEEL L

    3. STANDARD SIZE, THREADS ERFECT MATCH FOR HYDRAULIC HOSES

  • Specification
  • You May Also Like

  • PART NO.

    		THREAD DIMENSIONS
    E F A B S1 S2
    P2TB4-04 R1/4"-19 G1/4"-19 21 5.5 14 19
    -04-06 R1/4"-19 G3/8"-19 21 6.3 14 22
    -06-04 R3/8"-19 G1/4"-19 23 5.5 16 19
    -06 R3/8"-19 G3/8"-19 23 6.3 16 22
    -06-08 R3/8"-19 G1/2"-14 24 7.5 19 27
    -08-06 R1/2"-14 G3/8"-19 29.5 6.3 22 22
    -08 R1/2"-14 G1/2"-14 29.5 7.5 22 27
    -08-12 R1/2"-14 G3/4"-14 30 10.9 24 32
    -12-08 R3/4"-14 G1/2"-14 30.5 7.5 27 27
    -12 R3/4"-14 G3/4"-14 30.5 10.9 27 32
    -12-16 R3/4"-14 G1"-11 31.5 11.7 30 41
    -16-12 R 1"-11 G3/4"-14 38 10.9 33 32
    -16 R 1"-11 G1"-11 38 11.7 33 41

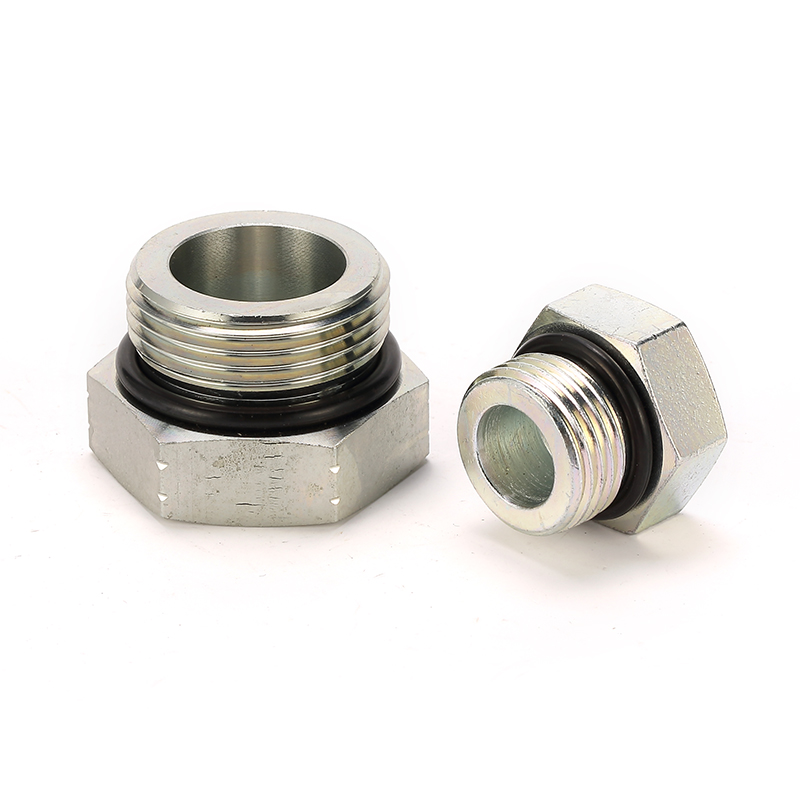

  • HYDRAULIC SAE O-RING BOSS HSOE PLUG
    Details

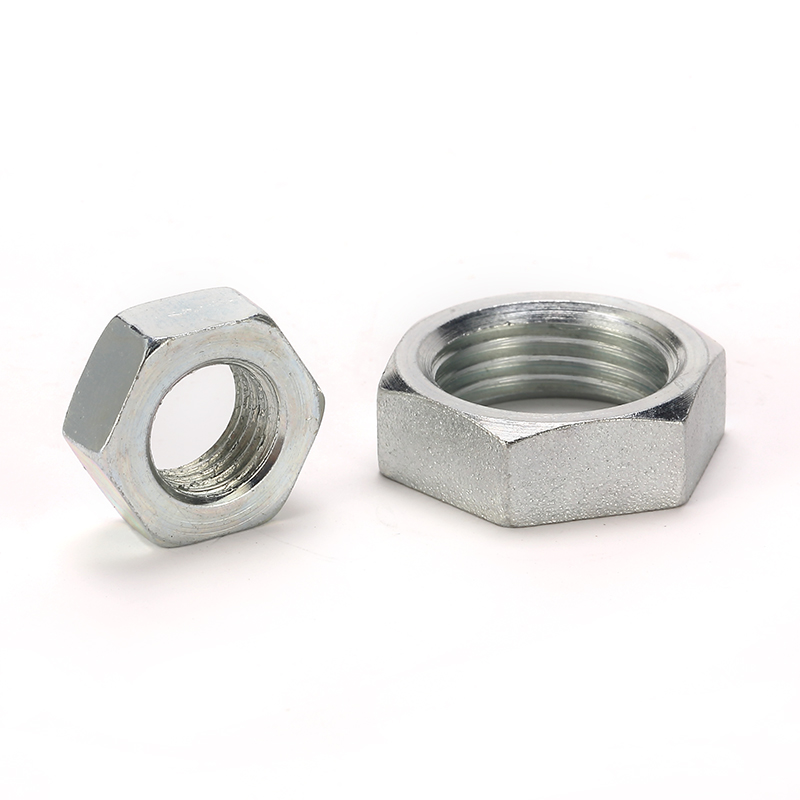

    HYDRAULIC JIC LOCK NUT

    Details

    HYDRAULIC JIC THREAD HOSE ADAPTER

    Details

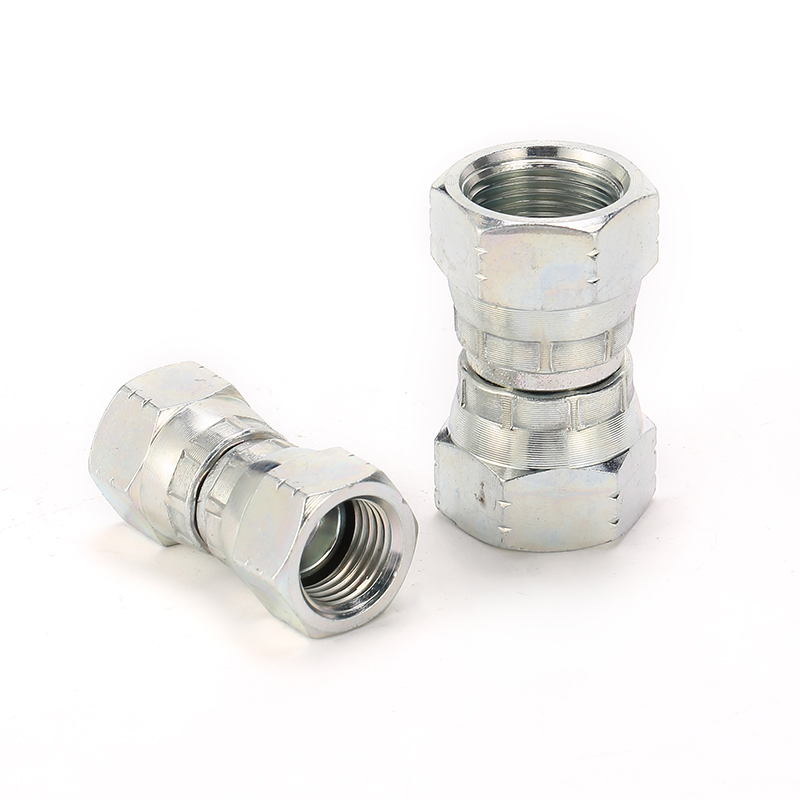

    HYDRAULIC BSP MALE AND FEMALE HOSE ADAPTER
