PART NO. 代号 FLANGE SIZE 法兰型号 软管 HOSE BORE - 公称内径 DN 软管 HOSE BORE - 标号 DASH 尺寸 A 尺寸 C 尺寸 D 尺寸 H 尺寸 L 87993-12-12 3/4" 20 12 68.5 41.3 32 71.5 14.3 87993-16-12 1" 20 12 68.5 47.6 38 72.5 14.3 87993-16-16 1" 25 16 79.3 47.6 38 78.5 14.3 87993-20-16 1.1/4" 25 16 79.3 54 44 79.5 14.3 87993-20-20 1.1/4" 32 20 106 54 44 90.5 14.3 87993-24-20 1.1/2" 32 20 106 63.5 51 92.5 14.3 87993-24-24 1.1/2" 40 24 124.3 63.5 51 105 14.3

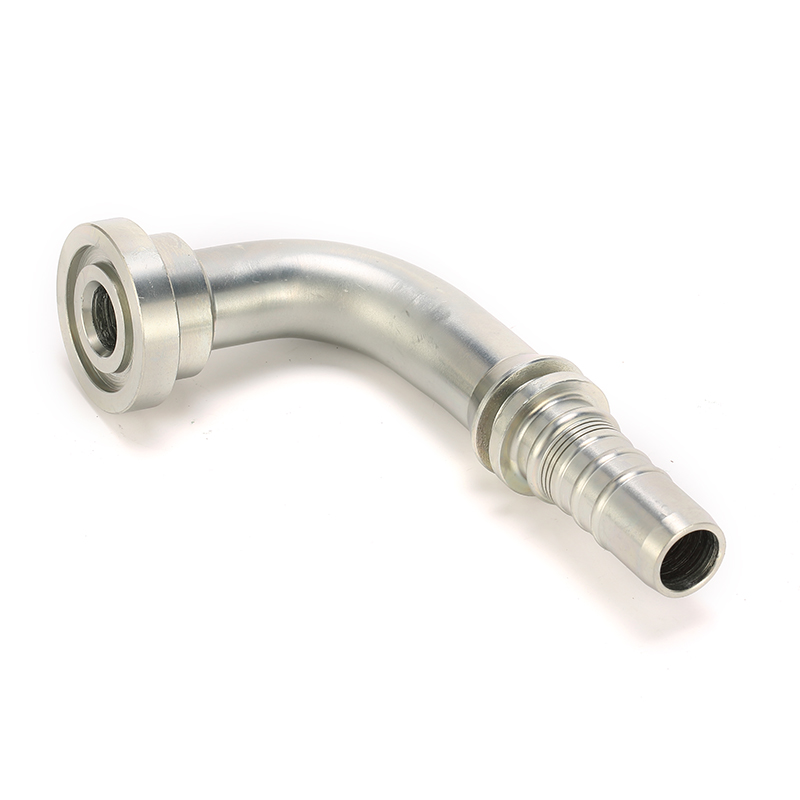

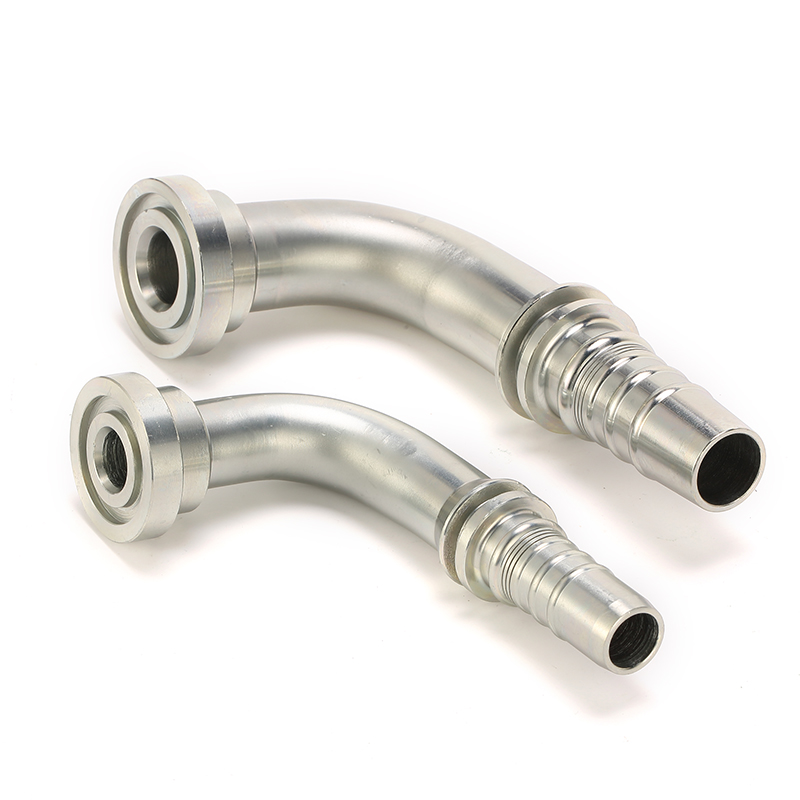

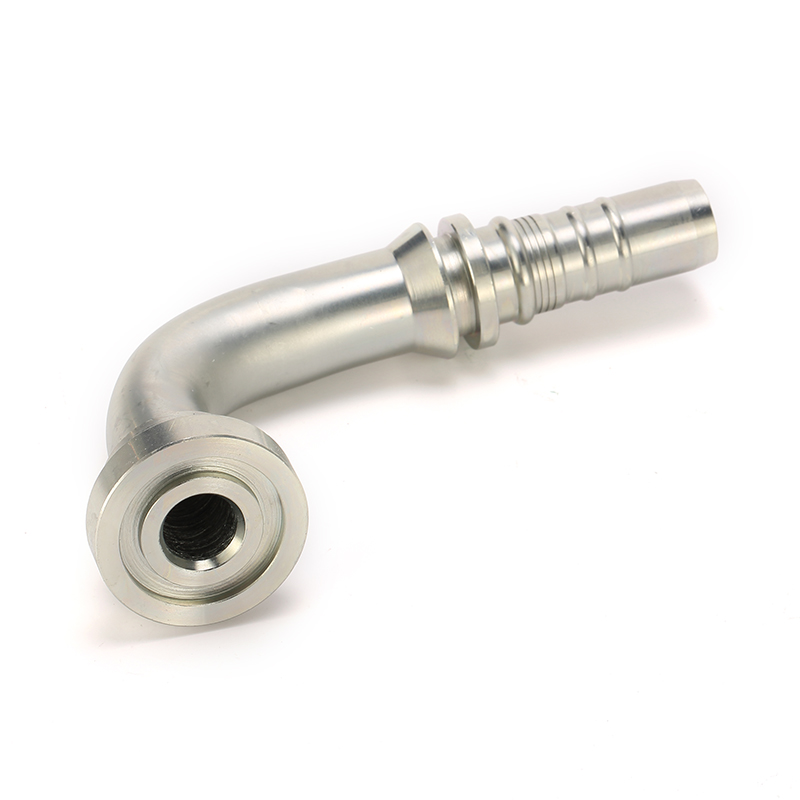

90° SAE Interlock Flange
PEHEL Hydraulic Model: 87693
QTY:
China 90° SAE Interlock 6000psl Flange Carbon Steel Hose Fitting
- 90° SEA Flange 9000 PSI
