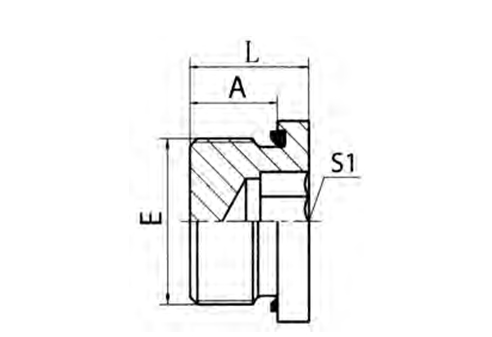

PART NO. THREAD CAPTIVE DIMENSIONS E E A L S1 4MN-10WD M10X1 WD-B02 8 12 5 4MN-12WD M12X1.5 WD-M12 12 17 6 4MN-14WD M14X1.5 WD-B04 12 17 6 4MN-16WD M16X1.5 WD-M16 12 17 8 4MN-18WD M18X1.5 WD-M18 12 17 8 4MN-20WD M20X1.5 WD-M20 14 19 10 4MN-22WD M22X1.5 WD-M22 14 19 10 4MN-26WD M26X1.5 WD-B12 16 21 12 4MN-27WD M27X2 WD-B12 16 21 12 4MN-33WD M33X2 WD-B16 18 24.5 17 4MN-42WD M42X2 WD-B20 20 26.5 22 4MN-48WD M48X2 WD-B24 22 28.5 24

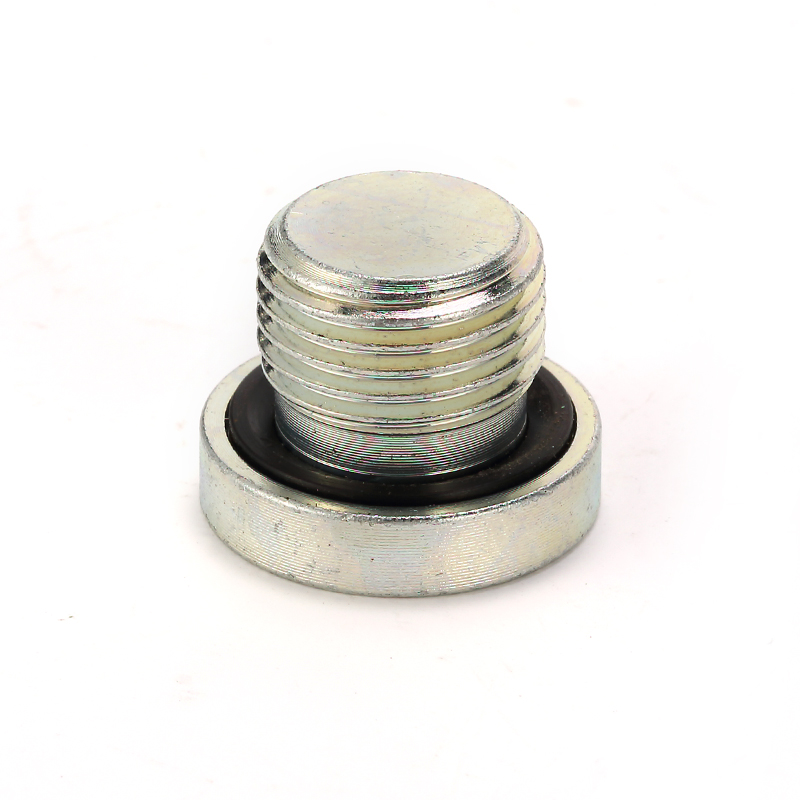

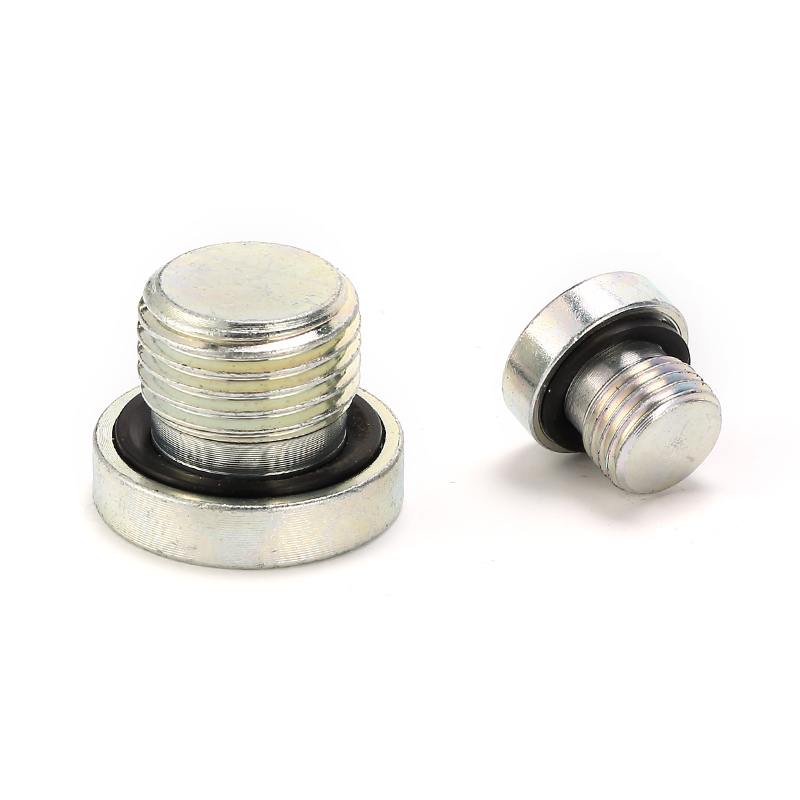

Metric Male Captive Seal Hollow Hex Plug
PEHEL Hydraulic Model: P4MN-WD
QTY:
