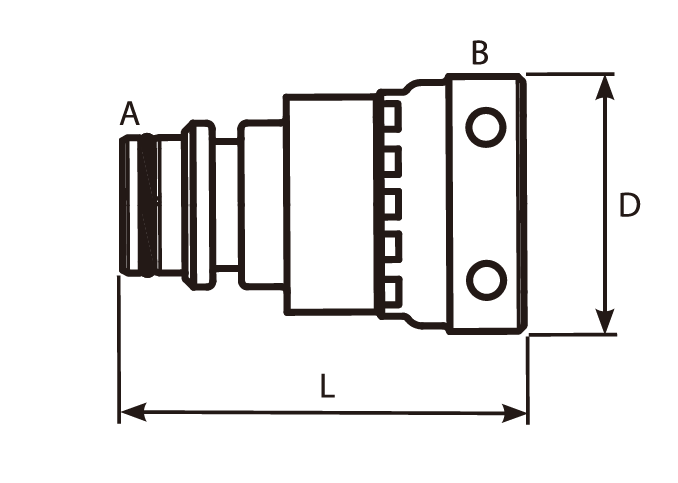

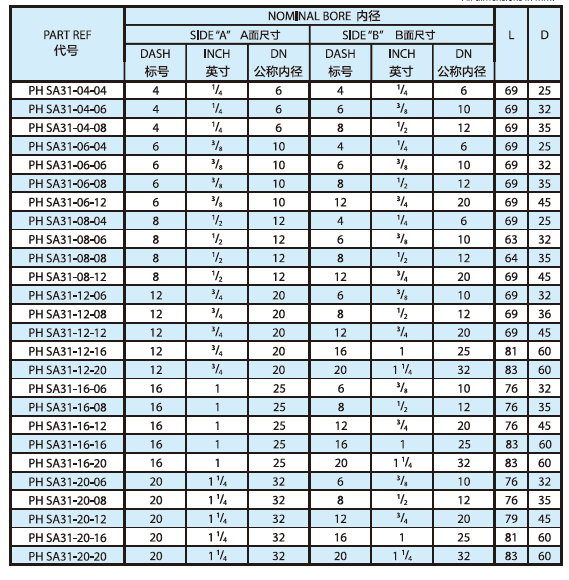

PART REF 代号 SIDE"A" A 面尺寸 SIDE"B" B 面尺寸 L D DASH 标号 INCH 英寸 DN 公称内径 DASH 标号 INCH 英寸 DN 公称内径 PH SA31-04-04 4 1/4 6 4 1/4 6 69 25 PH SA31-04-06 4 1/4 6 6 3/8 10 69 32 PH SA31-04-08 4 1/4 6 8 1/2 12 69 35 PH SA31-06-04 6 3/8 10 4 1/4 6 69 25 PH SA31-06-06 6 3/8 10 6 3/8 10 69 32 PH SA31-06-08 6 3/8 10 8 1/2 12 69 35 PH SA31-06-12 6 3/8 10 12 3/4 20 69 45 PH SA31-08-04 8 1/2 12 4 1/4 6 69 25 PH SA31-08-06 8 1/2 12 6 3/8 10 63 32 PH SA31-08-08 8 1/2 12 8 1/2 12 64 35 PH SA31-08-12 8 1/2 12 12 3/4 20 69 45 PH SA31-12-06 12 3/4 20 6 3/8 10 69 32 PH SA31-12-08 12 3/4 20 8 1/2 12 69 36 PH SA31-12-12 12 3/4 20 12 3/4 20 69 45 PH SA31-12-16 12 3/4 20 16 1 25 81 60 PH SA31-12-20 12 3/4 20 20 1 1/4 32 83 60 PH SA31-16-06 16 1 25 6 3/8 10 76 32 PH SA31-16-08 16 1 25 8 1/2 12 76 35 PH SA31-16-12 16 1 25 12 3/4 20 76 45 PH SA31-16-16 16 1 25 16 1 25 83 60 PH SA31-16-20 16 1 25 20 1 1/4 32 83 60 PH SA31-20-06 20 1 1/4 32 6 3/8 10 76 32 PH SA31-20-08 20 1 1/4 32 8 1/2 12 76 35 PH SA31-20-12 20 1 1/4 32 12 3/4 20 79 45 PH SA31-20-16 20 1 1/4 32 16 1 25 81 60 PH SA31-20-20 20 1 1/4 32 20 1 1/4 32 83
PEHEL | Straight Staple Male - Hydraulic Swivel Female Adaptor| Strict Factory QC Inspection
PEHEL Hydraulic Model: Series SA31
QTY:
1. Ready Stock Fast Dispatch
2. Low MOQ Support OEM ODM
3. Strict Factory QC Inspection
4. Custom Size & Surface Treatment Available
1. Excellent pressure resistance, suitable for construction machinery, hydraulic stations
2. High strength carbon steel with zinc plating, anti-rust & wear resistant
3. SS304/SS316 stainless steel optional, fit marine & corrosive working environment
4. Hardened thread surface, long service life under frequent
