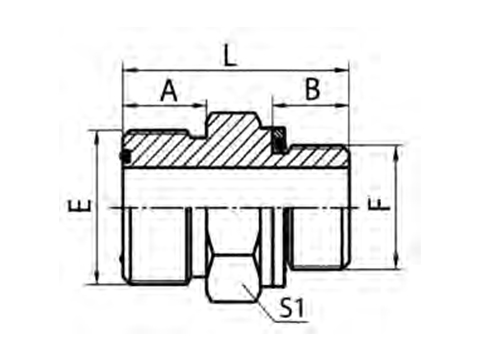

PART NO. THREAD O-RING DIMENSIONS E F E F A B L S1 1FG-04-02 9/16"X18 G1/8"X28 O011 O011 10 9.5 27.5 17 1FG-04 9/16"X18 G1/4"X19 O011 O111 9.8 11 29 19 1FG-04-06 9/16"X18 G3/8"X19 O011 O113 9.8 11.5 31 22 1FG-06 11/16"X16 G3/8"X19 O012 O113 11.2 11.5 32.5 22 1FG-06-04 11/16"X16 G1/4"X19 O012 O111 11.2 11 30 19 1FG-06-08 11/16"X16 G1/2"X14 O012 O115 11.2 14 36.5 27 1FG-08 13/16"X16 G1/2"X14 O014 O115 12.8 14 38.5 27 1FG-08-06 13/16"X16 G3/8"X19 O014 O113 12.8 11.5 34.5 22 1FG-08-12 13/16"X16 G3/4"X14 O014 O119 12.8 15.5 42 32 1FG-10-08 1"X14 G1/2"X14 O016 O115 15.5 14 42.5 27 1FG-10-12 1"X14 G3/4"X14 O016 O119 15.5 15.5 44 32 1FG-12-08 1.3/16"X12 G1/2"X14 O018 O115 17 14 44 32 1FG-12 1.3/16"X12 G3/4"X14 O018 O119 17 15.5 45.6 32 1FG-12-16 1.3/16"X12 G1"X11 O018 O217 17 18 48 41 1FG-16-12 1.7/16"X12 G3/4"X14 O021 O119 17.5 15.5 47 38 1FG-16 1.7/16"X12 G1"X11 O021 O217 17.5 18 49.5 41 1FG-20 1.11/16"X12 G1.1/4"X11 O025 O222 17.5 20 55.5 50 1FG-20-16 1.11/16"X12 G1"X11 O025 O217 17.5 18 51.5 46 1FG-24 2"X12 G1.1/2"X11 O029 O224 17.5 21.5 57 55
Pehel | ORFS Male O-Ring to BSP Male O-Ring Straight Hydraulic Adapter Zinc Plated Carbon Steel
PEHEL Hydraulic Model: P1FG
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
About the item:
- 1.This ORFS Male O-Ring to BSP Male O-Ring hydraulic adapter adopts double O-ring face seal design to deliver zero leakage under high-pressure hydraulic working conditions。
- 2.Made of premium carbon steel with silver zinc plating, our ORFS & BSP male o-ring fitting owns great anti-rust performance for long-term machinery service。
- 3.Standard ORFS Male O-Ring and BSP Male O-Ring threads ensure perfect compatibility to connect two different hydraulic tubing systems easily。
- 4.Dual male O-ring hydraulic transition fitting supports custom OEM service, with optional stainless steel material for harsh corrosive working environments。
- 5.Precision machined thread of ORFS Male O-Ring / BSP Male O-Ring adapter reduces installation difficulty and maintains stable sealing under vibration scenarios。
