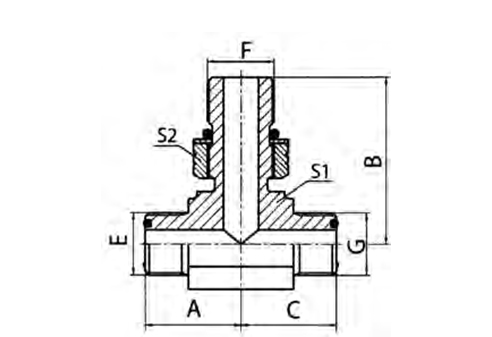

PART NO. THREAD O-RING DIMENSIONS E F G E F G A B C S1 S2 AFOF-04OG 9/16"X18 7/16"X20 9/16"X18 O011 O904 O011 23 30.3 23 14 17 AFOF-04-06-04OG 9/16"X18 9/16"X18 9/16"X18 O011 O906 O011 23 32 23 14 19 AFOF-06OG 11/16"X16 9/16"X18 11/16"X16 O012 O906 O012 27.5 35.5 27.5 19 19 AFOF-06-08-06OG 11/16"X16 3/4"X16 11/16"X16 O012 O908 O012 27 38 27 19 24 AFOF-08OG 13/16"X16 3/4"X16 13/16"X16 O014 O908 O014 31 40.5 31 22 24 AFOF-08-10-08OG 13/16"X16 7/8"X14 13/16"X16 O014 O910 O014 31 45.3 31 22 27 AFOF-08-12-08OG 13/16"X16 1.1/16"X12 13/16"X16 O014 O912 O014 34.5 54 34.5 27 32 AFOF-10OG 1"X14 7/8"X14 1"X14 O016 O910 O016 36.5 50.8 36.5 27 27 AFOF-10-12-10OG 1"X14 1.1/16”X12 1"X14 O016 O912 O016 36.5 52 36.5 27 32 AFOF-12OG 1.3/16"X12 1.1/16"X12 1.3/16"X12 O018 O912 O018 40.3 55.3 40.3 30 32 AFOF-16OG 1.7/16"X12 1.5/16"X12 1.7/16"X12 O021 O916 O021 41.5 59.3 41.5 36 41 AFOF-20OG 1.11/16"X12 1.5/8"X12 1.11/16"X12 O025 O920 O025 47.5 60.5 47.5 41 50 AFOF-24OG 2"X12 1.7/8"X12 2"X12 O029 O924 O029 53.5 68 53.5 50 55
ORFS MALE O-RING
PEHEL Hydraulic Model: PAFOF-OG
QTY:
