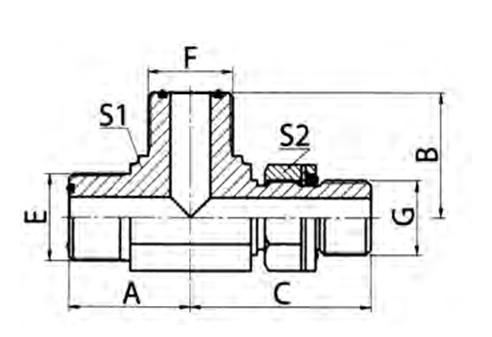

PART NO. THREAD O-RING DIMENSIONS E F G E F G A B C S1 S2 AFFH-04-04-14OG 9/16"X18 9/16"X18 M14X1.5 O011 O011 O11.3X2.4 23 23 33.5 14 19 AFFH-06-06-16OG 11/16"X16 11/16"X16 M16X1.5 O012 O012 O13.3X2.4 27 27 38 19 22 AFFH-08-08-22OG 13/16"X16 13/16"X16 M22X1.5 O014 O014 O19.3X2.4 31 31 44.5 22 27 AFFH-10-10-22OG 1"X14 1"X14 M22X1.5 O016 O016 O19.3X2.4 36.5 36.5 48 27 27 AFFH-12-12-27OG 1.3/16"X12 1.3/16"X12 M27X2 O018 O018 O23.5X3.0 40.5 40.5 50 30 32 AFFH-16-16-33OG 1.7/16"X12 1.7/16"X12 M33X2 O021 O021 O29.5X3.0 44.5 44.5 58.5 36 41
ORFS MALE O-RING
PEHEL Hydraulic Model: PAFFH-OG
QTY:
