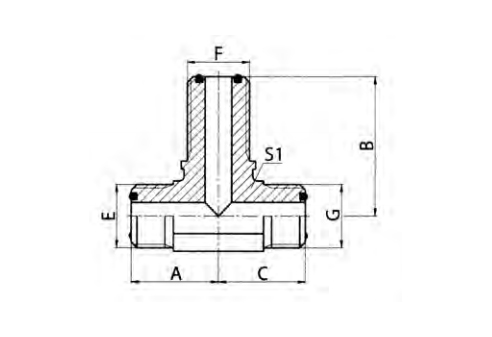

PART NO. THREAD O-RING DIMENSIONS E F G E F G A B C S1 S2 AF6FF-04 9/16"X18 9/16"X18 9/16”X18 O011 O011 O011 23 47 23 14 22 AF6FF-06 11/16"X16 11/16"X16 11/16"X16 O012 O012 O012 27 52 27 19 27 AF6FF-08 13/16"X16 13/16"X16 13/16"X16 O014 O014 O014 31 55.5 31 22 30 AF6FF-10 1"X14 1"X14 1"X14 O016 O016 O016 36.5 63 36.5 27 36 AF6FF-12 1.3/16"X12 1.3/16"X12 1.3/16"X12 O018 O018 O018 41 67.2 41 30 38 AF6FF-16 1.7/16"X12 1.7/16"X12 1.7/16"X12 O021 O021 O021 44.5 71.2 44.5 36 46 AF6FF-20 1.11/16"X12 1.11/16"X12 1.11/16"X12 O025 O025 O025 47.5 75.5 47.5 41 50 AF6FF-24 2"X12 2"X12 2"X12 O029 O029 O029 53.5 79.5 53.5 50 60
PEHEL/ ORFS MALE O-RING BULKHEAD BRANCH TEE
PEHEL Hydraulic Model: PAF6FF/PAF6FF-LN
QTY:

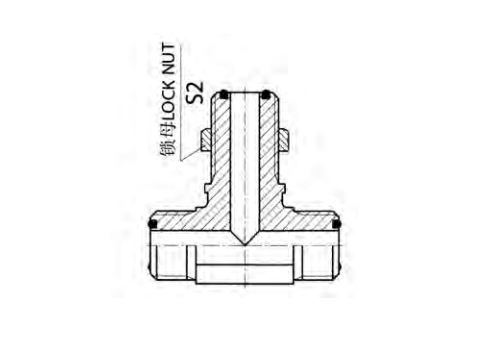

ORFS MALE O-RING BULKHEAD BRANCH TEE
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: TEE
Thread Type: ORFS MALE ORING
About the item:
1. PAF6FF / PAF6FF‑LN is ORFS male O‑ring bulkhead branch tee for panel‑mounted T‑type hydraulic flow splitting.
2. Three‑way O‑ring flat‑face sealing delivers zero‑leak performance complying with SAE J1453 standard for high‑pressure circuits.
3. Complete UNF thread sizes from 9/16"‑18 up to 2"‑12; LN variant features extended body for thick‑panel installation.
4. Precisely CNC‑machined carbon‑steel body with zinc‑plated finish, locknut available for stable panel fastening.
5. Bulkhead tee design simplifies through‑wall piping layout, widely applied for mobile and heavy‑duty industrial hydraulic systems.
