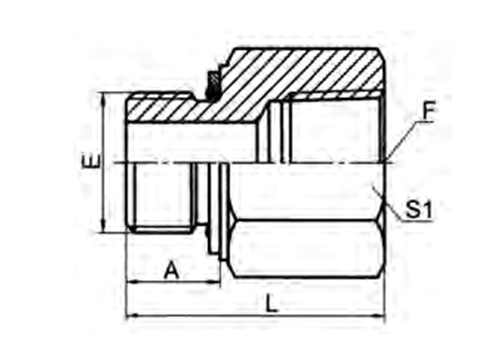

THREAD O-RING DIMENSIONS PART NO. E F E A L S1 5GN-02 G1/8"X28 Z1/8"X27 O011 9.5 24.5 17 5GN-02-04 G1/8"X28 Z1/4"X18 O011 9.5 29.5 19 5GN-04-02 G1/4"X19 Z1/8"X27 O111 11 26 19 5GN-04 G1/4"X19 Z1/4"X18 O111 11 31 19 5GN-04-06 G1/4"X19 Z3/8"X18 O111 11 33 22 5GN-06-04 G3/8"X19 Z1/4"X18 O113 11.5 30 22 5GN-06 G3/8"X19 Z3/8"X18 O113 11.5 35 22 5GN-08-04 G1/2"X14 Z1/4"X18 O115 14 27 27 5GN-08-06 G1/2"X14 Z3/8"X18 O115 14 34 27 5GN-08 G1/2"X14 Z1/2"X14 O115 14 43 30 5GN-12 G3/4"X14 Z3/4"X14 O119 15.5 44.5 36 5GN-16 G1"X11 Z1"X11.5 O217 18 54.5 41 5GN-20 G1.1/4"X11 Z1.1/4"X11.5 O222 20 55.5 50 5GN-24 G1.1/2"X11 Z1.1/2"X11.5 O224 21.5 57 60
Pehel | P5GN | Hydraulic BSP Male O-RING / NPT Female Hose Adapter
PEHEL Hydraulic Model: P5GN
QTY:
Material: Carbon steel
Brand: Pehel
Color: Silver
OEM Designed: Yes
Surface Treatment: Zinc Plated
Thread: NPT/BSPP
About the item:
1. Versatile fittings – connect BSP and NPT threaded systems seamlessly.
2. Precision BSP adapter – available in parallel (BSPP) or tapered (BSPT) options.
3. NPT compatible – tapered threads provide self-sealing, leak-tight connections.
4. Durable steel body – corrosion-resistant for high-pressure durability.
5. Easy installation – standard threads allow quick and secure assembly.
