PART NO. THREAD E HOSE BORE DIMENSIONS DN DASH C S2 Per hundred weight Weight per case P20111-10-03 M10X1 4 3 2.5 14 500 P20111-10-04 M10X1 6 4 2.5 14 1.9 500 P20111-12-04 M12X1.25 6 4 4 17 2.5 400 P20111-12-05 M12X1.25 6 4 4 17 3 400 P20111-14-04T M14X1.5 6 4 4.5 19 2.7 350 P20111-16-04T M16X1.5 6 4 4.5 22 3.3 300 P20111-16-05T M16X1.5 8 5 4.5 22 3.3 250 P20111-16-06 M16X1.5 10 6 4.5 22 4.8 200 P20111-18-05T M18X1.5 8 5 4 24 5.1 200 P20111-18-06T M18X1.5 10 6 4 24 4.8 150 P20111-20-08 M20X1.5 12 8 5.5 27 7.7 150 P20111-22-06T M22X1.5 10 6 5 27 7.8 125 P20111-22-08T M22X1.5 12 8 5 27 8.1 100 P20111-22-10 M22X1.5 16 10 5 27 8.7 250 P20111-24-10 M24X1.5 16 10 5 30 9.7 250 P20111-27-10DT M27X1.5 16 10 5.5 32 11.9 200 P20111-27-12D M27X1.5 20 12 5.5 32 14 180 P20111-30-12D M30X1.5 20 12 6 36 120 P20111-33-14 M33X2 22 14 7 41 100 P20111-36-12T M36X2 20 12 7 41 23.2 100 P20111-42-16T M42X2 25 16 8.5 50 40.3 50 P20111-45-20T M45X2 32 12 8.5 55 42.4 40 P20111-52-20T M52X2 32 14 9 60 30 P20111-52-24T M52X2 40 12 9 60 71.4 25 P20111-64-32T M64X2 50 16 14 75 15
PEHEL | Metric Female Multiseal Hydraulic Fitting, Hose Connector with Female Metric Threads
PEHEL Hydraulic Model: P20111-T
QTY:
20111 METRIC FEMALE MULTISEAL metric pipe fittings
Type: Metric Female Multiseal Hose Fitting
Thread: Metric Female
Sealing: Multiseal Cone Seat
Material: Carbon steel
Brand: PEHEL, OEM
Surface Treatment: Zinc‑plated
About the item:

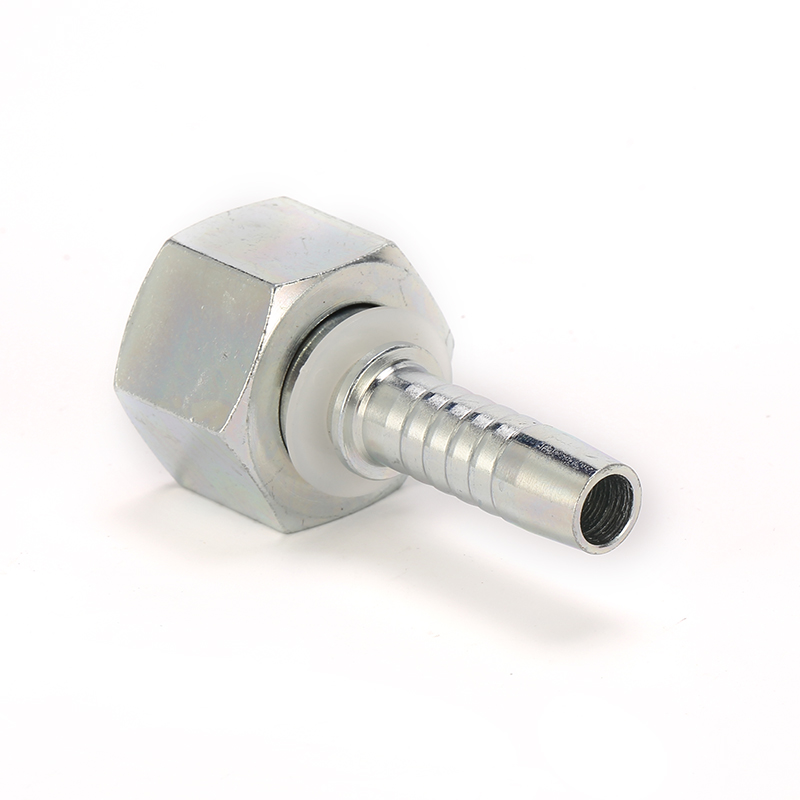

1.Metric female multiseal hose fitting, designed as a crimp‑style hydraulic adapter for hose assemblies requiring a reliable seal.
2.Features female metric threads with a multiseal cone seat design, providing effective sealing performance under hydraulic pressure.
3.The fitting body is crimped onto the hose end, creating a permanent and secure attachment.
4.Manufactured from high‑strength carbon steel with anti‑rust surface treatment for durability.
5.Precision machined threads and cone seating surface ensure consistent fit and leak‑free connections with standard metric male ends.
