PART NO.
THREAD
O-RING
DIMENSIONS
E
F
E
F
A
B
S1
S2
1EH4-12-10OG
M12X1.25
M10X1
8X1.9
O08.1X1.6
18
25.5
12
14
1EH4-14-12OG
M14X1.5
M12X1.5
10X2
O09.3X2.4
19.5
30
14
17
1EH4-16-14OG
M16X1.5
M14X1.5
11X1.9
O11.3X2.4
20
30.5
17
19
1EH4-18-16OG
M18X1.5
M16X1.5
13X2
O13.3X2.4
21.5
34
19
22
1EH4-22-18OG
M22X1.5
M18X1.5
16.1X2.4
O15.3X2.4
23
38
22
24
1EH4-27-22OG
M27X1.5
M22X1.5
20.1X2.4
O19.3X2.4
24.5
40.5
27
27
1EH4-30-27OG
M30X1.5
M27X2
24.1X2.4
O23.5X3.0
26
48
30
32
1EH4-36-33OG
M36X2
M33X2
30X3.1
O29.5X3.0
30.5
49.5
36
41
1EH4-39-33OG
M39X2
M33X2
32X3.1
O29.5X3.0
36
52
41
41
1EH4-42-42OG
M42X2
M42X2
35X3.1
O38.5X3.0
38
53
41
50
1EH4-45-42OG
M45X2
M42X2
38X3.1
O38.5X3.0
39
54
46
50
1EH4-52-48OG
M52X2
M48X2
40X3.1
O44.5X3.0
42
58.5
50
55

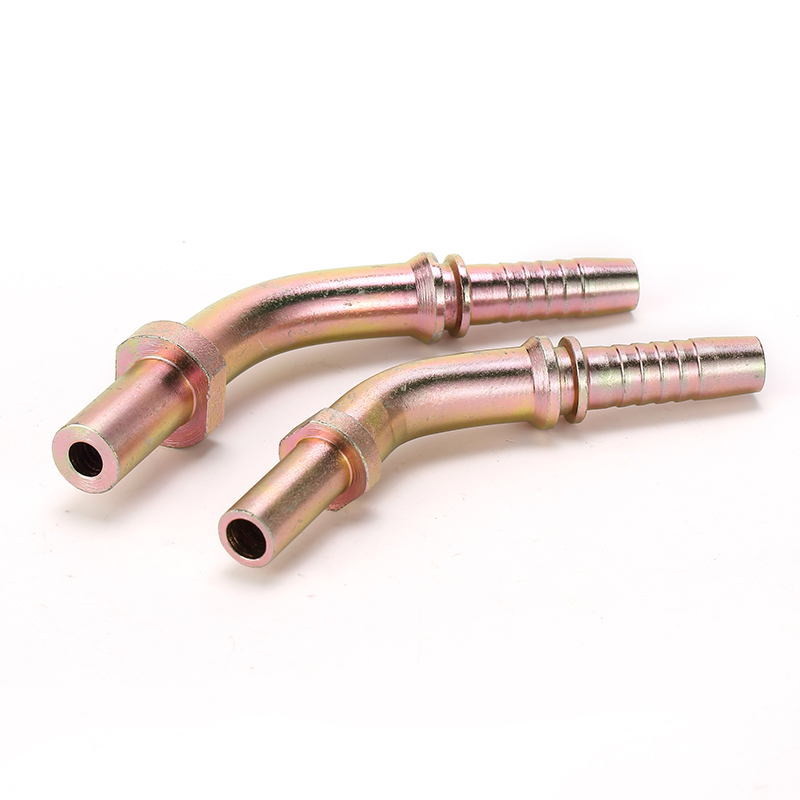

PEHEL/45° Elbow Metric Male O-ring
PEHEL Hydraulic Model: P1EH4-OG
QTY:
45° Elbow Metric Male O-ring
Material: Carbon steel
Brand: Pehel, OEM
Color: Silver
Connector Type: elbow
Thread Type: Metric male o-ring
About the item:
- 1. Model P1EH4‑OG is a 45‑degree adjustable elbow adapter with metric male O‑ring face‑seal ends complying with ISO 6149‑2 standard.
- 2. O‑ring face‑seal construction provides stable leak‑proof performance for high‑pressure hydraulic pipeline connections.
- 3. Comprehensive size selection covers multiple metric thread specifications for diverse pipe transition requirements.
- 4. Precisely CNC‑machined carbon‑steel body with zinc‑plated surface, good interchangeability and anti‑corrosion property.
- 5. 45‑degree angled layout optimizes hose routing, widely used for industrial and mobile hydraulic machinery assembly.
