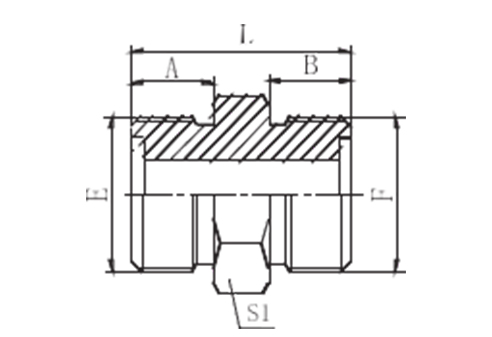

THREAD O-RING DIMENSIONS PART NO. E、F E、F A B L S1 1.00E-12 M12×1.25 8×1.9 11 11 28 14 1.00E-14 M14X1.5 10×2 11 11 28 17 1.00E-16 M16×1.5 11X1.9 11 11 28 17 1.00E-18 M18×1.5 13x2 11 11 28 19 1.00E-22 M22×1.5 16.1X2.4 12 12 32 24 1.00E-27 M27×1.5 20.1X2.4 13 13 36 30 1.00E-30 M30X1.5 24.1X2.4 14 14 39 32 1.00E-36 M36×2 30X3.1 16 16 43 38 1.00E-39 M39x2 32x3.1 18 18 49 41 1.00E-42 M42X2 35X3.1 20 20 53 46 1.00E-45 M45X2 38x3.1 21 21 55 46 1.00E-52 M52×2 40×3.1 22 22 59 55 1.00E-60 M60X2 45.6X3.1 24 24 65 65 1.00E-64 M64x2 50x3.1 27 27 71 70
Metric O-ring Male Flat Seat
PEHEL Hydraulic Model: P1E
QTY:
