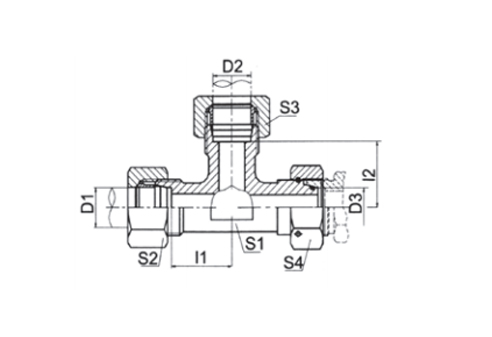

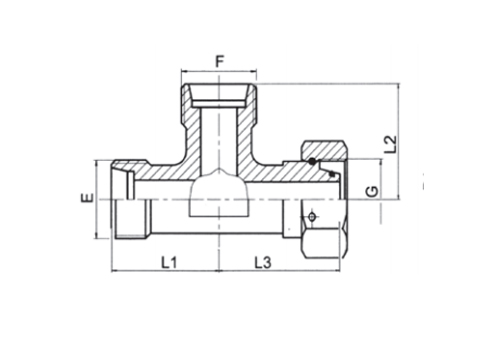

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E,F G D1,D2 D3 I1,I2 L1,L2 L3 S1 S2,S3 S4 CC-12 M12X1.5 M12X1.5 6 6 12 19 24 12 14 14 31.5 L CC-14 M14X1.5 M14X1.5 8 8 14 21 25 12 17 17 CC-16 M16X1.5 M16X1.5 10 10 15 22 27 14 19 19 CC-18 M18X1.5 M18X1.5 12 12 17 24 30 17 22 22 CC-22 M22X1.5 M22X1.5 15 15 21 28 33 19 27 27 CC-26 M26X1.5 M26X1.5 18 18 23.5 31 36 24 32 32 CC-30 M30X2 M30X2 22 22 27.5 35 40 27 36 36 16 L CC-36 M36X2 M36X2 28 28 30.5 38 44 36 41 41 CC-45 M45X2 M45X2 35 35 34.5 45 52.6 41 50 50 CC-52 M52X2 M52X2 42 42 40 51 61 50 60 60 CD-14 M14X1.5 M14X1.5 6 6 16 33 24 12 17 17 63 S CD-16 M16X1.5 M16X1.5 8 8 17 24 26 14 19 19 CD-18 M18X1.5 M18X1.5 10 10 17.5 25 29 17 22 22 CD-20 M20X1.5 M20X1.5 12 12 21.5 29 30 17 24 24 CD-22 M22X1.5 M22X1.5 14 14 22 30 33.1 19 27 27 CD-24 M24X1.5 M24X1.5 16 16 24.5 33 36 24 30 30 40 S CD-30 M30X2 M30X2 20 20 26.5 37 42 27 36 36 CD-36 M36X2 M36X2 25 25 30 42 47 36 46 46 CD-42 M42X2 M42X2 30 30 35.5 49 52 41 50 50 CD-52 M52X2 M52X2 38 38 41 57 60.5 50 60 60 31.5 S
Run Tee Fittings with Swivel NUT
PEHEL Hydraulic Model: PCC PCD/PCC-RN PCD-RN
