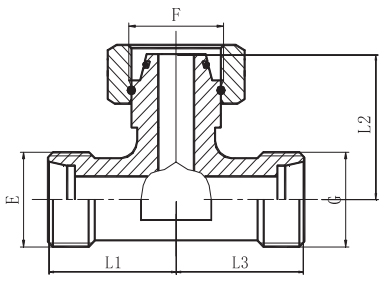

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E,G F D1,D3 D2 I1,I3 L1,L3 L2 S1 S2,S4 S3 BC-12 M12X1.5 M12X1.5 6 6 12 19 24 12 14 14 31.5 L BC-14 M14X1.5 M14X1.5 8 8 14 21 25 12 17 17 BC-16 M16X1.5 M16X1.5 10 10 15 22 27 14 19 19 BC-18 M18X1.5 M18X1.5 12 12 17 24 28 17 22 22 BC-22 M22X1.5 M22X1.5 15 15 21 28 31 19 27 27 BC-26 M26X1.5 M26X1.5 18 18 23.5 31 34 24 32 32 BC-30 M30X2 M30X2 22 22 27.5 35 36.5 27 36 36 16 L BC-36 M36X2 M36X2 28 28 30.5 38 40 36 41 41 BC-45 M45X2 M45X2 35 35 34.5 45 47.5 41 50 50 BC-52 M52X2 M52X2 42 42 40 51 54 50 60 60 BD-14 M14X1.5 M14X1.5 6 6 16 23 24.5 12 17 17 63 S BD-16 M16X1.5 M16X1.5 8 8 17 24 25.5 14 19 19 BD-18 M18X1.5 M18X1.5 10 10 17.5 25 28 17 22 22 BD-20 M20X1.5 M20X1.5 12 12 21.5 29 29.5 17 24 24 BD-22 M22X1.5 M22X1.5 14 14 22 30 32.5 19 27 27 BD-24 M24X1.5 M24X1.5 16 16 24.5 33 33.5 24 30 30 40 S BD-30 M30X2 M30X2 20 20 26.5 37 40.8 27 36 36 BD-36 M36X2 M36X2 25 25 30 42 46 36 46 46 BD-42 M42X2 M42X2 30 30 35.5 49 52 41 50 50 BD-52 M52X2 M52X2 38 38 41 57 55 50 60 60 31.5 S

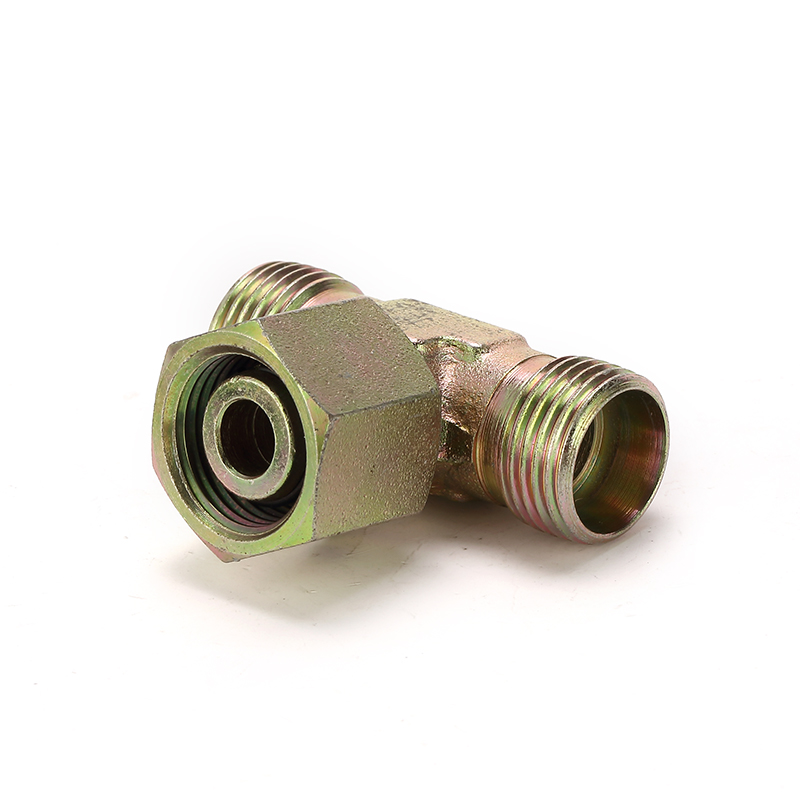

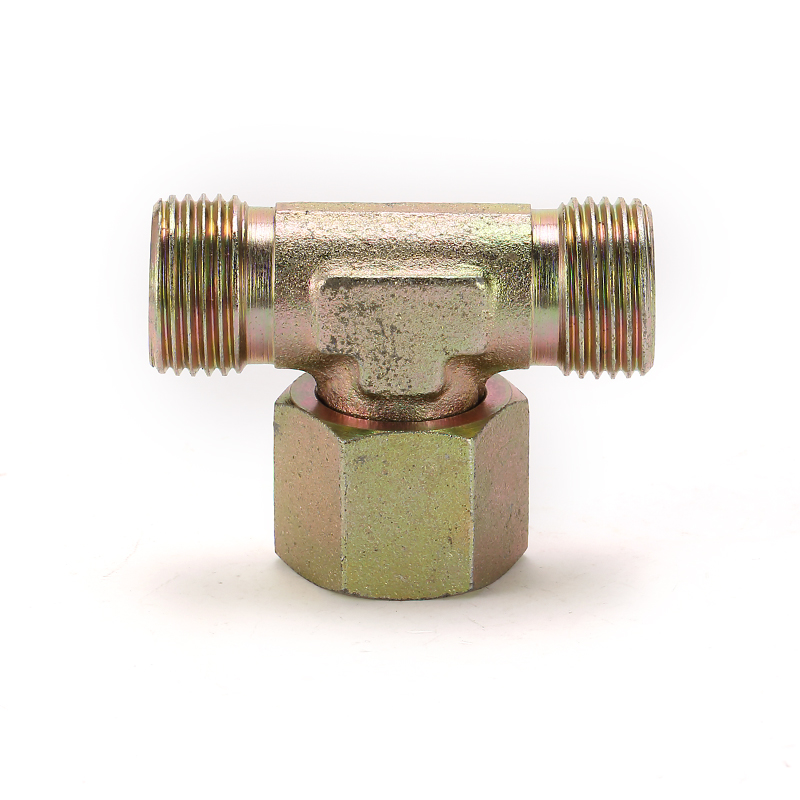

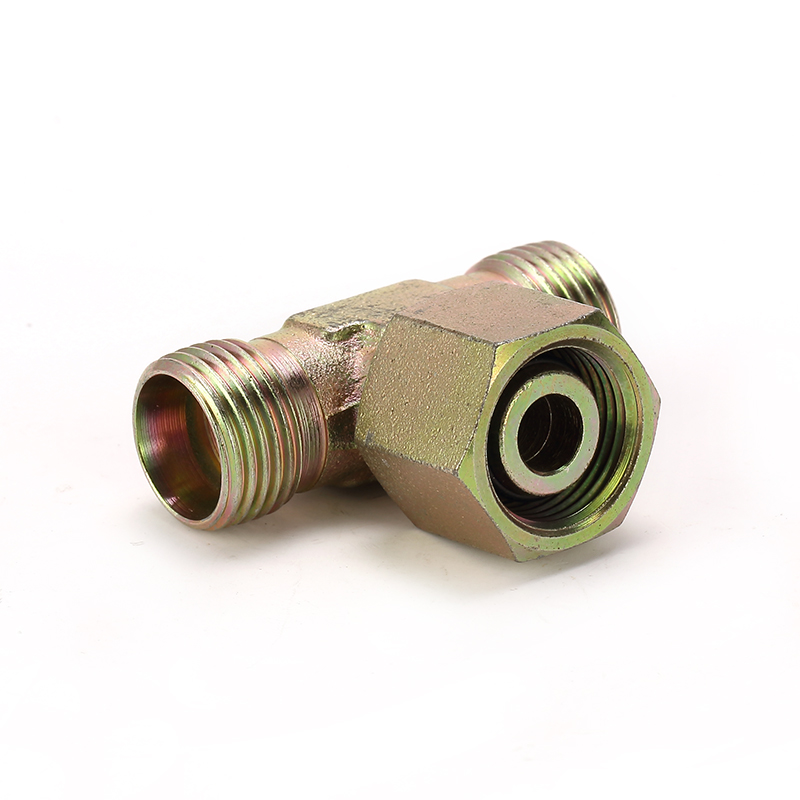

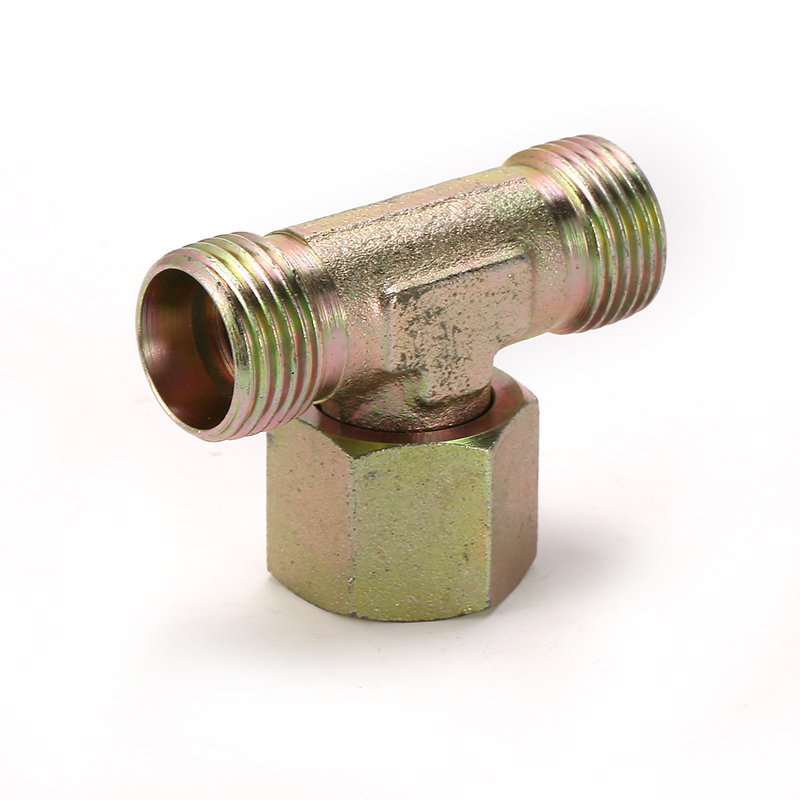

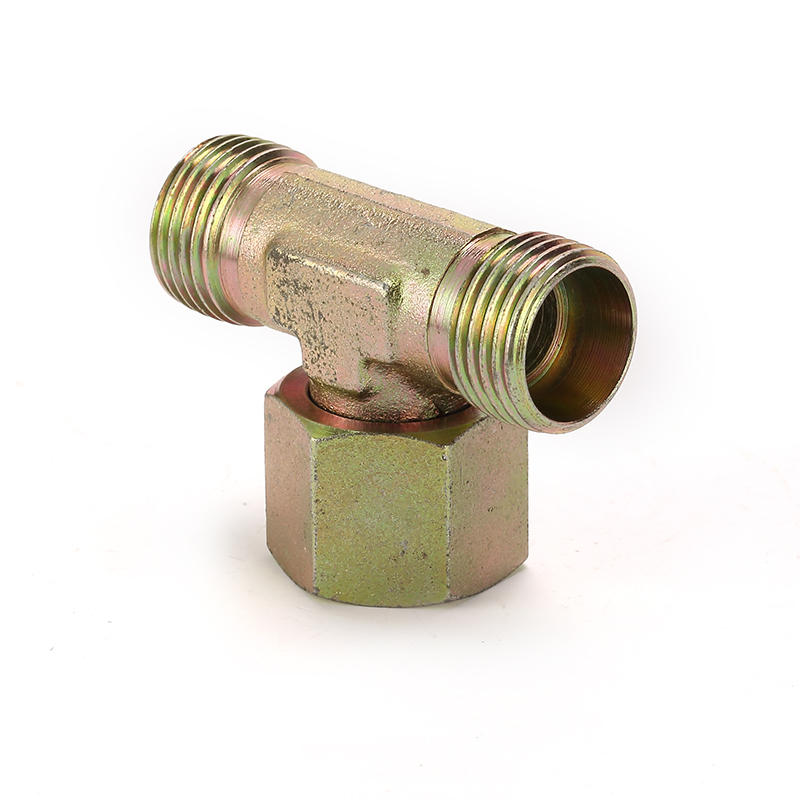

Branch Tee Fittings with Swivel NUT
PEHEL Hydraulic Model: PBC PBD/PBC-RN PBD-RN
