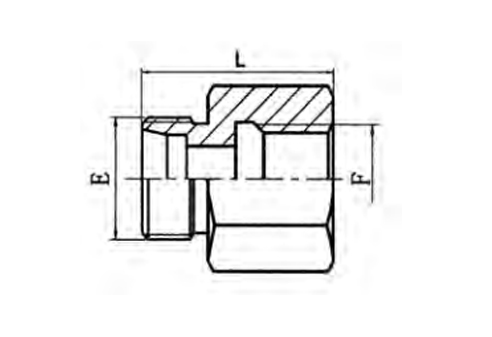

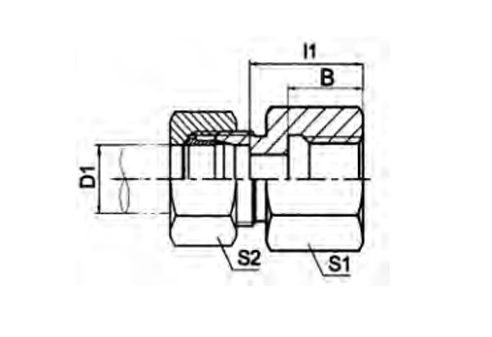

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 B I1 L S1 S2 5CM-12-10 M12X1.5 M10X1 6 12.5 19.5 26.5 14 14 25 L 5CM-14-12 M14X1.5 M12X1.5 8 17 24 31 17 17 5CM-16-14 M16X1.5 M14X1.5 10 17 25 32 19 19 5CM-18-16 M18X1.5 M16X1.5 12 17 26 33 22 22 5CM-22-18 M22X1.5 M18X1.5 15 17 28 35 24 27 5CM-26-22 M26X1.5 M22X1.5 18 19 29.5 37 30 32 5CM-30-26 M30X2 M26X1.5 22 21 34.5 42 32 36 16 L 5CM-36-33 M36X2 M33X2 28 24 37.5 45 41 41 5CM-45-42 M45X2 M42X2 35 26 40.5 51 55 50 5CM-52-48 M52X2 M48X2 42 28 42 53 60 60 5DM-14-12 M14X1.5 M12X1.5 6 17 26 33 17 17 63 S 5DM-16-14 M16X1.5 M14X1.5 8 17 26 33 19 19 5DM-18-16 M18X1.5 M16X1.5 10 17 26.5 34 22 22 5DM-20-18 M20X1.5 M18X1.5 12 17 27.5 35 24 24 5DM-22-20 M22X1.5 M20X1.5 14 19 31 39 27 27 5DM-24-22 M24X1.5 M22X1.5 16 19 30.5 39 30 30 40 S 5DM-30-27 M30X2 M27X2 20 22 34.5 45 36 36 5DM-36-33 M36X2 M33X2 25 24 37 49 41 46 5DM-42 M42X2 M42X2 30 26 41.5 55 55 50 5DM-52-48 M52X2 M48X2 38 28 43 59 60 60 25 S
Metric Female
PEHEL Hydraulic Model: P5CM P5DM/P5CM/RN P5DM/RN
QTY:
