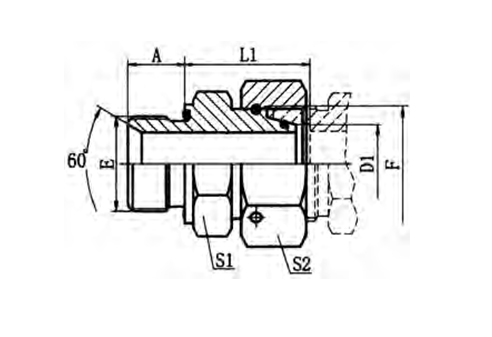

THREAD D1 DIMENSIONS PART NO. SEAL MPa E F TUBE O.D. A L1 S1 S2 2MC-10-12WD M10X1 M12X1.5 6 WD-B02 8 24.5 14 14 31.5 L 2MC-12-14WD M12X1.5 M14X1.5 8 WD-M12 12 26.5 17 17 2MC-14-16WD M14X1.5 M16X1.5 10 WD-B04 12 27.5 19 19 2MC-16-18WD M16X1.5 M18X1.5 12 WD-M16 12 30.5 22 22 2MC-18-22WD M18X1.5 M22X1.5 15 WD-M18 12 31.5 24 27 2MC-22-26WD M22X1.5 M26X1.5 18 WD-M22 14 31.5 27 32 2MC-26-30WD M26X1.5 M30X2 22 WD-B12 16 32.5 32 36 16 L 2MC-33-36WD M33X2 M36X2 28 WD-B16 18 35 41 41 2MC-42-45WD M42X2 M45X2 35 WD-B20 20 42.5 50 50 2MC-48-52WD M48X2 M52X2 42 WD-B24 22 46.5 55 60 2MD-12-14WD M12X1.5 M14X1.5 6 WD-M12 12 27 17 17 63 S 2MD-14-16WD M14X1.5 M16X1.5 8 WD-B04 12 29.5 19 19 2MD-16-18WD M16X1.5 M18X1.5 10 WD-M16 12 32 22 22 2MD-18-20WD M18X1.5 M20X1.5 12 WD-M18 12 34 24 24 2MD-20-22WD M20X1.5 M22X1.5 14 WD-M20 14 36.5 27 27 2MD-22-24WD M22X1.5 M24X1.5 16 WD-M22 14 37 27 30 40 S 2MD-27-30WD M27X2 M30X2 20 WD-B12 16 43 32 36 2MD-33-36WD M33X2 M36X2 25 WD-B16 18 48 41 46 2MD-42-42WD M42X2 M42X2 30 WD-B20 20 51 50 50 2MD-48-52WD M48X2 M52X2 38 WD-B24 22 60 55 60 31.5 S
Metric Thread with Captive Seal
PEHEL Hydraulic Model: P2MC-WD P2MD-WD
