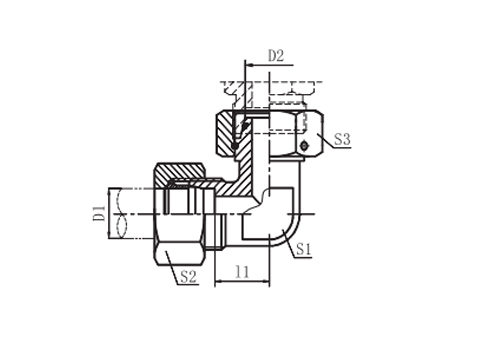

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 D2 I1 L1 L2 S1 S2 S3 2C9-12 M12×1.5 M12×1.5 6 6 12 19 24 12 14 14 25 L 2C9-14 M14X1.5 M14X1.5 8 8 14 21 25 12 17 17 2C9-16 M16X1.5 M16X1.5 10 10 15 22 27 14 19 19 2C9-18 M18X1.5 M18×1.5 12 12 17 24 29 17 22 22 2C9-22 M22×1.5 M22x1.5 15 15 21 28 33 19 27 27 2C9-26 M26×1.5 M26×1.5 18 18 23.5 31 36 24 32 32 2C9-30 M30×2 M30×2 22 22 27.5 35 42 27 36 36 16 L 2C9-36 M36×2 M36x2 28 28 30.5 38 44 36 41 41 2C9-45 M45×2 M45x2 35 35 34.5 45 52.6 41 50 50 2C9-52 M52x2 M52x2 42 42 40 51 58 50 60 60 2D9-14 M14×1.5 M14×1.5 6 6 16 23 25 12 17 17 63 S 2D9-16 M16×1.5 M16×1.5 8 8 17 24 26 14 19 19 2D9-18 M18×1.5 M18×1.5 10 10 17.5 25 29 17 22 22 2D9-20 M20×1.5 M20×1.5 12 12 21 28.5 31 17 24 24 2D9-22 22x1.5 M22×1.5 14 14 22 30 33 19 27 27 2D9-24 M24×1.5 M24×1.5 16 16 24.5 33 35 24 30 30 40 S 2D9-30 M30×2 M30x2 20 20 26.5 37 42 27 36 36 2D9-36 M36x2 M36×2 25 25 30 42 47 36 46 46 2D9-42 M42x2 M42x2 30 30 35.5 49 52 41 50 50 2D9-52 M52x2 M52X2 38 38 41 57 60.5 50 60 60 31.5 S

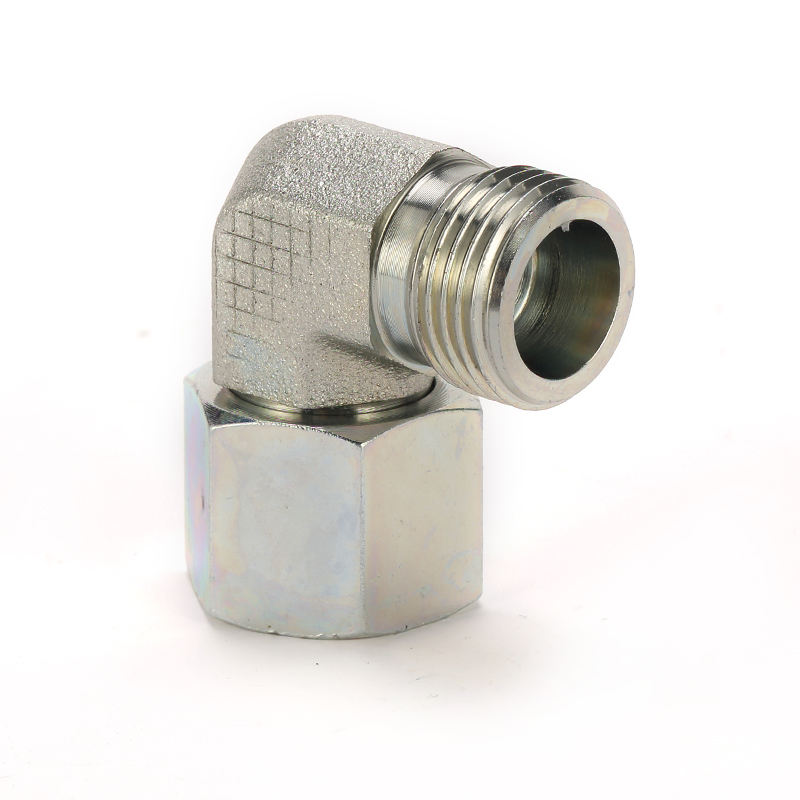

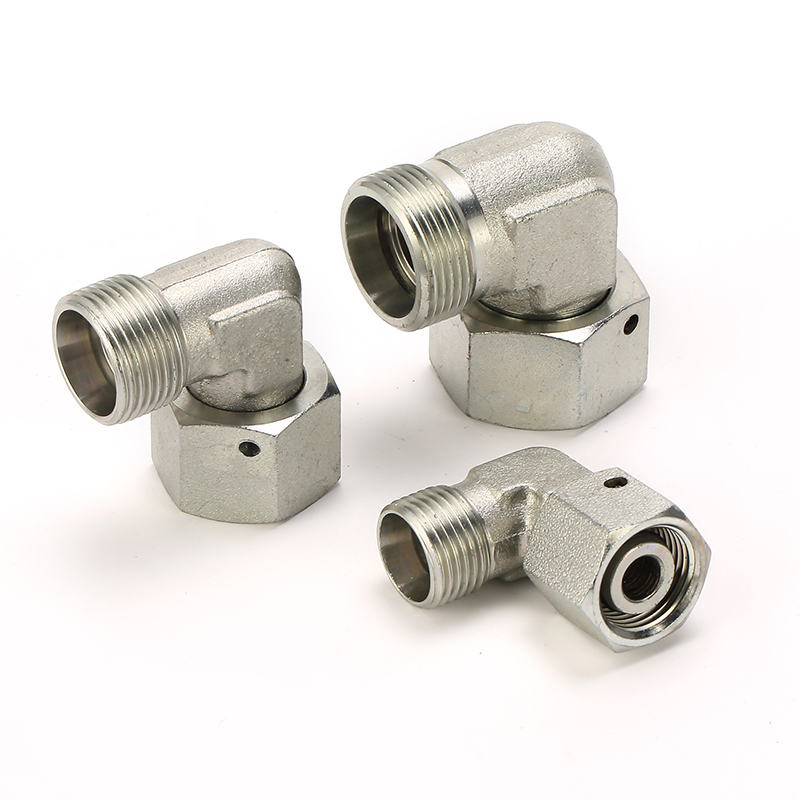

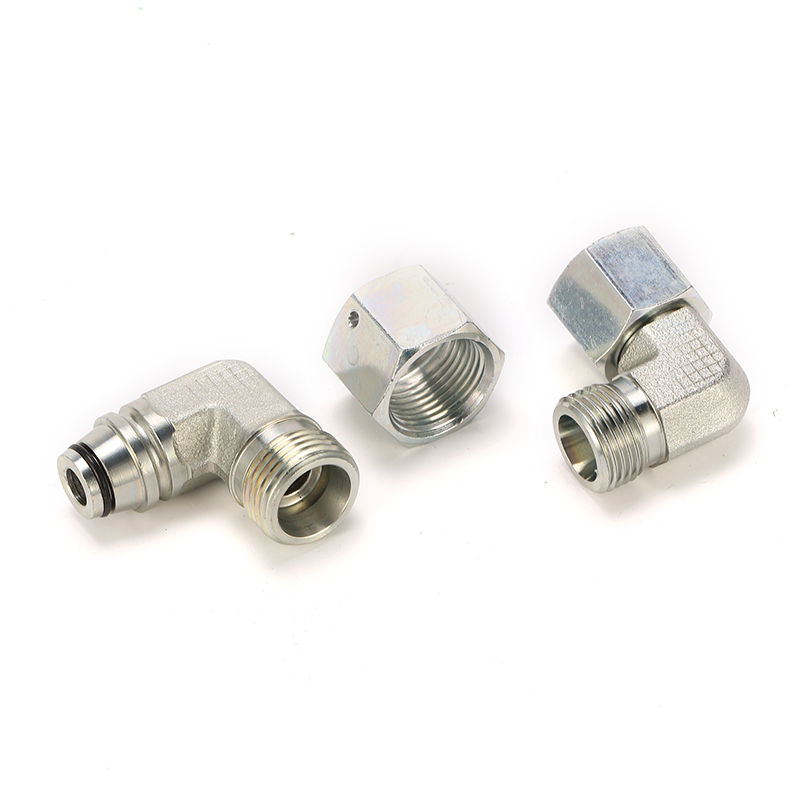

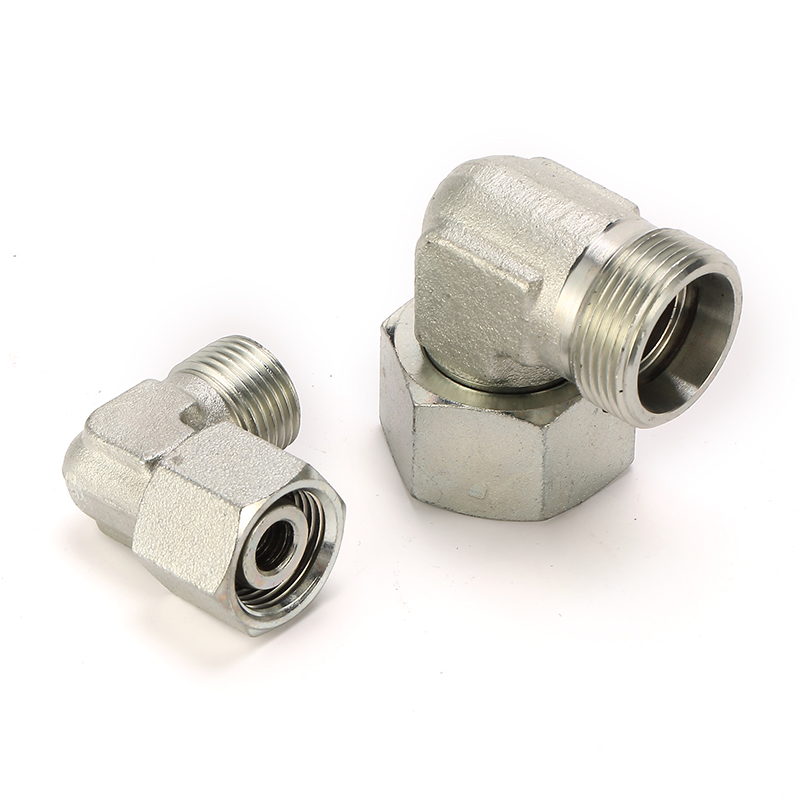

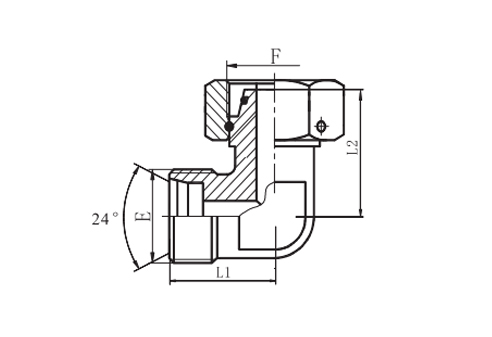

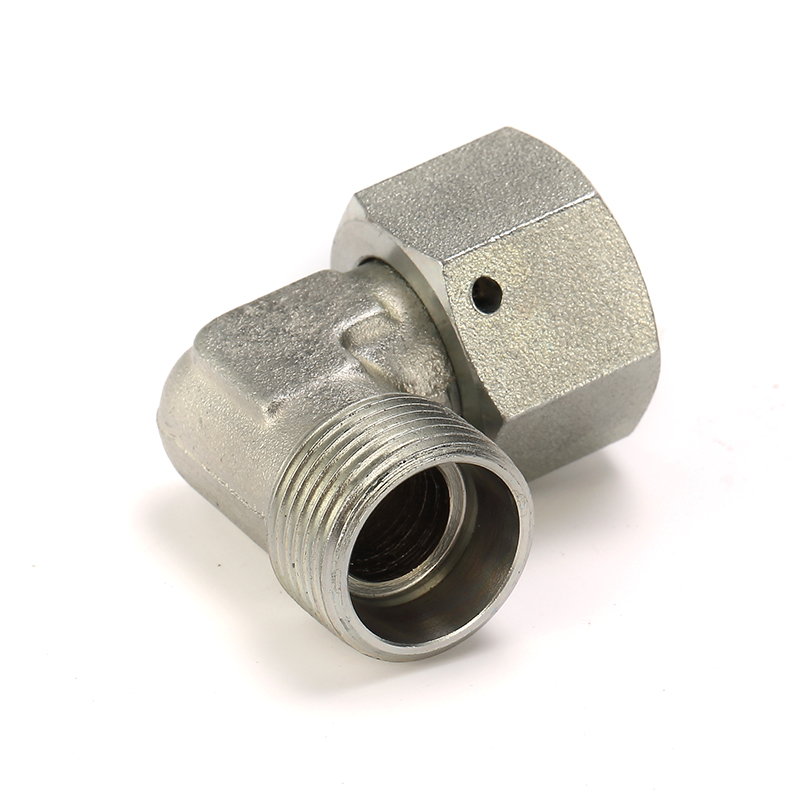

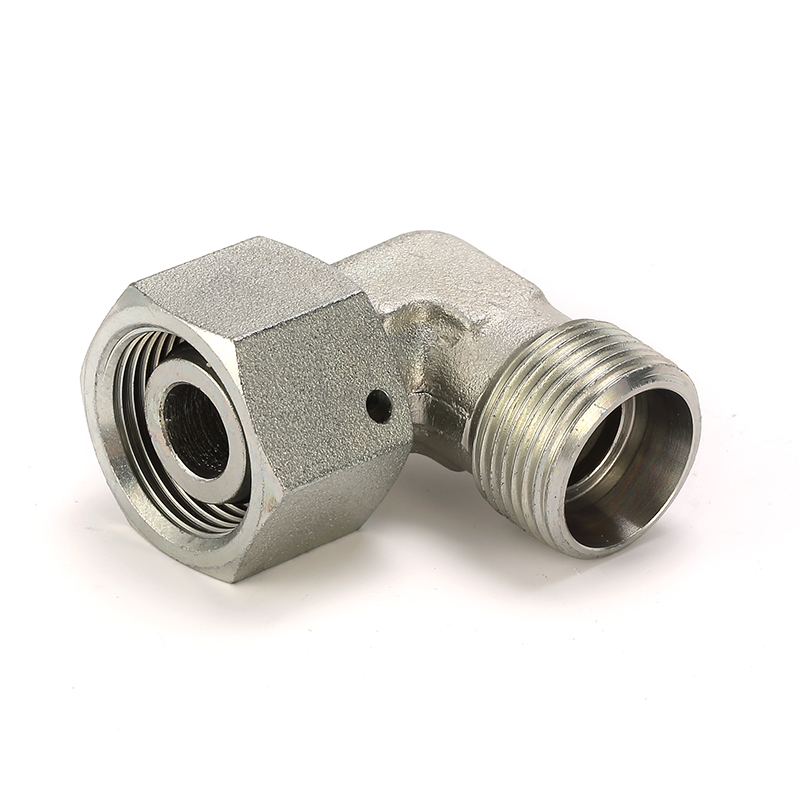

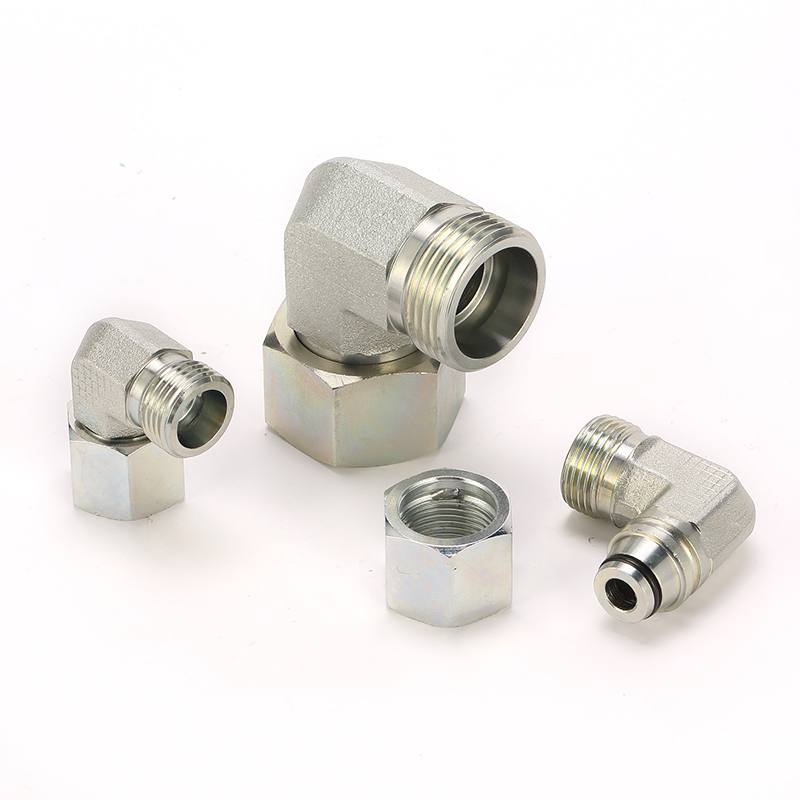

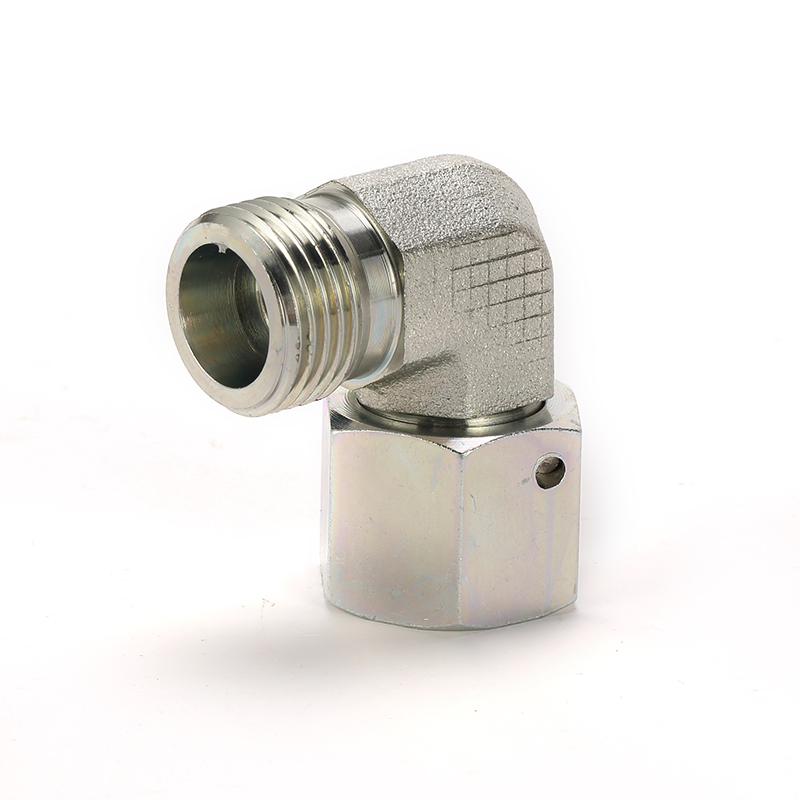

90° Elbow Educer Tube Adaptor with Swivel NUT
PEHEL Hydraulic Model: P2C9 P2D9/P2C9-RN P2D9-RN
QTY:
