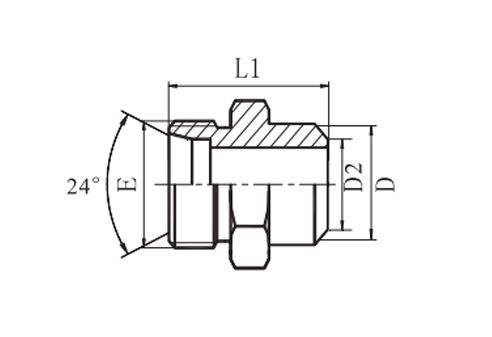

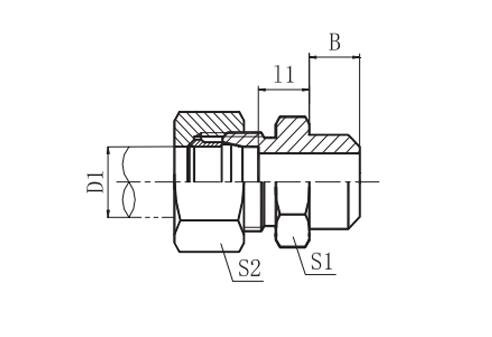

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E D1 D2 B D I1 L1 S1 S2 1CW-12-06 M12X1.5 6 6 7 10 7 21 12 14 31.5 L 1CW-14-08 M14X1.5 8 8 8 12 8 23 14 17 1CW-16-10 M16X1.5 10 10 8 14 10 25 17 19 1CW-18-12 M18X1.5 12 12 8 16 10 25 19 22 1CW-22-15 M22X1.5 15 15 10 19 11 28 22 27 1CW-26-18 M26X1.5 18 18 10 22 13.5 31 27 32 1CW-26-22 M26X1.5 18 22 12 27 11.5 31 27 32 16 L 1CW-30-22 M30X2 22 22 12 27 13.5 33 32 36 1CW-30-25 M30X2 22 25 12 29 13.5 33 32 36 1CW-36-28 M36X2 28 28 12 32 14.5 34 41 41 1CW-45-35 M45X2 35 35 14 40 18.5 43 46 50 1CW-52-42 M52X2 42 42 16 46 19 46 55 60 1DW-14-06 M14X1.5 6 6 7 11 11 25 14 17 63 S 1DW-16-08 M16X1.5 8 8 8 13 13 28 17 19 1DW-18-10 M18X1.5 10 10 8 15 12.5 28 19 22 1DW-20-12 M20X1.5 12 12 10 17 14.5 32 22 24 1DW-22-14 M22X1.5 14 14 10 19 16 34 24 27 1DW-24-16 M24X1.5 16 16 10 21 16.5 35 27 30 40 S 1DW-30-20 M30X2 20 20 12 26 17.5 40 32 36 1DW-36-25 M36X2 25 25 12 32 20 44 41 46 1DW-42-30 M42X2 30 30 14 37 20.5 48 46 50 1DW-52-38 M52X2 38 38 16 44 22 54 55 60 31.5 S

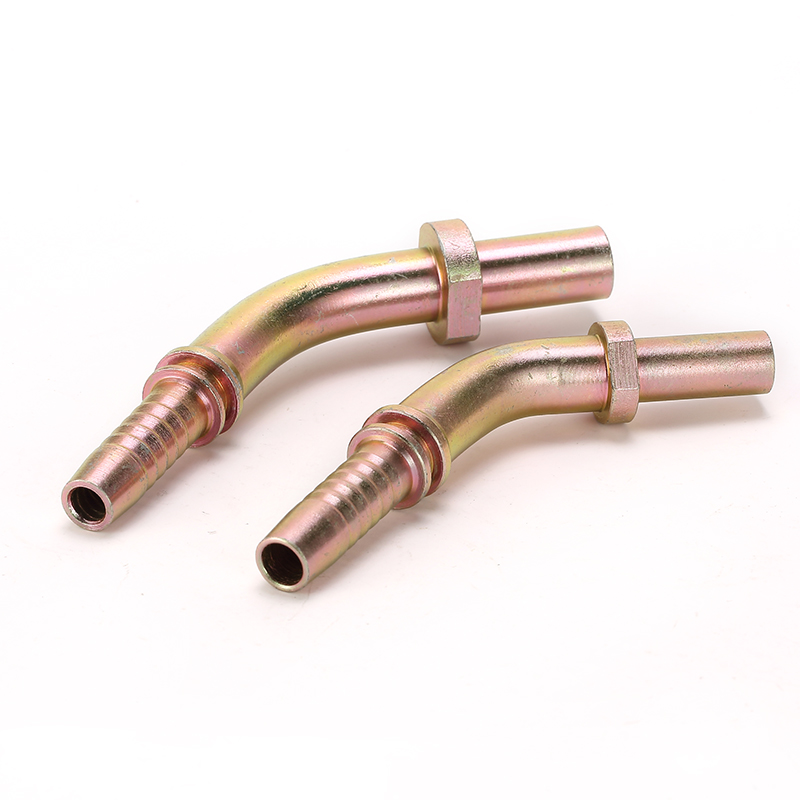

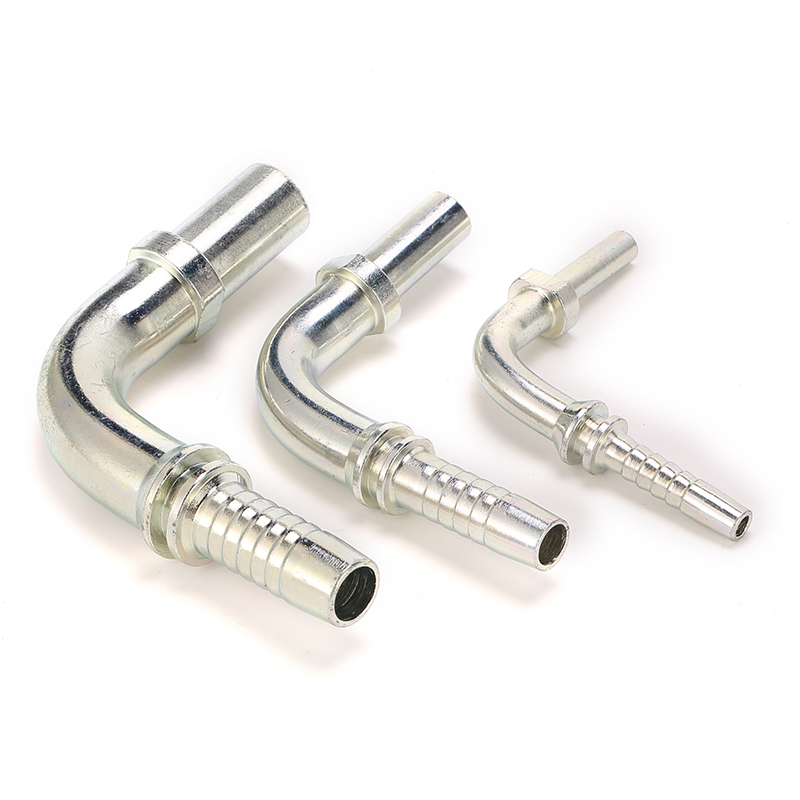

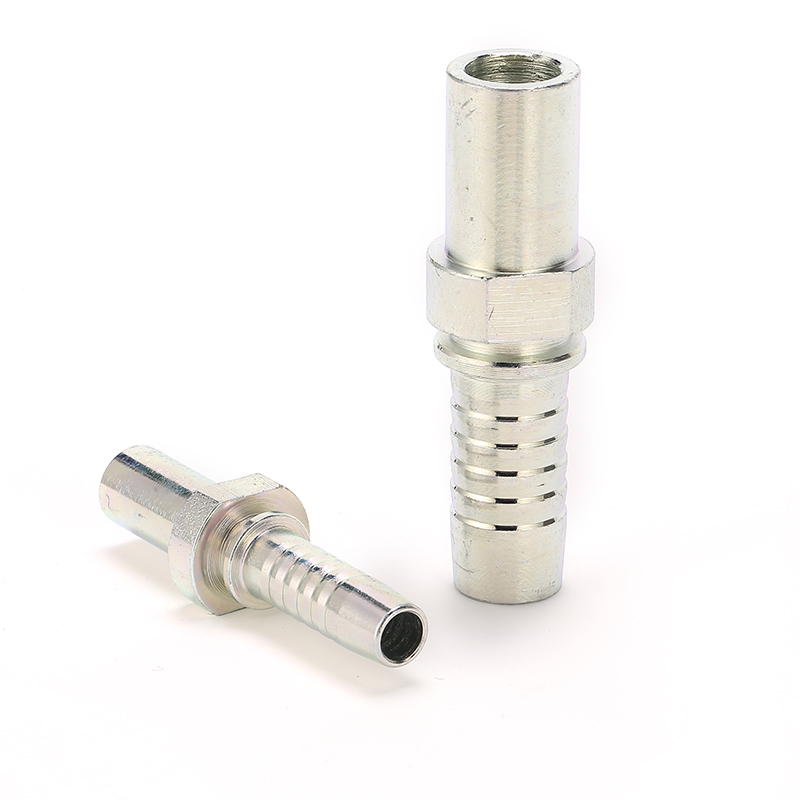

Hydraulic Weld Fittings – Carbon Steel & Stainless Steel Weld-On Tube Connectors
PEHEL Hydraulic Model: P1CW P1DW/P1CW-RN P1DW-RN
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Application: Hydraulic Tube Systems
About the item:
- 1.Strong welded connection – Hydraulic weld fittings create permanent, reliable joints for high-strength hydraulic tube systems.
- 2.Material options – Carbon steel or stainless steel weld fittings match standard and corrosion-resistant piping needs.
- 3.Corrosion-resistant finish – Silver zinc plating protects welded steel connectors in humid and outdoor environments.
- 4.Smooth flow design – Weld-on fittings reduce leak points compared with threaded joints.
- 5.Flexible branding – Supplied as Pehel or OEM steel pipe fittings for wholesale, distribution, and private-label projects.
- 6.Broad application – Suited to hydraulic systems in excavators, construction machinery, and industrial equipment.
