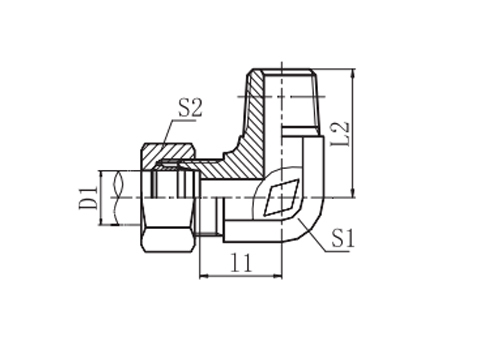

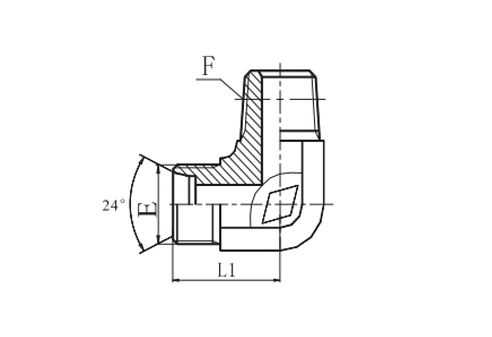

THREAD TUBE O.D. 尺 寸 DIMENSIONS PART NO. MPa E F D1 I1 L1 L2 S1 S2 1CN9-12-02 M12X1.5 z1/8"x27 6 13 20 21 11 14 25L 1CN9-12-04 M12×1.5 z1/4"X18 6 15.5 22.5 25.5 14 14 1CN9-14-04 M14X1.5 Z1/4"X18 8 15.5 22.5 25.5 14 17 1CN9-16-06 M16X1.5 z3/8"x18 10 19 26 31 19 19 1CN9-18-04 M18×1.5 Z1/4"X18 12 19 26 28 19 22 1CN9-18-06 M18×1.5 z3/8"X18 12 19 26 31 19 22 1CN9-18-08 M18×1.5 z1/2"X14 12 21 28 36.5 22 22 1CN9-22-06 M22×1.5 z3/8"×18 15 22 29 32.5 22 27 1CN9-22-08 M22×1.5 z1/2"×14 15 22 29 36.5 22 27 1CN9-26-08 M26×1.5 z1/2"×14 18 25.5 33 40 27 32 16L 1CN9-26-12 M26×1.5 Z314"X14 18 25.5 33 44 27 32 1CN9-30-12 M30×2 Z314"X14 22 29.3 36.8 45 30 36 1CN9-30-16 M30×2 Z1"X11.5 22 32 39.5 50 33 36 1CN9-36-16 M36x2 Z1"X11.5 28 33 40.5 51.5 36 41 1CN9-45-20 M45×2 Z1.1/4"×11.5 35 39 49.5 58.5 48 50 1CN9-52-24 M52x2 z1.1/2"×11.5 42 40.5 51.5 61 50 60 1DN9-14-04 M14x1.5 Z14"X18 6 17.5 24.5 25.5 14 17 40 L 1DN9-16-04 M16×1.5 z114"X18 8 18.5 25.5 26.5 16 19 1DN9-18-06 M18×1.5 z3/8"X18 10 19.5 27 31 19 22 1DN9-20-04 M20×1.5 Z1/4"X18 12 19.5 27 28 19 24 1DN9-20-06 M20×1.5 z3/8"X18 12 19.5 27 31 19 24 1DN9-22-06 M22×1.5 z3/8"x18 14 23 31 33 22 27 1DN9-22-08 M22×1.5 z1/2"x14 14 23 31 36.5 22 27 1DN9-24-06 M24×1.5 z3/8"x18 16 24 32.5 34 24 30 1DN9-24-08 M24X1.5 z1/2"×14 16 24 32.5 37.5 24 30 1DN9-30-08 M30×2 z1/2"X14 20 28 38.5 41 30 36 25 L 1DN9-30-12 M30×2 z314"X14 20 28 38.5 45 30 36 1DN9-36-12 M36x2 z314"X14 25 32.5 44.5 49 36 46 1DN9-36-16 M36×2 z1"×11.5 25 32.5 44.5 51.5 36 46 1DN9-42-16 M42×2 z1"X11.5 30 36 49.5 54.5 41 50 1DN9-42-20 M42×2 z1.1/4"×11.5 30 36 49.5 54.5 41 50 1DN9-52-20 M52x2 z1.1/4"×11.5 38 39.5 55.5 58.5 48 60 1DN9-52-24 M52×2 z1.1/2"×11.5 38 41.5 57.5 61 50 60
90° Elbow NPT Male
PEHEL Hydraulic Model: P1CN9 P1DN9/P1CN9-RN P1DN9-RN
QTY:
