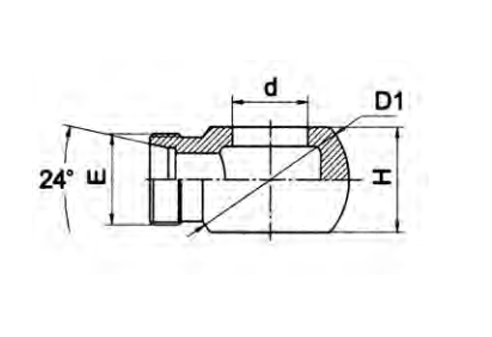

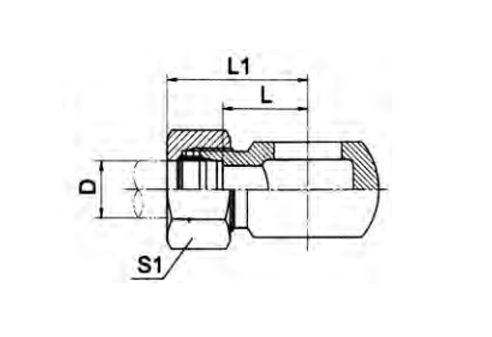

THREAD D DIMENSIONS PART NO. BOLT MPa E TUBE O.D. D1 d H L L1 S1 1CI-12-B02 M12X1.5 6 720B-02 24 9.9 16 15 30 14 16 L 1CI-14-B04 M14X1.5 8 720B-04 24 13.3 15 16 31 17 1CI-16-B04 M16X1.5 10 720B-04 24 13.3 15 18 33 19 1CI-18-B06 M18X1.5 12 720B-06 29 16.7 20 22 37 22 10 L 1CI-22-B08 M22X1.5 15 720B-08 38 21 25 26 41 27 1Cl-26-B08 M26X1.5 18 720B-08 38 21 25 27 42 32 1Cl-30-B12 M30X2 22 720B-12 48 26.5 26.5 31 47 36 1DI-14-B04 M14X1.5 6 720B-04 24 13.3 15 17.5 32 17 16 S 1DI-16-B04 M16X1.5 8 720B-04 24 13.3 15 19 34 19 1DI-18-B06 M18X1.5 10 720B-06 29 16.7 20 23 38 22 10 S 1DI-20-B06 M20X1.5 12 720B-06 29 16.7 20 24 39 24 1DI-22-B08 M22X1.5 14 720B-08 38 21 25 27 42 27 1DI-24-B08 M24X1.5 16 720B-08 38 21 25 28 43 30 1DI-30-B12 M30X2 20 720B-12 48 31 26.5 32 49 36
BSP Banjo Hydraulic Fitting, Carbon Steel & Stainless Steel Banjo Connector with BSP Thread
PEHEL Hydraulic Model: P1CI-B P1DI-B/P1CI-B/RN P1DI-B/RN
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating，Chrome plating, nickle plating
Connector Type: Banjo Connector
Thread Type: BSP Thread (BSPP / BSPT)
- 1.BSP Banjo connector with standard BSP thread, flexible 360° rotation for hydraulic piping layout
- 2.BSP Banjo hydraulic fitting available in carbon steel and stainless steel material options
- 3.Multiple surface finishes: silver zinc plating, chrome plating, nickel plating for corrosion resistance
- 4.Precisely machined BSP thread on this BSP banjo fitting to achieve leak-free hydraulic sealing
- 5.Support Pehel brand and OEM custom service for your BSP banjo connector orders
- 6.Compact banjo fitting design, ideal for tight installation space in hydraulic equipment
