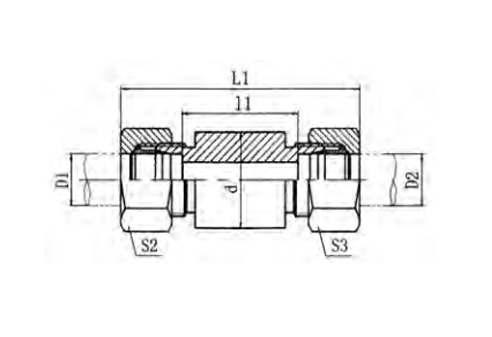

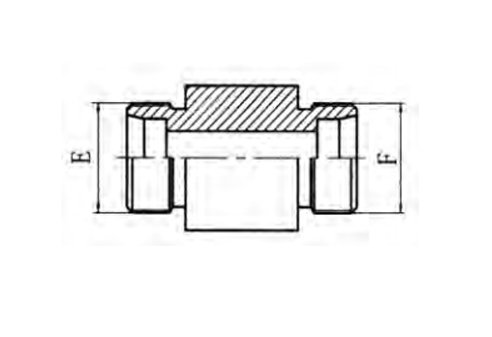

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 D2 I1 L1 d S2,S3 1C-12Y M12X1.5 M12X1.5 6 6 56 85 18 14 31.5 L 1C-14Y M14X1.5 M14X1.5 8 8 56 85 20 17 1C-16Y M16X1.5 M16X1.5 10 10 58 87 22 19 1C-18Y M18X1.5 M18X1.5 12 12 58 87 25 22 1C-22Y M22X1.5 M22X1.5 15 15 70 100 28 27 1C-26Y M26X1.5 M26X1.5 18 18 69 101 32 32 1C-30Y M30X2 M30X2 22 22 73 105 36 36 16 L 1C-36Y M36X2 M36X2 28 28 73 106 40 41 1C-45Y M45X2 M45X2 35 35 71 114 50 50 1C-52Y M52X2 M52X2 42 42 70 115 60 60 1D-14Y M14X1.5 M14X1.5 6 6 60 89 20 17 63 S 1D-16Y M16X1.5 M16X1.5 8 8 60 89 22 19 1D-18Y M18X1.5 M18X1.5 10 10 59 91 25 22 1D-20Y M20X1.5 M20X1.5 12 12 59 91 28 24 1D-22Y M22X1.5 M22X1.5 14 14 72 107 30 27 1D-24Y M24X1.5 M24X1.5 16 16 71 107 35 30 40 S 1D-30Y M30X2 M30X2 20 20 71 114 38 36 1D-36Y M36X2 M36X2 25 25 72 120 45 46 1D-42Y M42X2 M42X2 30 30 73 126 50 50 1D-52Y M52X2 M52X2 38 38 72 133 60 60 31.5 S
Bite Type Tube Fittings – Metric Thread Adapter for Hydraulic Tubing Connections
PEHEL Hydraulic Model: P1C-Y P1D-Y/P1C-Y/RN P1D-Y/RN
QTY:
Material:Carbon steel
Brand:Pehel, OEM
Color: Silver
Connector Type: Straight Adapter
Thread Type: Metric
Surface Treatment: CR3+ White Zinc Plated
About the item:
1.Superior Leak Prevention: The bite type design creates a positive metal-to-metal seal on the tube surface, eliminating leakage risks in high-pressure hydraulic tubing connections.
2.Precision Metric Threads: Each fitting features precisely machined metric threads for seamless integration with European-standard hydraulic components and manifolds.
3.Durable Material Options: Available in both carbon steel and stainless steel, these tube fittings offer excellent strength and corrosion resistance for long service life.
4.Vibration Resistance: These metric thread connectors maintain their grip under mechanical vibration and thermal cycling, preventing loosening over time.
5.Versatile Application Range: Suitable for oil, gas, and water systems, these carbon steel fittings handle working pressures up to 630 bar depending on size and material selection.
