THREAD
TUBE O.D.
DIMENSIONS
PART NO.
E
F
G
D1,D2,D3
A
B
C
S1
S2,S3,S4
AQ-14
M14X1.5
M14X1.5
M14X1.5
8
27
27
27
14
17
AQ-16
M16X1.5
M16X1.5
M16X1.5
10
29.5
29.5
29.5
16
22
AQ-18
M18X1.5
M18X1.5
M18X1.5
12
34
34
34
19
24
AQ-22
M22X1.5
M22X1.5
M22X1.5
14
37.5
37.5
37.5
22
27
AQ-27
M27X1.5
M27X1.5
M27X1.5
18
41.5
41.5
41.5
27
32
AQ-30
M30X1.5
M30X1.5
M30X1.5
20
42.8
42.8
42.8
30
36
AQ-33
M33X2
M33X2
M33X2
22
49.5
49.5
49.5
33
38

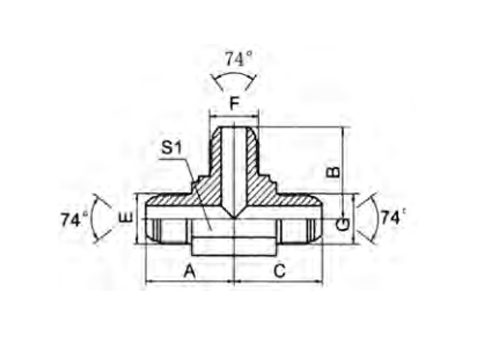

METRIC MALE 74° CONE TEE
PEHEL Hydraulic Model: PAQ/PAQ-RN
QTY:
