PART NO. THREAD O-RING DIMENSIONS E F G G A B C S1 S2 AJJG-04OG 7/16"X20 7/16"X20 G1/4"X19 O111 26.6 26.6 31.9 14 19 AJJG-05-05-04OG 1/2"X20 1/2"X20 G1/4"X19 O111 26.6 26.6 31.3 14 19 AJJG-05-06-04OG 1/2"X20 9/16"X18 G1/4"X19 O111 26.6 26.9 31.3 14 19 AJJG-06OG 9/16"X18 9/16"X18 G3/8"X19 O113 28.5 28.5 35.5 16 22 AJJG-06-06-04OG 9/16"X18 9/16"X18 G1/4"×19 O111 26.9 26.9 31.3 14 19 AJJG-08-08-06OG 3/4"X16 3/4"X16 G3/8"X19 O113 32 32 36.8 19 22 AJJG-08OG 3/4"X16 3/4"X16 G1/2"X14 O115 35 35 43.2 22 27 AJJG-10-10-08OG 7/8"X14 7/8"X14 G1/2"X14 O115 37.8 37.8 43.2 22 27 AJJG-12OG 1.1/16"X12 1.1/16"X12 G3/4"X14 O119 44 44 49.5 27 32 AJJG-16OG 1.5/16"X12 1.5/16"X12 G1"X11 O217 48.8 48.8 53 33 41

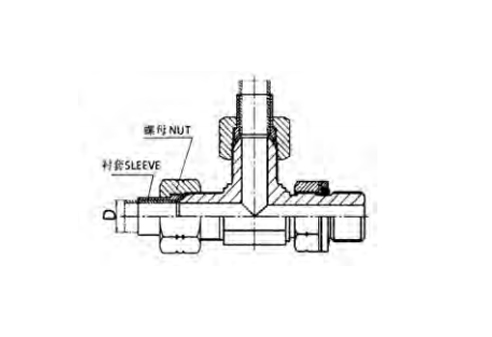

JIC MALE 74° CONE / BSP MALE O-RING RUN TEE
PEHEL Hydraulic Model: PAJJG-OG
QTY:
Material: Carbon steel, stainless steel
Brand: Pehel, OEM
Color: Silver color zinc plating
Connector Type:
Thread Type:
- About the item:
- 1.This JIC male 74° cone BSP male O-ring run tee adopts carbon steel & stainless steel for long service in high-pressure hydraulic systems.
- 2.Silver color zinc plating surface treatment makes our hydraulic run tee anti-corrosion and wear-resistant for long-term industrial use.
- 3.Dual JIC 74° cone male and BSP male O-ring thread design, this 3-way run tee realizes quick conversion of two mainstream hydraulic standards.
- 4.Pehel factory produces standard JIC BSP O-ring run tee and accepts OEM customized thread size, surface finish and bulk packaging.
- 5.Precision machined JIC 74° cone and BSP O-ring boss on the hydraulic run tee ensures metal-to-metal tight seal without oil leakage.
